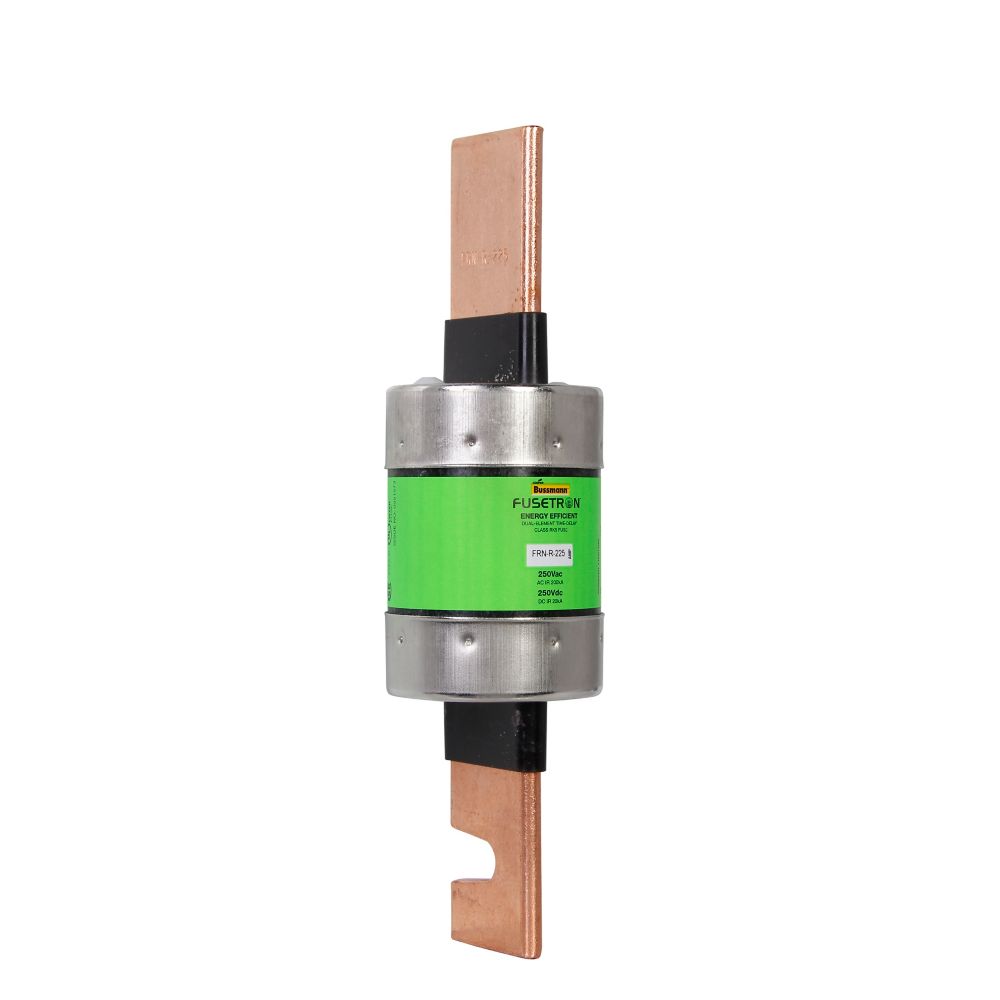

Eaton Bussmann FRN-R-225 225A Dual Element Fuse – Class RK5 – 250VAC / 125VDC – Blade End
Couldn't load pickup availability
Ask an expert
The Eaton Bussmann FRN-R-225 is a dual-element Class RK5 fuse designed for reliable overcurrent protection in industrial and commercial electrical systems. Rated at 225A, it offers time-delay performance, allowing temporary inrush currents while protecting against sustained overloads and short circuits. With blade end connections and a non-indicating design, this fuse ensures dependable operation in motor circuits and general-purpose applications.
Voltage and Rating
- Current Rating: 225A
- Voltage Rating: 250VAC / 125VDC
- Interrupt Rating: 200 kAIC @ 250VAC, 20 kAIC @ 125VDC
- Response Time: 10 seconds @ 500% load
Key Specifications
- Manufacturer: Eaton Bussmann
- Catalog Number: FRN-R-225
- Product Type: Fuse
- Class: Class RK5
- Number of Elements: Dual Element
- Fuse Indicator: Non-Indicating
- Connection Type: Blade End x Blade End
- Application: Motor Circuits, General Circuit Protection
Technical Specifications
- Time-Delay Performance: Suitable for inrush current handling
- Construction: Industrial Grade Fuse
- Packaging Type: Standard
- Compliance: CE Marked
Physical Details
- Product Length/Depth: 2 in
- Product Height: 0.56 in
- Product Width: 0.56 in
Product Data
- Manufacturer: Eaton Bussmann
- UPC: 051712507493
- Model Number: FRN-R-225
- Category: Fuses
- Subcategory: Class RK5 Fuse
- Product Weight: 0.5 lb
- Warranty: Not Applicable
- Type Circuit Breakers
- Vendor Eaton Bussmann
- Brand Eaton Bussmann
