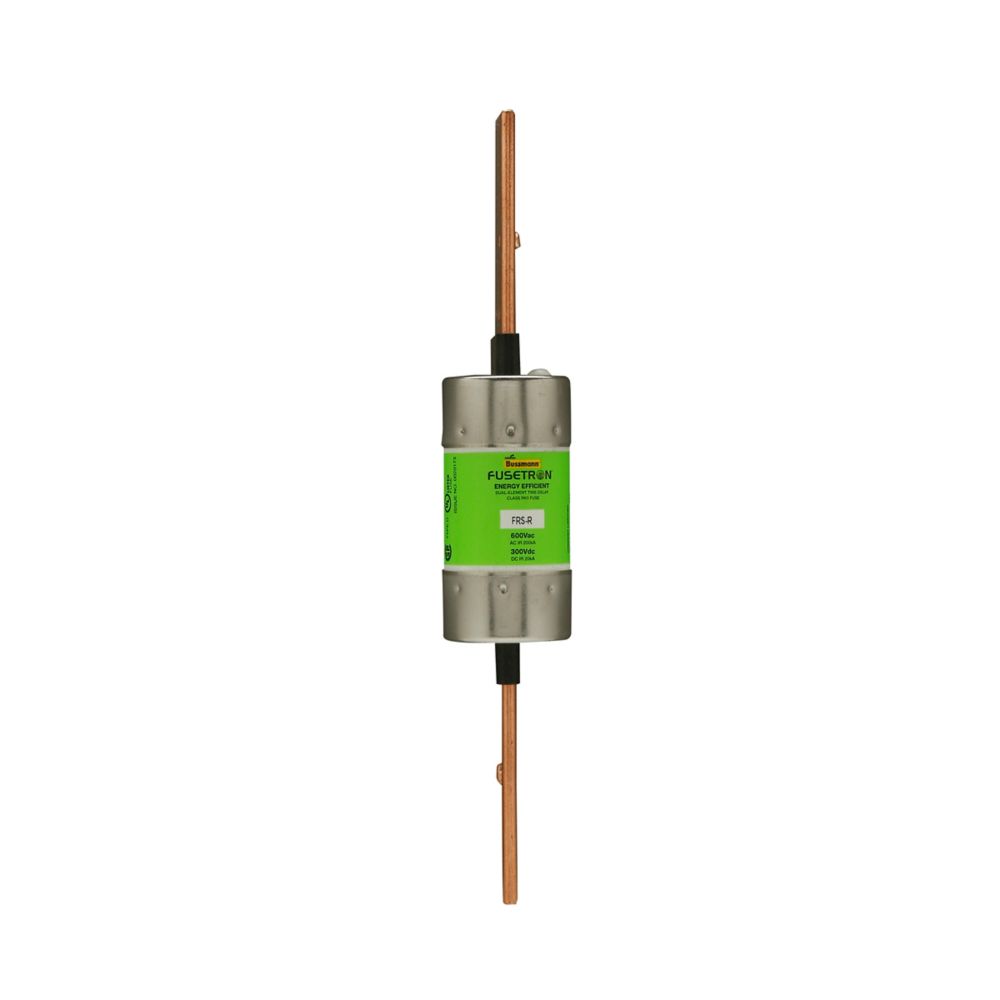

Eaton Bussmann FRS-R-200 200A Dual Element Fuse – Class RK5 – 600VAC / 300VDC – Blade End
Couldn't load pickup availability
Ask an expert
The Eaton Bussmann FRS-R-200 is a dual-element Class RK5 fuse designed for reliable overcurrent protection in industrial and commercial electrical systems. Rated at 200A, it provides time-delay performance to accommodate temporary inrush currents while protecting against sustained overloads and short circuits. Its blade end connection ensures secure installation and dependable performance in motor circuits and general-purpose power distribution applications.
Voltage and Rating
- Current Rating: 200A
- Voltage Rating: 600VAC / 300VDC
- Interrupt Rating: 200 kAIC @ 600VAC, 20 kAIC @ 300VDC
- Response Time: 10 seconds @ 500% load
Key Specifications
- Manufacturer: Eaton Bussmann
- Catalog Number: FRS-R-200
- Product Type: Fuse
- Class: Class RK5
- Number of Elements: Dual Element
- Fuse Indicator: Non-Indicating
- Connection Type: Blade End x Blade End
- Application: Motor Circuits, General Circuit Protection
Technical Specifications
- Time-Delay Function: Supports inrush current handling
- Construction Type: Industrial Grade Fuse
- Packaging Type: Standard
- Compliance: CE Marked
Physical Details
- Product Length/Depth: 9.63 in
- Product Height: 1.84 in
- Product Width: 1.84 in
Product Data
- Manufacturer: Eaton Bussmann
- UPC: 051712508483
- Model Number: FRS-R-200
- Category: Fuses
- Subcategory: Class RK5 Fuse
- Product Weight: 0.971 lb
- Type Circuit Breakers
- Vendor Eaton Bussmann
- Brand Eaton Bussmann
