Eaton Bussmann FWA-100B 100A High Speed Cylindrical Fuse – Class aR – 150VAC/DC – Stud Mount

In stock
SKU: FWA-100B GTIN/UPC: 051712577809
$75.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

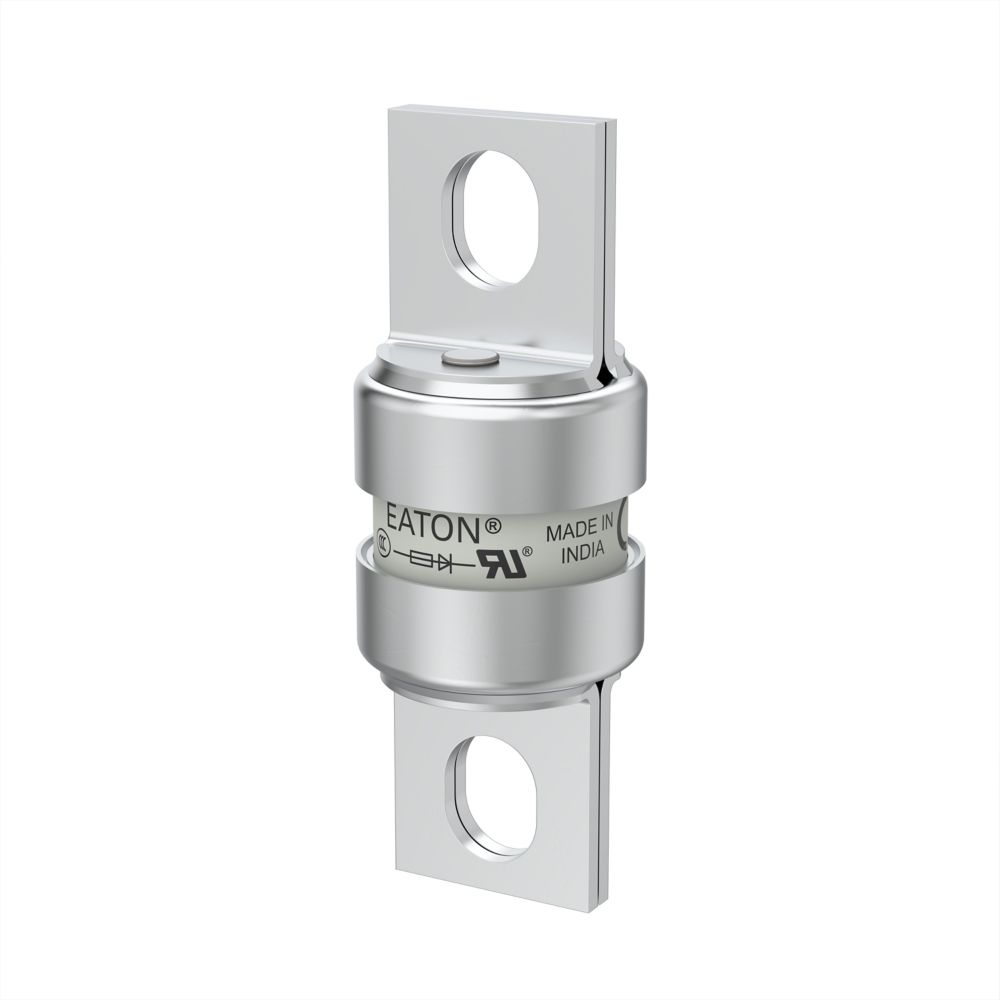

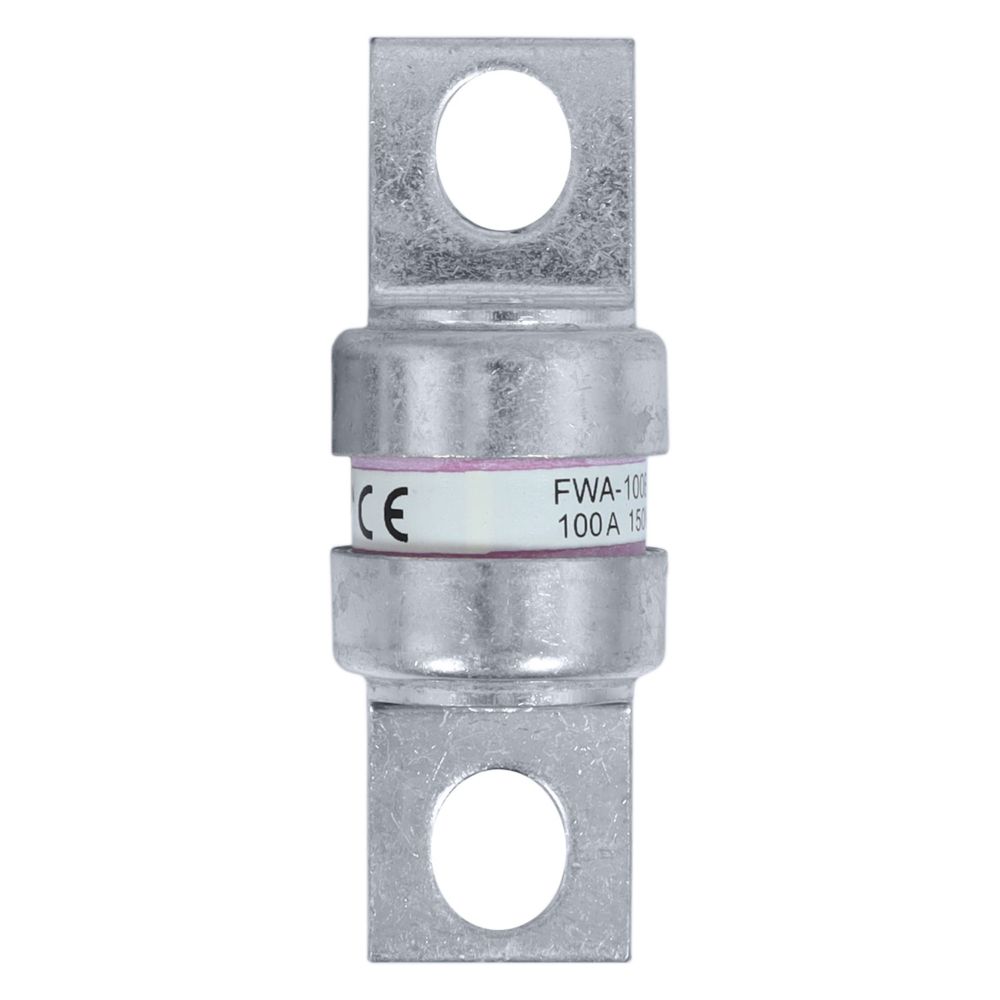

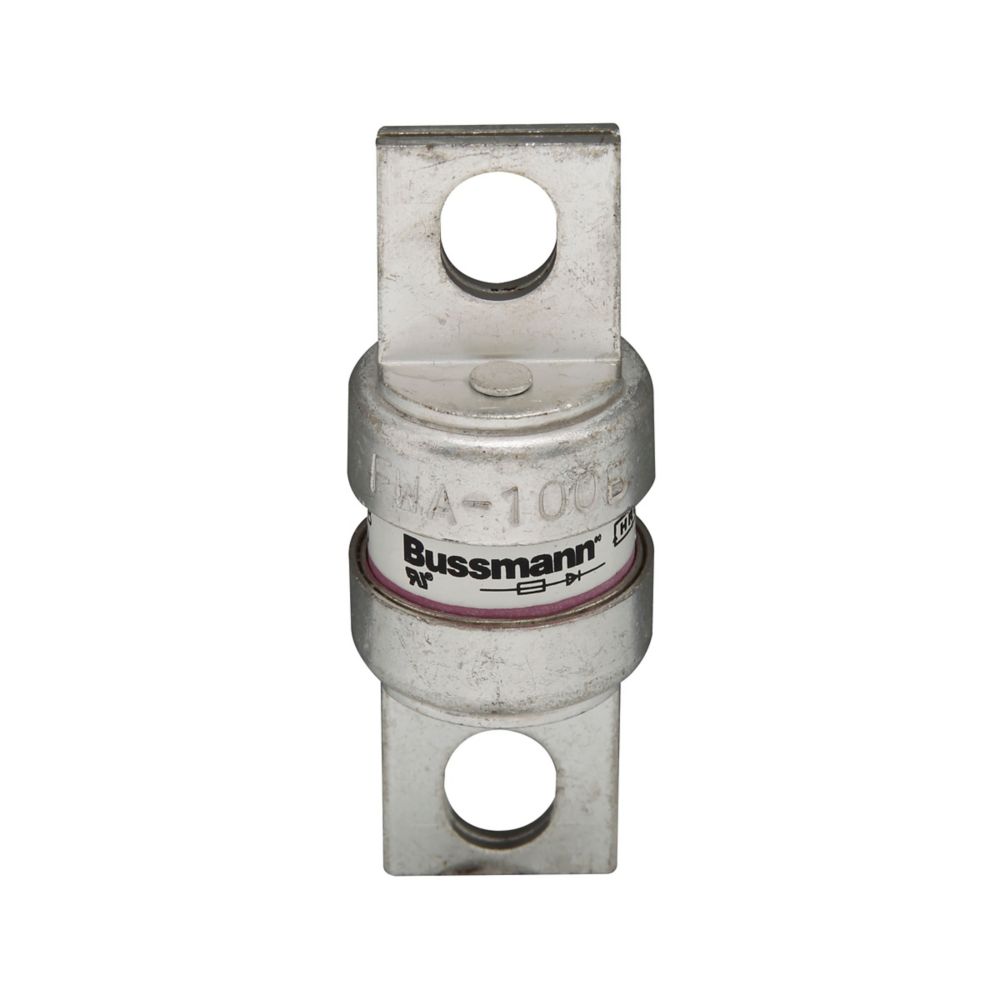

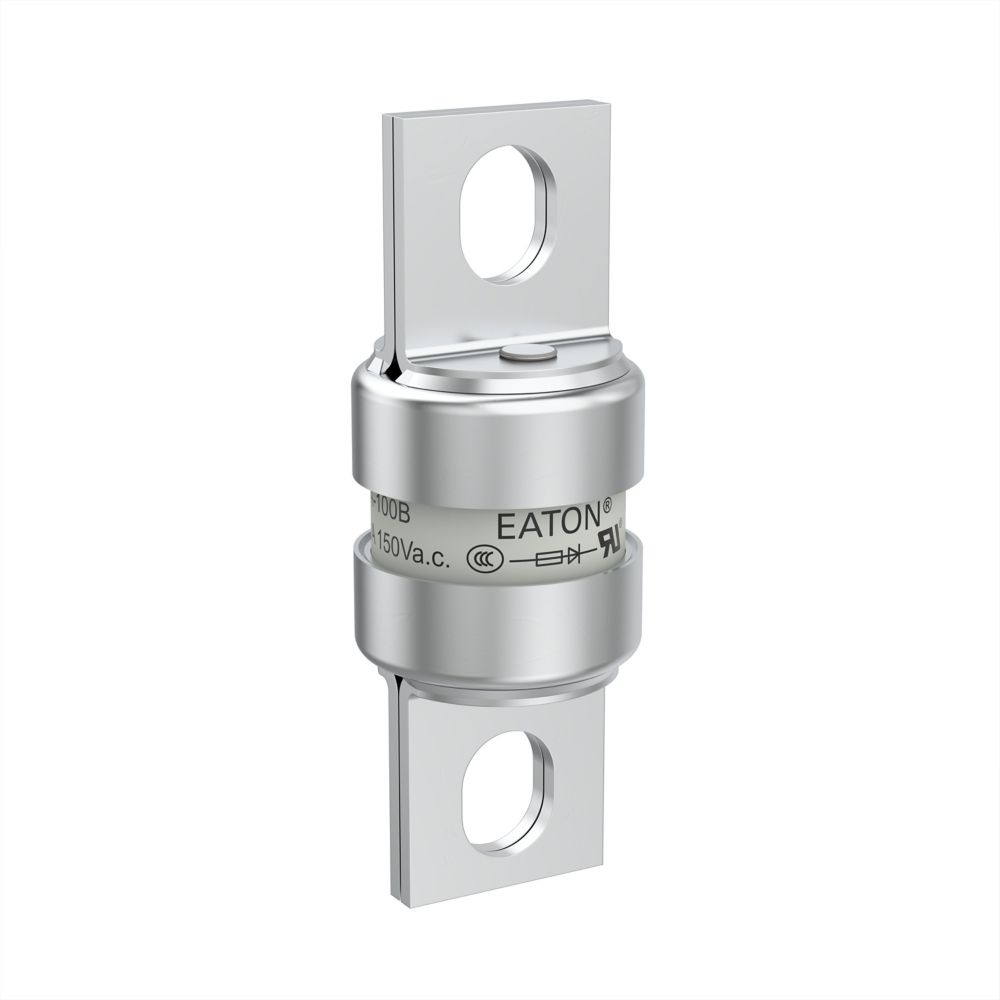

The Eaton Bussmann FWA-100B is a high-speed cylindrical fuse designed for semiconductor protection and high-performance power electronics applications. Rated at 100A with a 150VAC/DC capability, it provides ultra-fast fault clearing to protect sensitive components such as DC drives, rectifiers, and power converters. Built with a cylindrical body and center bolted tags, this Class aR fuse ensures reliable operation in demanding environments requiring precise and rapid protection.

Voltage and Rating

  • Current Rating: 100A
  • Voltage Rating: 150VAC / 150VDC
  • Breaking Capacity: Up to 100 kA
  • Interrupt Rating: 200 kAIC VAC, 100 kAIC @ 150VAC, 20 kAIC @ 150VDC

Key Specifications

  • Manufacturer: Eaton Bussmann
  • Catalog Number: FWA-100B
  • Product Type: High Speed Cylindrical Fuse
  • Class: Class aR
  • Utilization Category: aR (Semiconductor Protection)
  • Current Type: AC/DC
  • Fuse Indicator: Non-Indicating
  • Mounting Method: Stud Mount
  • Fuse Shape: Cylindrical, Center Bolted Tags
  • Application: Semiconductor Protection, DC Drives, Power Converters, Rectifiers

Technical Specifications

  • Rated Switching Capacity: 100A
  • Pre-Arc (I²T): 1200
  • Clearing (I²T): 1200
  • Watt Losses: 9 W
  • Mounting Dimension: M8
  • Center-to-Center Distance: 50.75 mm
  • Construction Size: Other
  • Insulated Metal Gripping Lugs (IMGL): No
  • Fuse System: IEC 60269 (Other)

Physical Details

  • Length/Depth: 26 mm
  • Height: 26 mm
  • Width: 72 mm
  • Weight: 82 g

Product Data

  • Manufacturer: Eaton Bussmann
  • UPC: 051712577809
  • EAN: 5027590020138
  • Global Catalog Number: FWA-100B
  • Category: High Speed Fuses
  • Packaging Type: Standard
  • Compliance: CE Marked, RoHS Compliant
  • Certifications: UL Recognized
  • Warranty: Not Applicable
  • Type Circuit Breakers
  • Vendor Eaton Bussmann
  • Brand Eaton Bussmann
