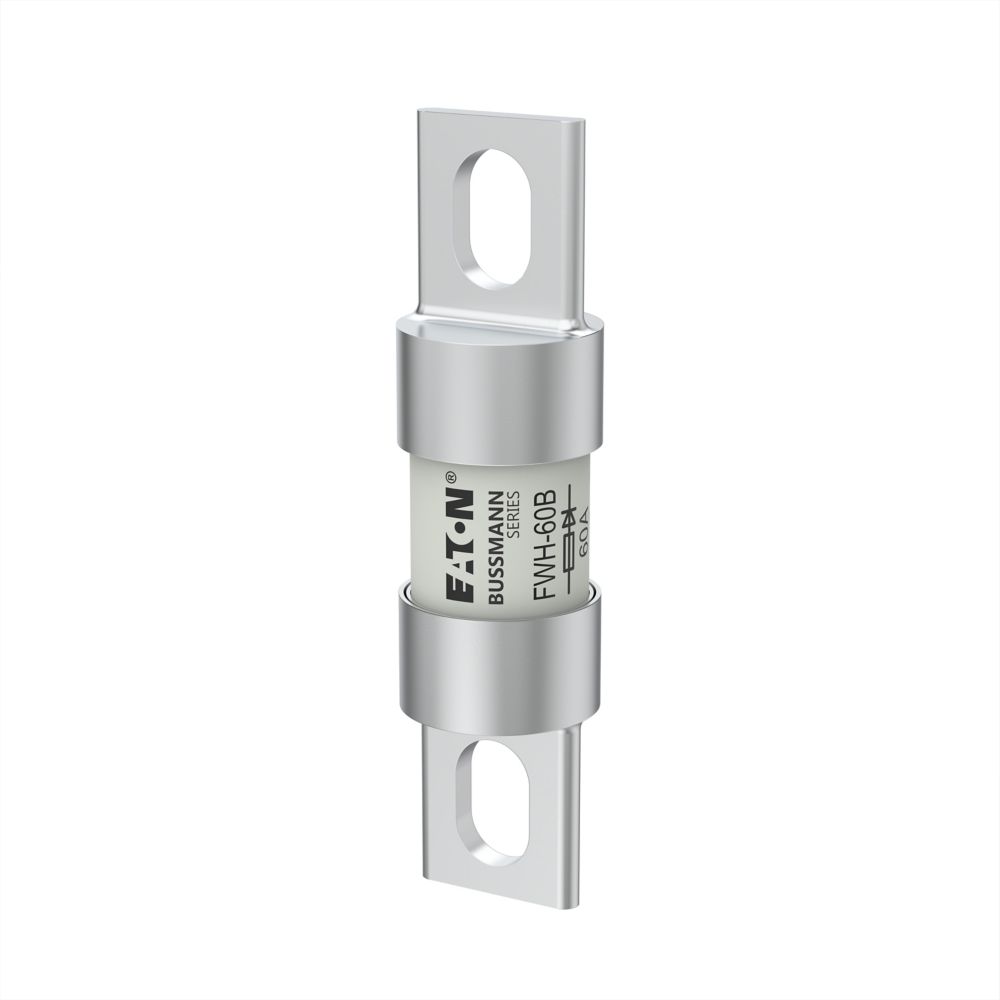

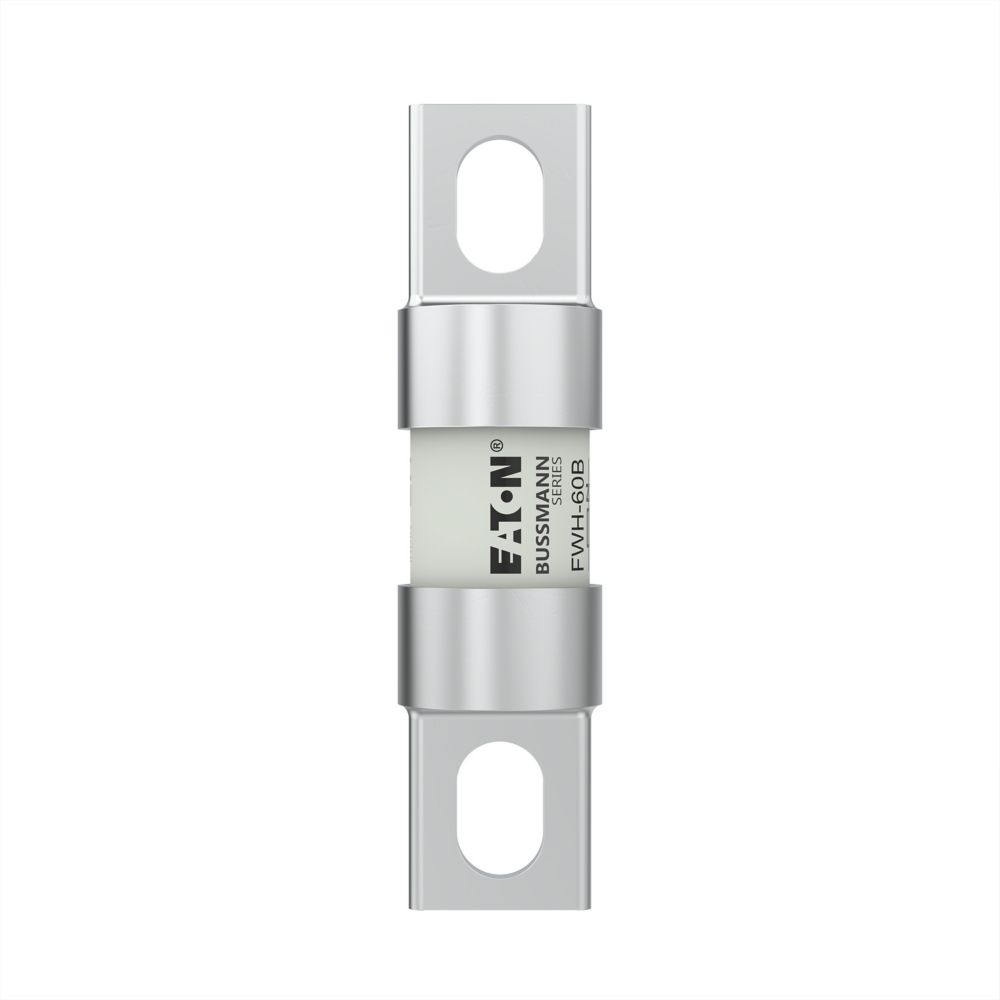

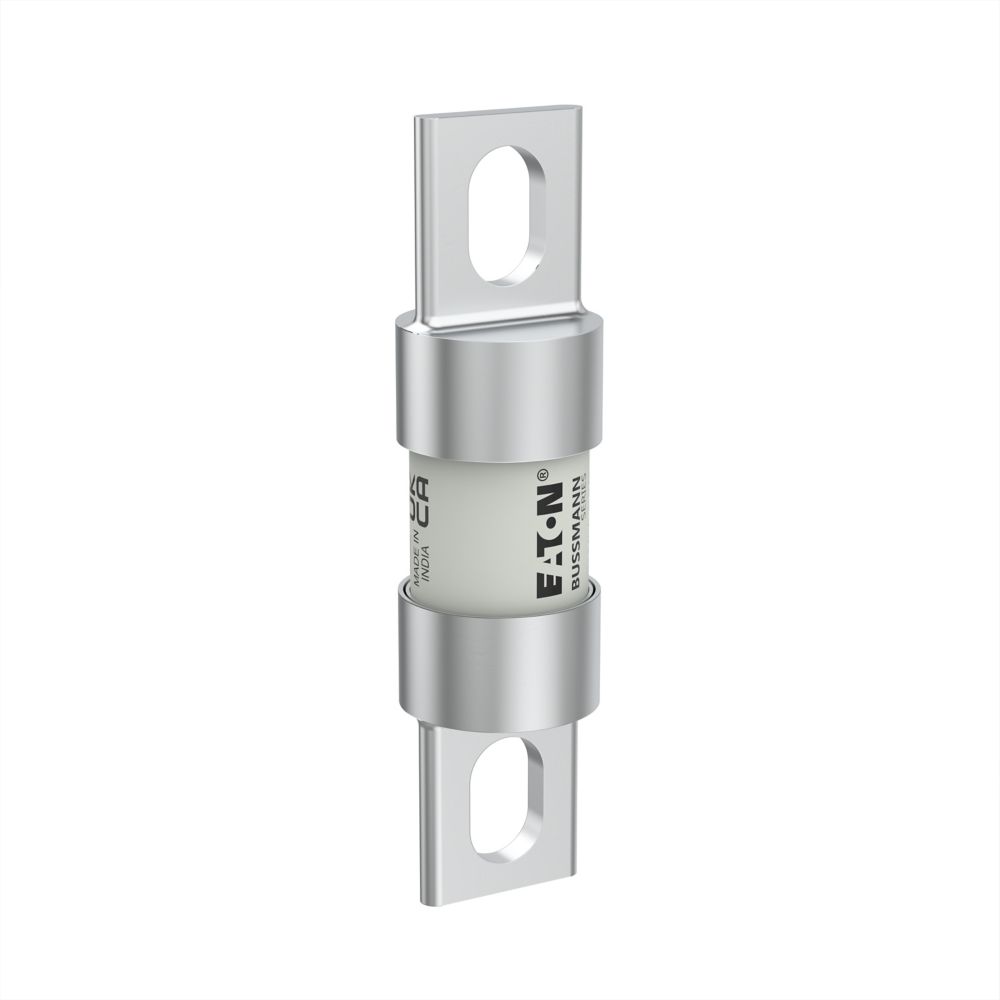

Eaton Bussmann FWH-60B 60A High Speed Cylindrical Fuse – Class aR – 500VAC/DC – Stud Mount

The Eaton Bussmann  FWH-60B is a high-speed cylindrical fuse designed for semiconductor protection in power electronic and industrial systems. Rated at 60A and 500VAC/DC, it provides fast-acting fault interruption to protect sensitive equipment such as DC drives, rectifiers, and power converters. Its cylindrical center-bolted tag construction ensures secure mounting and reliable performance in high-energy applications.

Voltage and Rating

• Current Rating: 60A
• Voltage Rating: 500VAC / 500VDC
• Breaking Capacity: 200 kA
• Interrupt Rating: 200 kAIC @ 1000VAC, 50 kAIC @ 500VDC
• Rated Switching Capacity: 200 kA

Key Specifications

• Manufacturer: Eaton Bussmann
• Catalog Number: FWH-60B
• Global Catalog: FWH-60B
• Model Code: 60A 500V AC HIGH SPEED TAG FUSE
• Product Type: High Speed Cylindrical Fuse
• Class: Class aR
• Utilization Category: aR (Semiconductor Protection)
• Current Type: AC/DC
• Fuse Indicator: Non-Indicating
• Mounting Method: Stud Mount
• Fuse Shape: Cylindrical, Center Bolted Tags
• Application: Semiconductor Protection, DC Common Bus, DC Drives, Power Converters, Rectifiers

Technical Specifications

• Pre-Arc (I²T): 210
• Clearing (I²T): 900
• Watt Losses: 9.9 W
• Mounting Dimension: M8
• Center-to-Center Distance: 60.75 mm
• Construction Size: Other
• Insulated Metal Gripping Lugs (IMGL): No
• Fuse Type: FWH-B
• IEC Fuse System: Other

Physical Details

• Length/Depth: 108 mm
• Height: 28 mm
• Width: 90 mm
• Weight: 63 g
• Fuse Shape: Cylindrical, Center Bolted Tags

Product Data

• Manufacturer: Eaton Bussmann
• UPC: 051712795784
• EAN: 5027590499712
• Category: High Speed Fuses
• Certifications: UL Recognized, CSA Certified
• Compliance: CE Marked
• Warranty: Not Applicable
