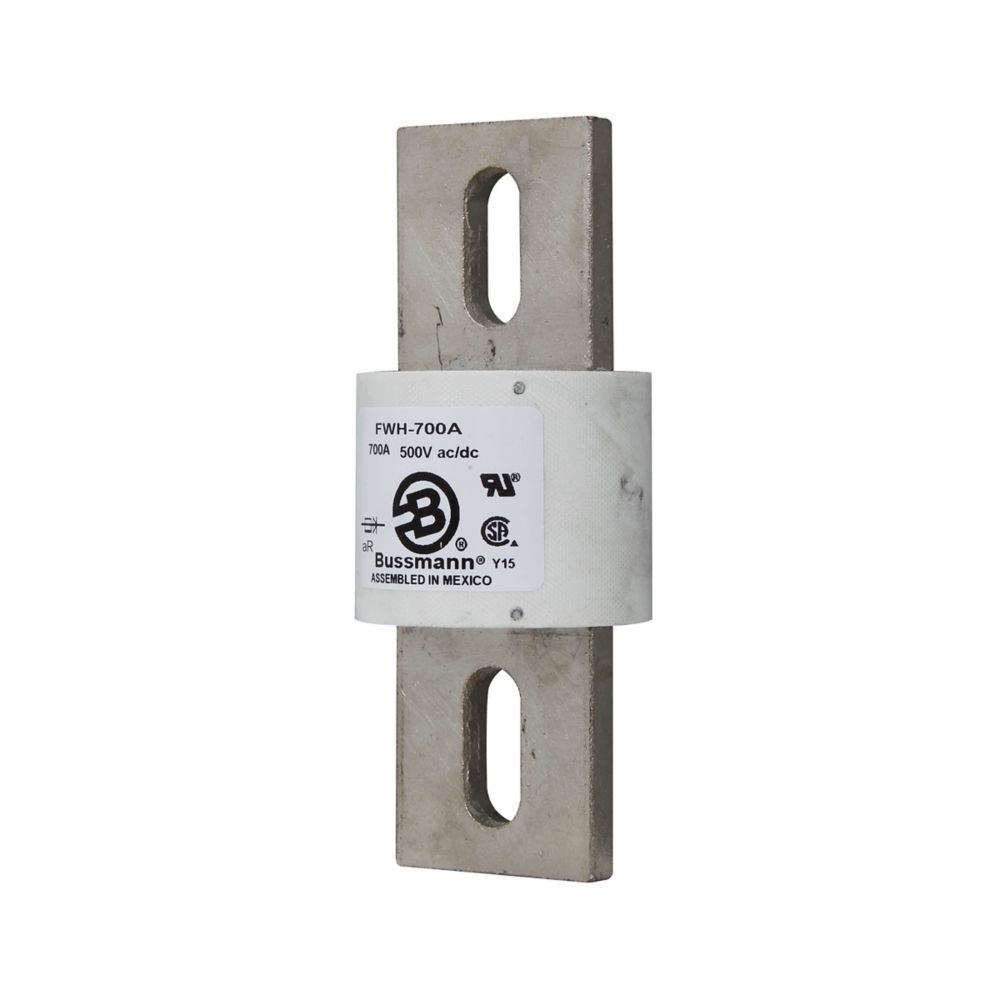

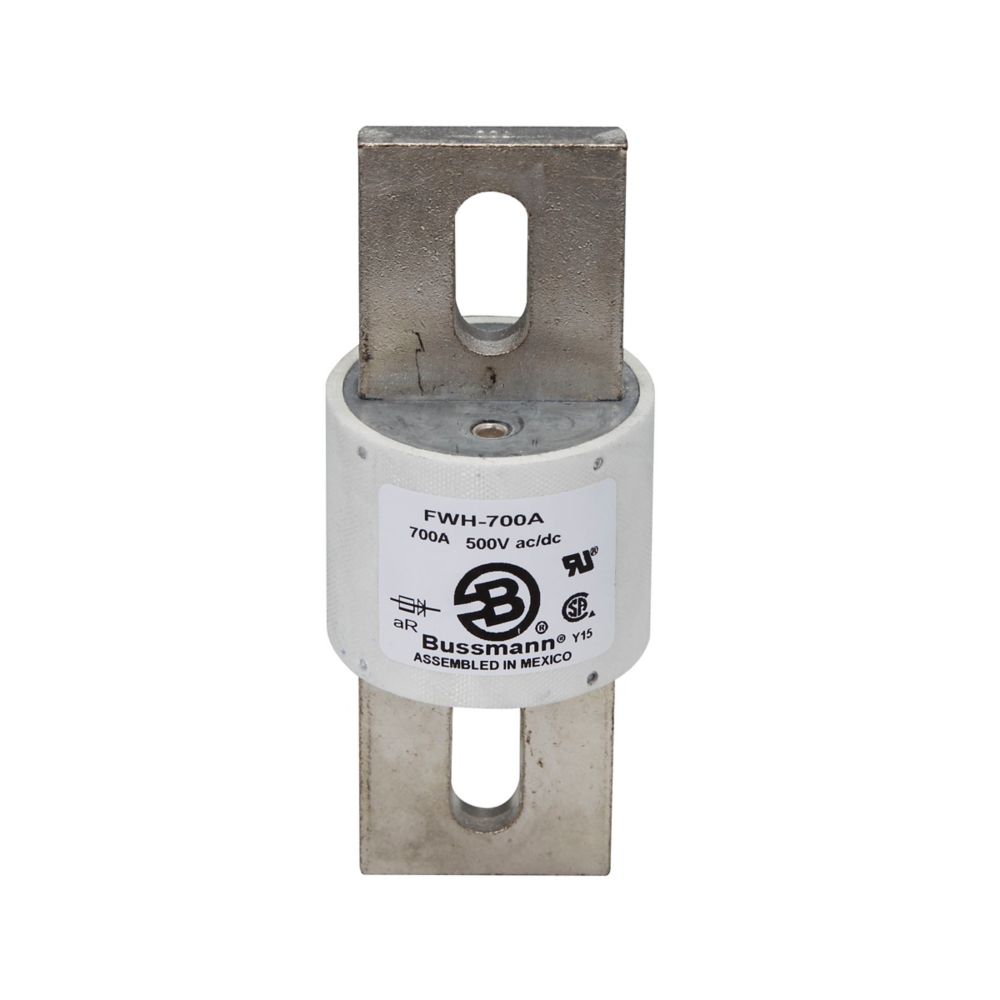

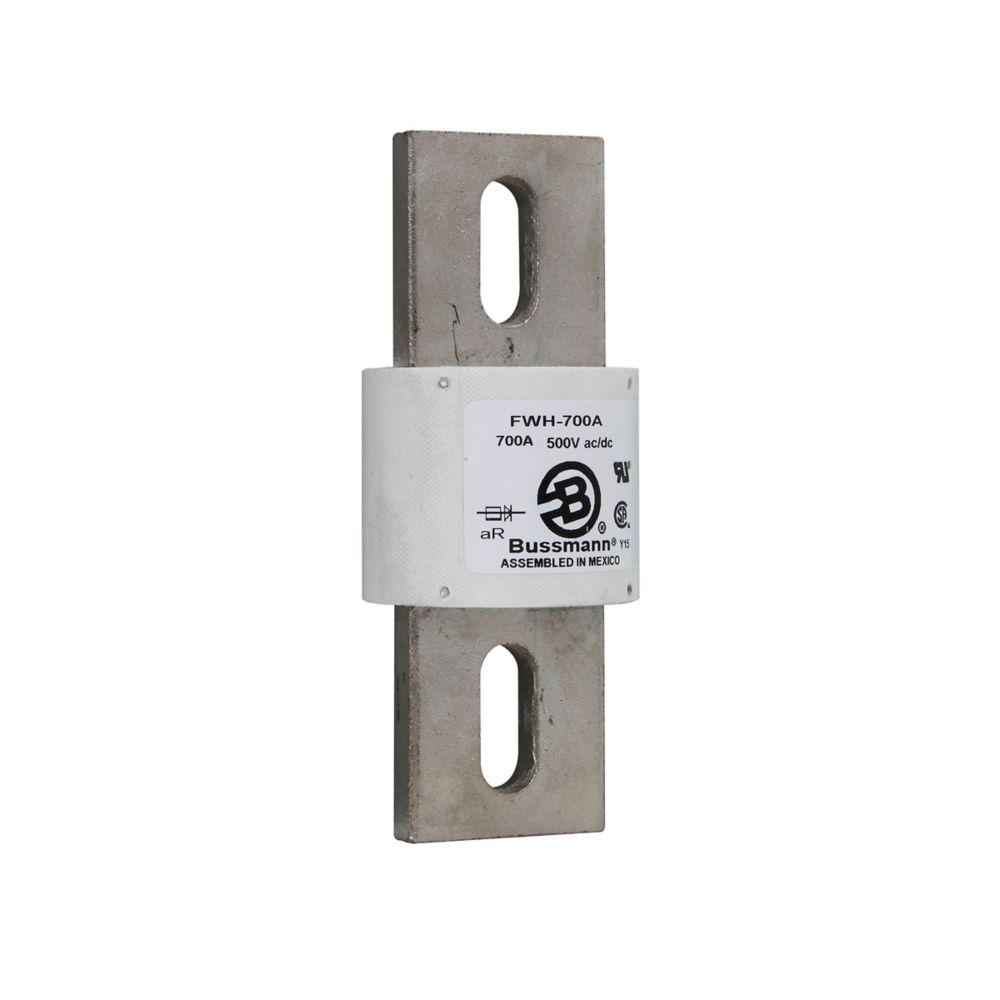

Eaton Bussmann FWH-700A 700A High Speed Fuse – Stud Mount – 1000VAC / 1000VDC

In stock
SKU: FWH-700A GTIN/UPC: 051712150231
$257.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton Bussmann FWH-700A is a high-speed fuse designed for semiconductor protection in high-power industrial and electronic systems. With a 700A RMS rating, it delivers rapid fault interruption to protect sensitive equipment such as DC drives, rectifiers, and power converters. Its stud-mount design with blade end connections ensures secure installation and reliable performance in demanding AC/DC applications.

Voltage and Rating

  • Current Rating: 700A RMS
  • Voltage Rating: 1000VAC / 1000VDC
  • Interrupt Rating: 200 kAIC @ 1000VAC, 50 kAIC @ 500VDC
  • Fuse Type: High Speed Fuse

Key Specifications

  • Manufacturer: Eaton Bussmann
  • Catalog Number: FWH-700A
  • Product Type: High Speed Fuse
  • Fuse Indicator: Non-Indicating
  • Mounting Method: Stud Mount
  • Connection Type: Blade End x Blade End
  • Application: Semiconductor Protection, DC Drives, Power Converters, Rectifiers
  • Compliance: CE Marked, RoHS Compliant

Technical Specifications

  • Watt Losses: 120 W
  • Interrupt Characteristics: Ultra-fast clearing for semiconductor protection
  • Electrical Performance: High fault current protection in AC/DC systems
  • Construction Type: Industrial-grade fuse element
  • Packaging Type: Standard

Physical Details

  • Product Length/Depth: 6.5 in
  • Product Height: 2.5 in
  • Product Width: 2.5 in
  • Product Weight: 1.895 lb

Product Data

  • Manufacturer: Eaton Bussmann
  • UPC: 051712150231
  • Category: High Speed Fuses
  • Certifications: UL Recognized, CSA Certified
  • Warranty: Not Applicable
  • Type Circuit Breakers
  • Vendor Eaton Bussmann
  • Brand Eaton Bussmann
