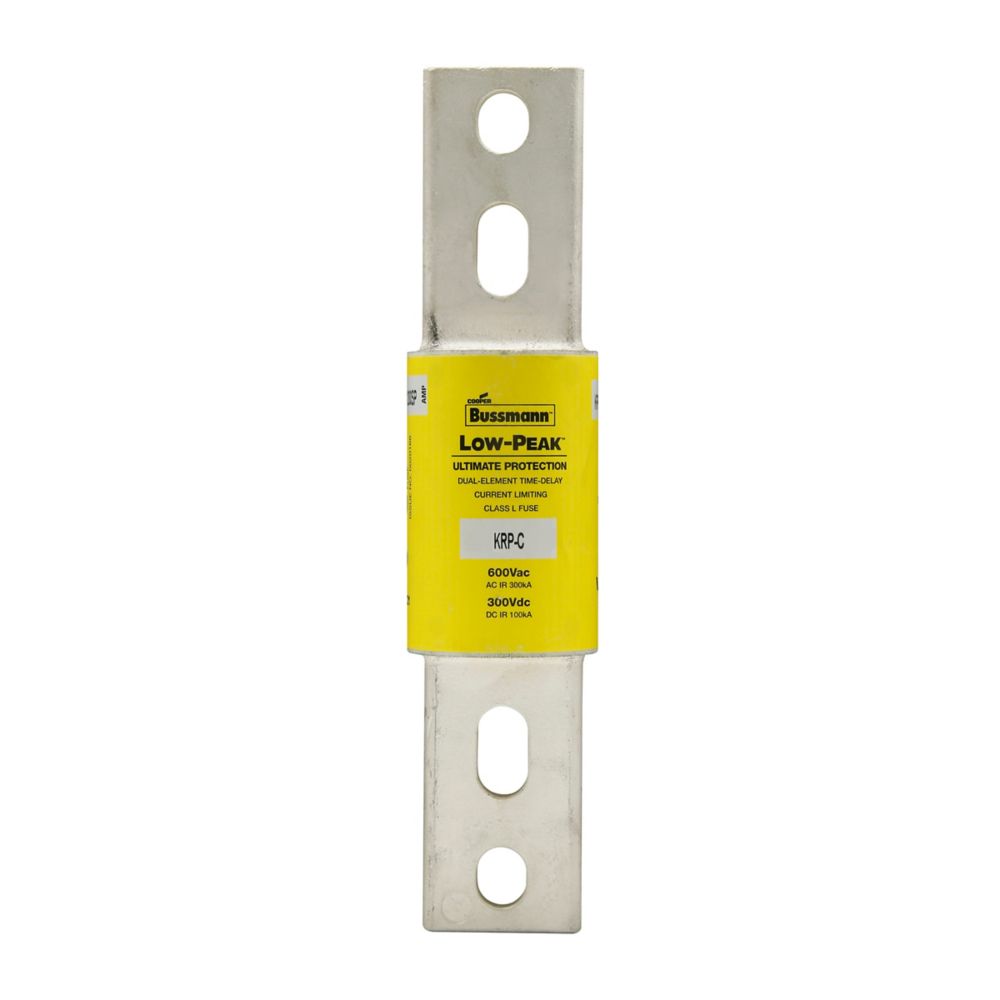

Eaton Bussmann KRP-C-1000SP 1000A Class L Fuse – Bolted Blade Connection
Couldn't load pickup availability
Ask an expert
The Eaton Bussmann KRP-C-1000SP is a Class L time-delay fuse engineered for high-capacity overcurrent protection in industrial power distribution systems. With a 1000A rating, it offers superior interrupting performance and controlled response time, making it ideal for protecting circuits with high inrush currents such as motors and transformers. Its bolted blade end connections ensure secure installation and reliable operation in demanding environments.
Voltage and Rating
- Current Rating: 1000A
- Voltage Rating: 600 Vac, 300 Vdc
- Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC Vdc
- Response Time: 4 sec at 500%
- Fuse Class: Class L
Key Specifications
- Manufacturer: Eaton Bussmann
- Catalog Number: KRP-C-1000SP
- Product Type: Fuse
- Fuse Indicator: Non-indicating
- Connection Type: Bolted Blade End x Bolted Blade End
- Compliance: RoHS Compliant, CE Marked
Physical Details
- Product Length/Depth: 10.75 in
- Product Height: 2.78 in
- Product Width: 2.78 in
- Product Weight: 0.001 lb
- Packaging Type: Standard
Product Data
- UPC: 051712605106
- Category: Industrial High-Performance Fuses
- Application: Motor circuits, transformers, and power distribution systems
- Warranty: Not Applicable
- Type Circuit Breakers
- Vendor Eaton Bussmann
- Brand Eaton Bussmann
