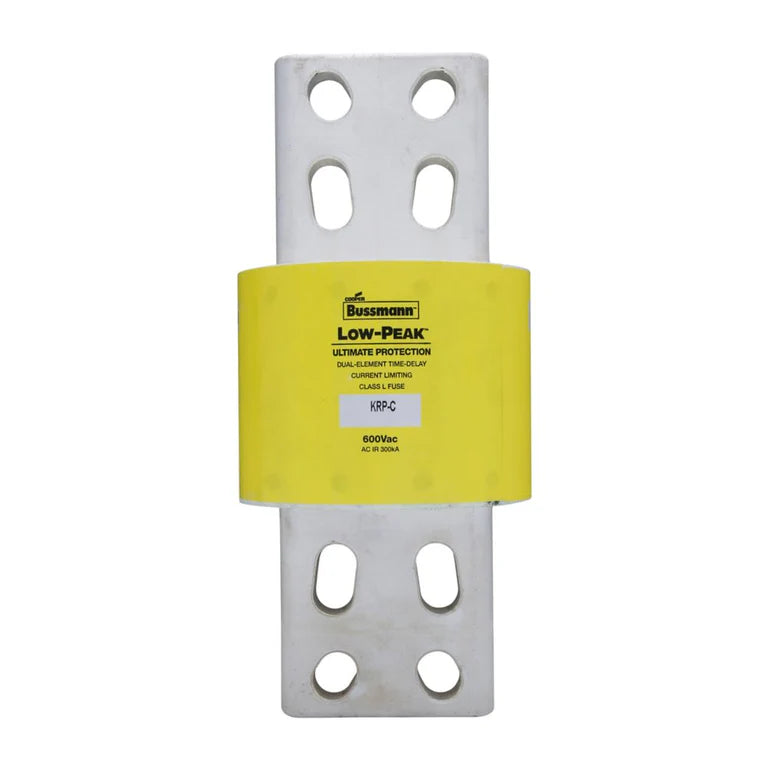

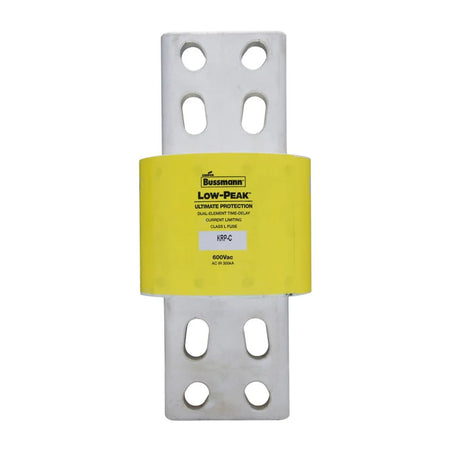

Eaton Bussmann KRP-C-1600SP Low-Peak Time-Delay Fuse | 1600A, 600V

The Eaton Bussmann KRP-C-1600SP is a high-performance Class L, 1600 Amp, 600V AC time-delay fuse from the Low-Peak family. This fuse is engineered to provide the highest level of protection for heavy-duty electrical systems, offering a significant time-delay characteristic that allows it to handle temporary motor inrush currents and transformer surges without nuisance tripping.

Featuring a 300 kAIC interrupting rating, the KRP-C-1600SP is a "current-limiting" fuse, meaning it can rapidly clear high-magnitude fault currents to protect downstream equipment from thermal and mechanical stress. It is widely used as a main service disconnect or for large feeder protection in industrial and commercial facilities.

Key Features

• Fuse Class: Class L

• Amperage: 1600 A

• Voltage: 600 V AC (also rated for 300 V DC)

• Type: Time-Delay, Current-Limiting

• Interrupting Rating: 300 kAIC (RMS Symmetrical)

• Series: Low-Peak (KRP-C)

• Design: Bolt-on blade terminals for secure high-amperage connection

• Applications: Main service switches, large motor feeders, and power distribution centers

• Protection: Superior protection against short circuits and overloads with high-speed response to catastrophic faults

Technical Specifications

• Manufacturer: Eaton Bussmann

• Catalog Number: KRP-C-1600SP

• UPC Number: 051712605168

• Material: Silver-plated copper terminals with a high-grade melamine tube

• Dimensions: Standard Class L 1600A frame

• Selectivity: 2:1 coordination ratio prevents "blackouts" by isolating only the faulted circuit

• Approvals: UL Listed Class L, CSA Certified, RoHS Compliant, CE
