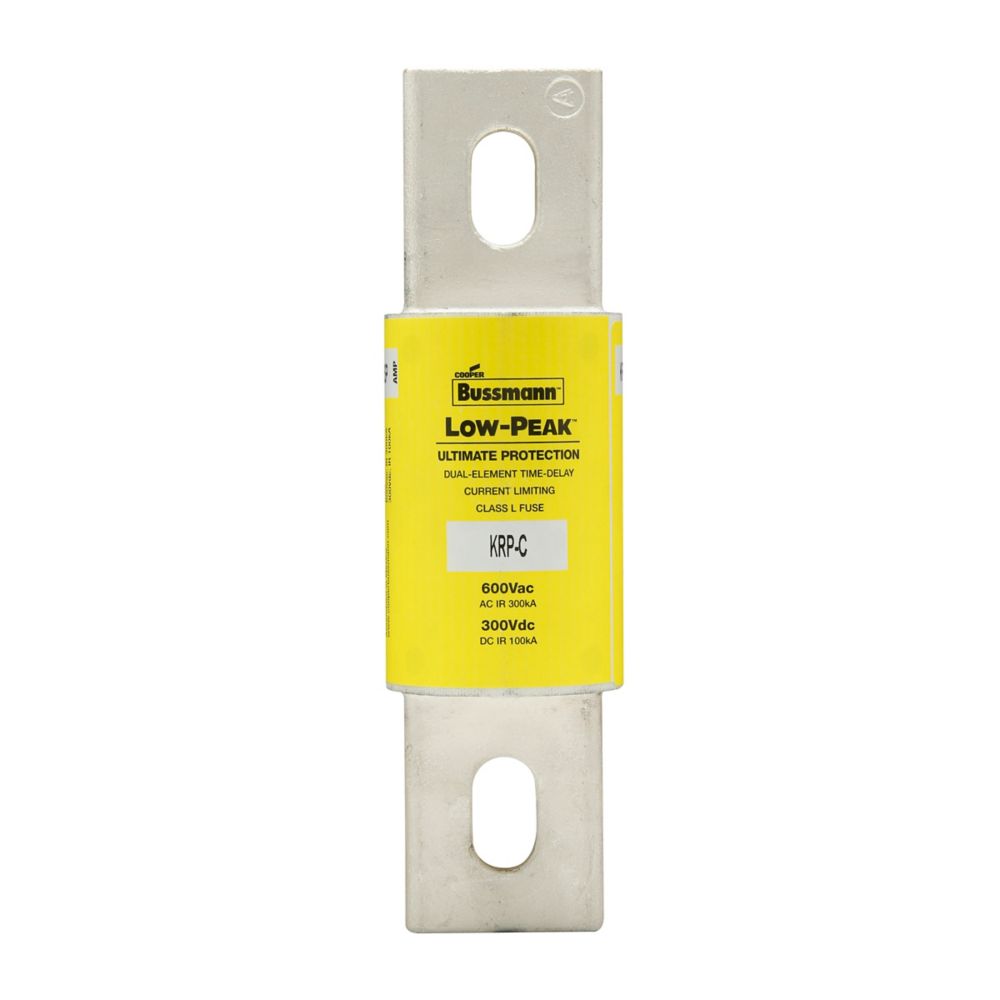

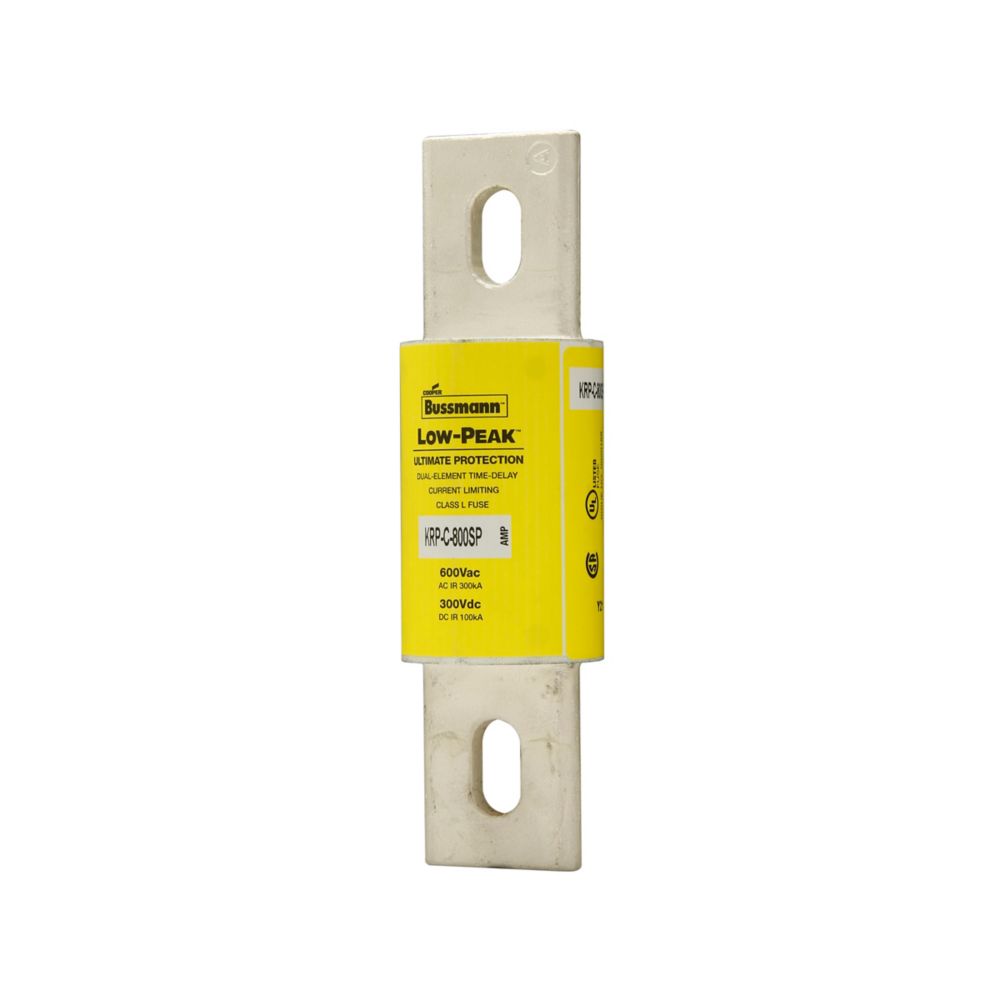

The Eaton Bussmann KRP-C-800SP is a Class L time-delay fuse designed for reliable overcurrent protection in industrial power distribution systems. With an 800A rating and compact small-footprint design, it delivers strong short-circuit protection and controlled response for applications with high inrush currents such as motors and transformers. The bolted blade end connections ensure secure installation and dependable performance in demanding electrical environments.
Voltage and Rating
- Current Rating: 800A
- Voltage Rating: 600 Vac, 300 Vdc
- Interrupt Rating: 300 kAIC at 600 Vac, 100 kA at 300 kAIC Vdc
- Response Time: 4 sec at 500%
- Fuse Class: Class L
Key Specifications
- Manufacturer: Eaton Bussmann
- Catalog Number: KRP-C-800SP
- Product Type: Fuse
- Fuse Indicator: Non-indicating
- Special Feature: Small footprint
- Connection Type: Bolted Blade End x Bolted Blade End
- Compliance: CE Marked, RoHS Compliant
Physical Details
- Product Length/Depth: 8.63 in
- Product Height: 2.53 in
- Product Width: 2.53 in
- Product Weight: 0.001 lb
- Packaging Type: Standard
Product Data
- UPC: 051712605083
- Category: Industrial High-Performance Fuses
- Application: Motor circuits, transformers, and power distribution systems
- Warranty: Not Applicable
- Type Circuit Breakers
- Vendor Bussmann
- Brand Eaton Bussmann
