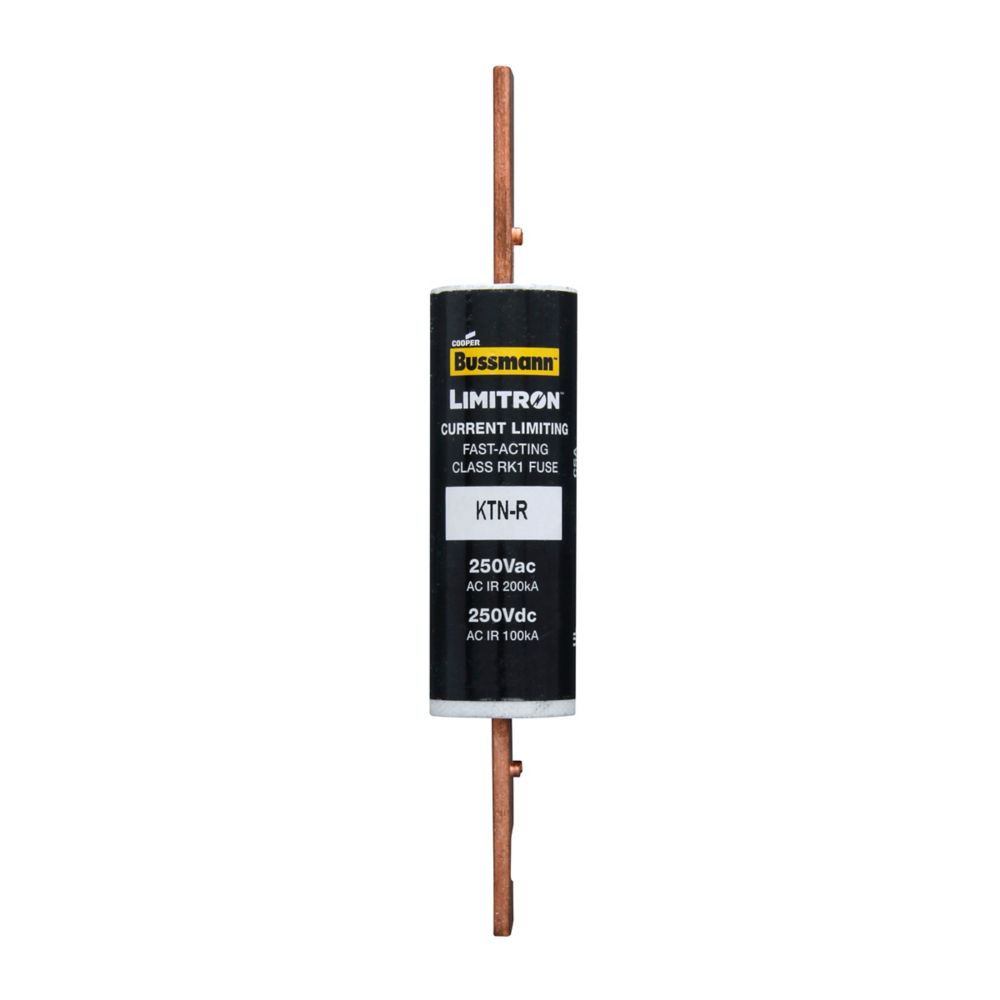

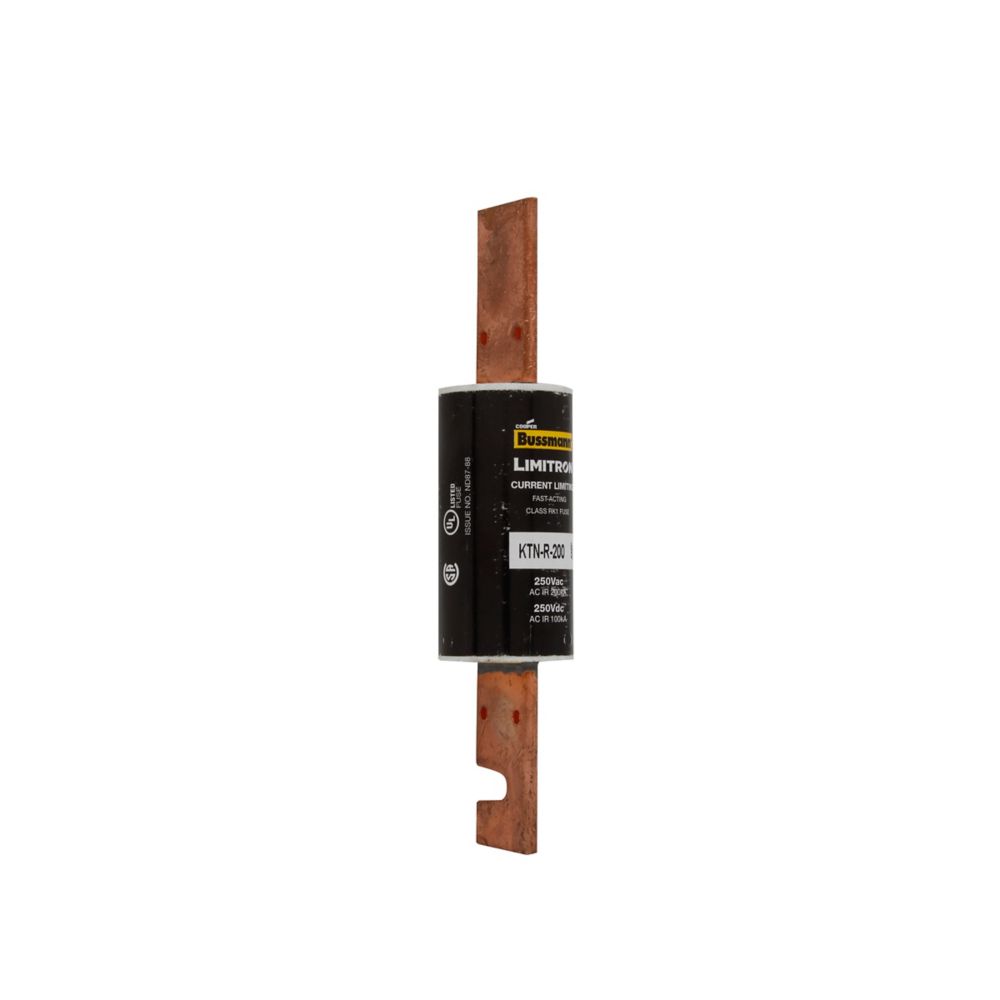

Eaton Bussmann KTN-R-200 200A Class RK1 Fuse – Blade End Connection

The Eaton Bussmann KTN-R-200 is a Class RK1 current-limiting fuse designed for reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. With a 200A rating, it delivers high interrupting capacity and strong fault-clearing performance, helping protect downstream equipment from electrical damage. Its melamine glass tube construction and 70/30 brass end caps ensure durability and consistent electrical conductivity in demanding environments.

Voltage and Rating

• Current Rating: 200A
• Voltage Rating: 250 Vac, 250 Vdc
• Interrupt Rating: 200 kAIC at 250 Vac, 100 kAIC at 250 Vdc
• Fuse Class: Class RK1

Key Specifications

• Manufacturer: Eaton Bussmann
• Catalog Number: KTN-R-200
• Product Type: Fuse
• Fuse Indicator: Non-indicating
• Special Feature: 70/30 brass end cap
• Number of Elements: 1
• Connection Type: Blade End x Blade End
• Compliance: Not Applicable

Physical Details

• Product Material: Melamine glass tube
• Product Length/Depth: 7.1 in
• Product Height: 1.56 in
• Product Width: 1.56 in
• Product Weight: 1.01 lb
• Packaging Type: Standard

Product Data

• UPC: 051712407205
• Category: Industrial Current-Limiting Fuses
• Application: Industrial power distribution and equipment protection
• Warranty: Not Applicable
