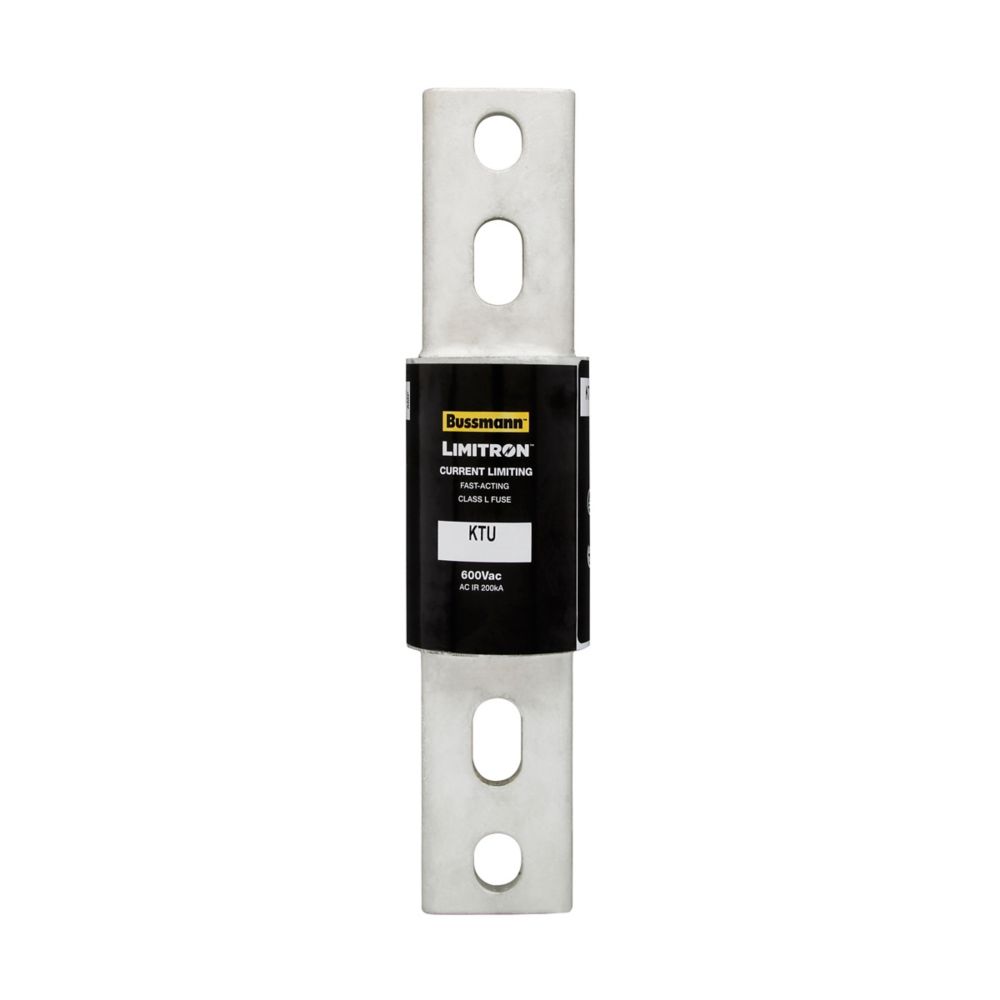

Eaton Bussmann KTU-1000 1000A Class L Fuse – Bolted Blade Connection

The Eaton Bussmann KTU-1000 is a Class L current-limiting fuse designed for high-capacity overcurrent protection in industrial power distribution systems. With a 1000A rating, it provides reliable short-circuit protection and high interrupting performance for demanding applications such as motors, transformers, and large electrical systems. Its robust construction, featuring a melamine glass tube and silver-plated end bells, ensures durability and consistent electrical performance.

Voltage and Rating

• Current Rating: 1000A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC at 600 Vac
• Fuse Class: Class L

Key Specifications

• Manufacturer: Eaton Bussmann
• Catalog Number: KTU-1000
• Product Type: Fuse
• Fuse Indicator: Non-indicating
• Special Feature: Ferrule design
• Connection Type: Bolted Blade End x Bolted Blade End
• Mounting Method: Bolt
• Compliance: CE Marked, RoHS Compliant

Physical Details

• Product Material: Melamine glass tube, Silver-plated end bells
• Product Length/Depth: 10.75 in
• Product Height: 2.5 in
• Product Width: 2.5 in
• Product Weight: 4.25 lb
• Packaging Type: Standard

Product Data

• UPC: 051712613101
• Category: Industrial High-Capacity Fuses
• Application: Industrial power distribution, motors, and transformer protection
• Warranty: Not Applicable
