Eaton Bussmann LPN-RK-225SP 225A Class RK1 Time-Delay Fuse – Blade End Connection
Couldn't load pickup availability
Ask an expert

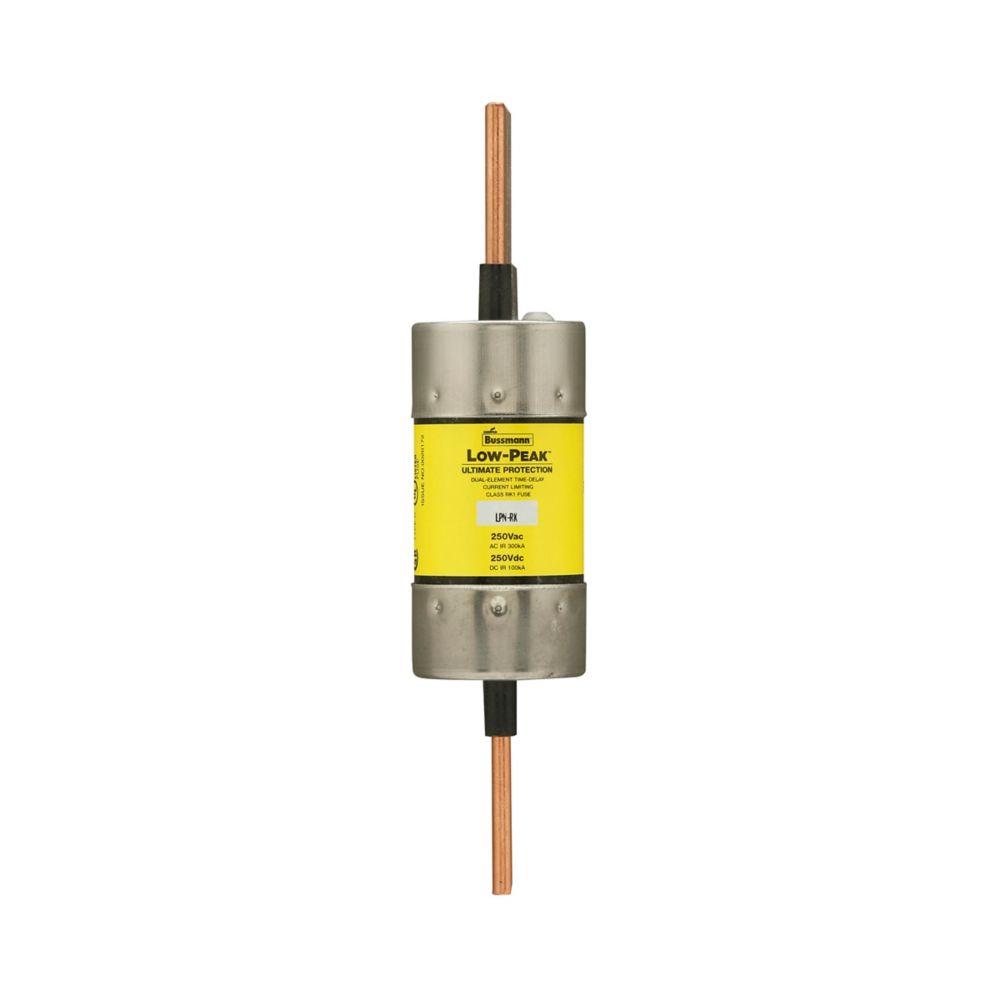

The Eaton Bussmann LPN-RK-225SP is a Class RK1 time-delay, current-limiting fuse designed for reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. With a 225A rating, it is well-suited for circuits with moderate inrush currents such as motors and transformers. Its dual-element design allows temporary overload conditions while maintaining fast fault-clearing performance for enhanced system protection.
Voltage and Rating
- Current Rating: 225A
- Voltage Rating: 250 Vac, 250 Vdc
- Interrupt Rating: 300 kAIC at 250 Vac, 100 kAIC at 250 Vdc
- Fuse Class: Class RK1
Key Specifications
- Manufacturer: Eaton Bussmann
- Catalog Number: LPN-RK-225SP
- Product Type: Fuse
- Fuse Type: Time-delay, Current-limiting
- Number of Elements: Dual
- Fuse Indicator: Non-indicating
- Special Feature: High in-rush current motor protection
- Connection Type: Blade End x Blade End
- Compliance: CE Marked, RoHS Compliant
- Quantity: 1
Physical Details
- Product Length/Depth: 8.63 in
- Product Height: 2.36 in
- Product Width: 2.36 in
- Product Weight: 1.75 lb
- Packaging Type: Standard
Product Data
- UPC: 051712538510
- Category: Industrial Time-Delay Fuses
- Application: Motor circuits, transformers, and industrial power distribution systems
- Warranty: Not Applicable
- Type Circuit Breakers
- Vendor Eaton Bussmann
- Brand Eaton Bussmann
