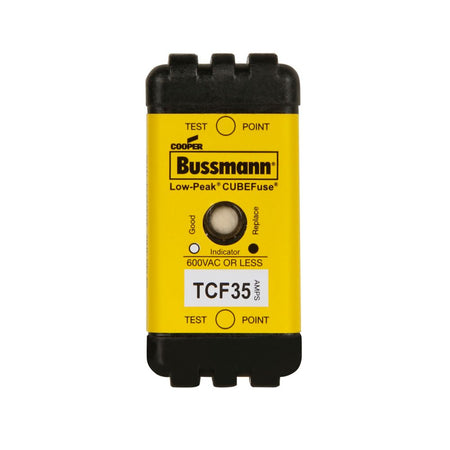

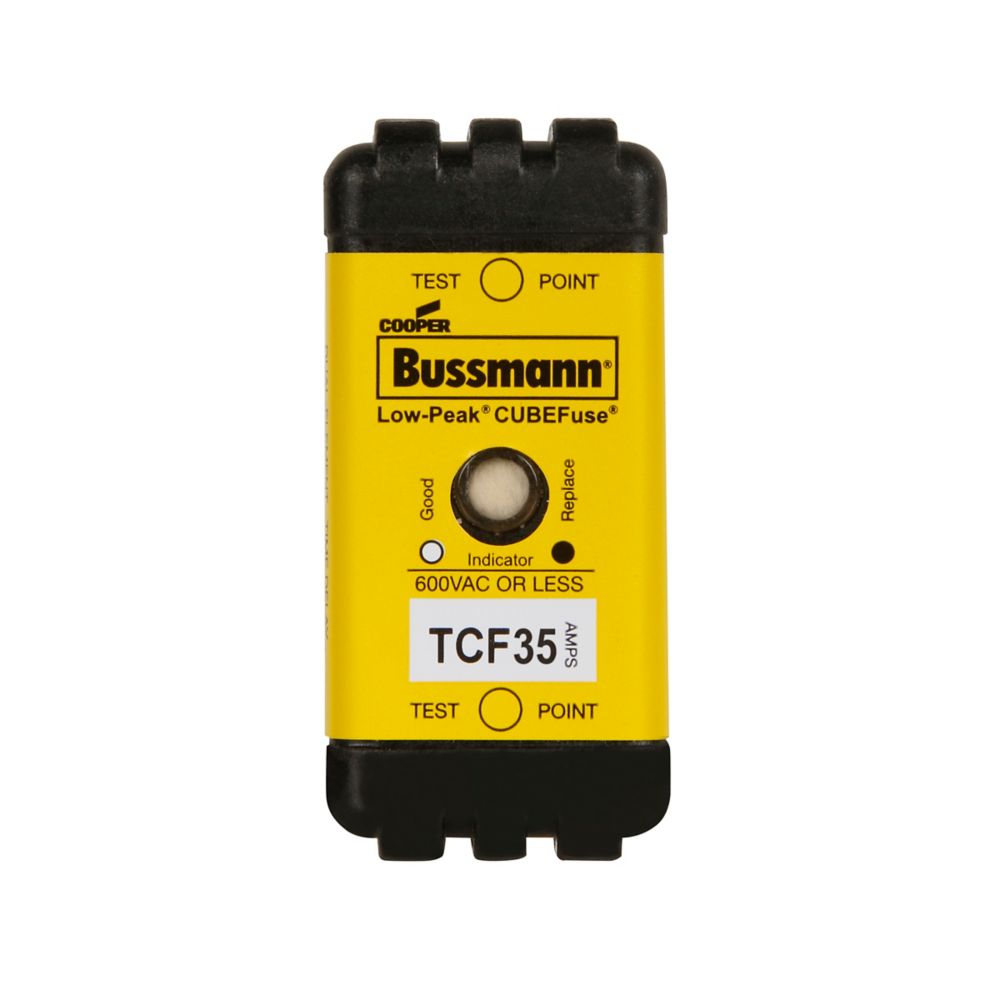

Eaton Bussmann TCF35 35A Class CF Fuse – 600VAC / 300VDC

The Eaton Bussmann TCF35 is a Class CF time-delay fuse engineered for dependable overcurrent protection in industrial and commercial applications. Rated at 35A with voltage ratings of 600VAC and 300VDC, it features a dual-element design to handle temporary overloads without nuisance tripping. The blade-end connection ensures secure installation, while the built-in fuse indicator allows quick status monitoring. Its finger-safe construction and DIN rail compatibility make it a safe and practical choice for modern electrical systems.

Voltage and Rating

• Current Rating: 35A
• Voltage Rating: 600VAC / 300VDC
• Frequency Rating: 50–60 Hz
• Interrupt Rating: 300 kAIC at 600VAC / 100 kAIC at 300VDC
• Response Time: 10 sec at 500%
• Fuse Class: Class CF

Key Specifications

• Manufacturer: Eaton Bussmann
• Series: TCF
• Catalog Number: TCF35
• Product Type: Fuse
• Fuse Type: Time Delay (Dual Element)
• Mounting Method: Chassis / 35 mm DIN Rail
• Connection: Blade End
• Fuse Indicator: With Indicator
• Material: Glass Filled PES
• Number of Elements: Dual
• Packaging Type: Standard
• Special Features: Finger Safe
• Compliance: CE Marked, RoHS Compliant
• Certifications: UL Listed, CSA Certified

Physical Details

• Color: Black
• Product Length/Depth: 2.13 in
• Product Height: 1.9 in
• Product Width: 1 in
• Product Weight: 0.17 lb

Product Data

• UPC: 051712615044
• EAN: 5027590249751
• Category: Circuit Protection
• Application: Industrial and commercial overcurrent protection
• Used With: TCFH60N, CCP2-3-60CF
• Warranty: Not Applicable
