Eaton Bussmann

Eaton Bussmann TCF80RN 80A Class CF Fuse – 600VAC / 300VDC

In stock
SKU: TCF80RN GTIN/UPC: 051712236171
$196.00
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

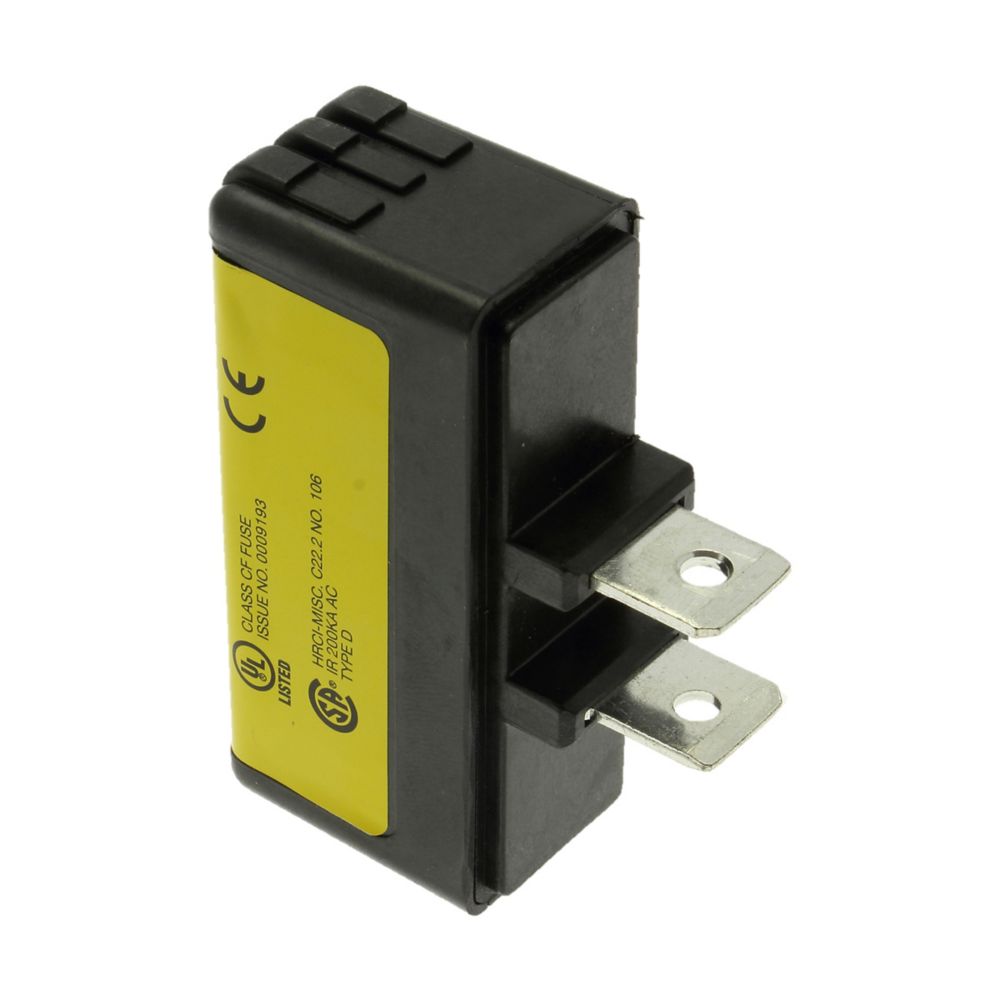

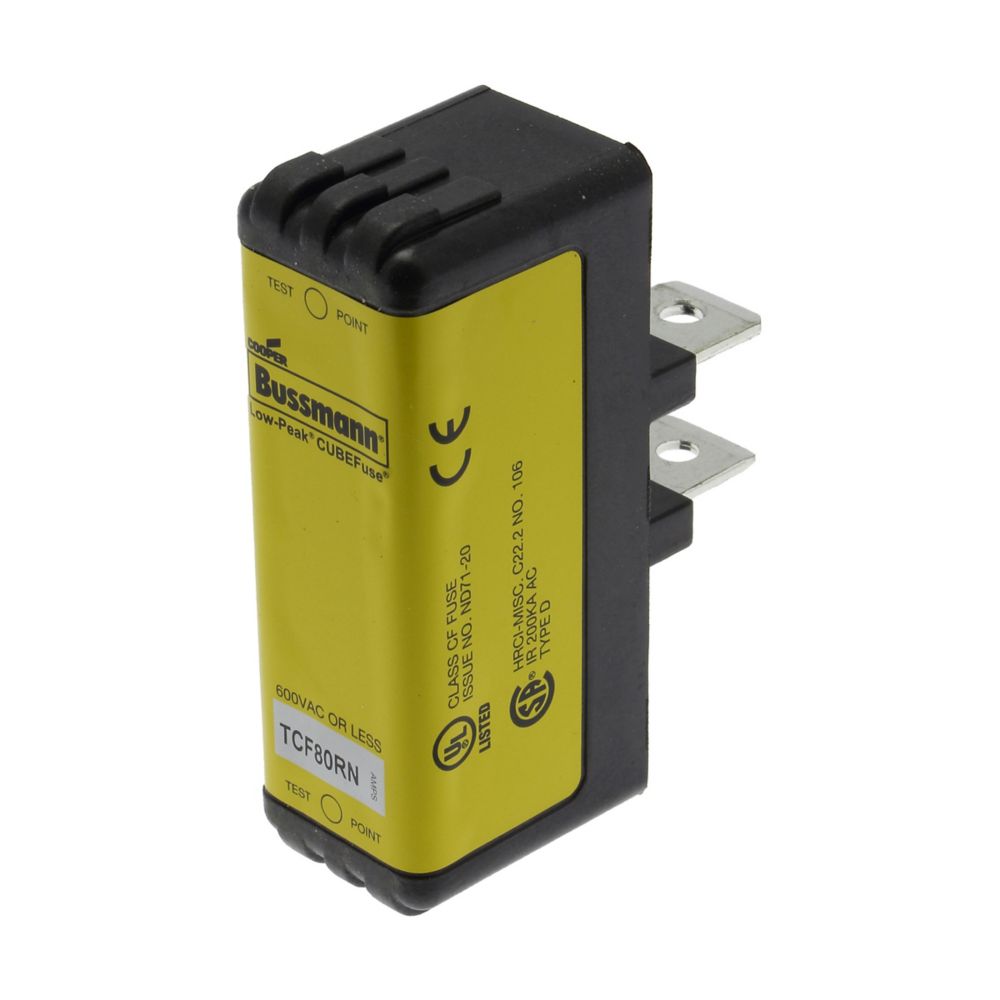

The Eaton Bussmann TCF80RN is a Class CF time-delay fuse designed for dependable overcurrent protection in industrial and commercial electrical systems. Rated at 80A with voltage ratings of 600VAC and 300VDC, it features a dual-element construction that helps tolerate temporary overloads without nuisance tripping. This non-indicating fuse includes a blade-end connection and finger-safe design, making it suitable for chassis and 35 mm DIN rail mounting applications.

Voltage and Rating

  • Current Rating: 80A
  • Voltage Rating: 600VAC / 300VDC
  • Frequency Rating: 50–60 Hz
  • Interrupt Rating: 300 kAIC at 600VAC / 100 kAIC at 300VDC
  • Response Time: 10 sec at 500%
  • Fuse Class: Class CF

Key Specifications

  • Manufacturer: Eaton Bussmann
  • Series: TCF
  • Catalog Number: TCF80RN
  • Product Type: Fuse
  • Fuse Type: Time Delay (Dual Element)
  • Mounting Method: Chassis / 35 mm DIN Rail
  • Connection: Blade End
  • Fuse Indicator: Non-Indicating
  • Material: Glass Filled PES
  • Number of Elements: Dual
  • Packaging Type: Standard
  • Special Features: Finger Safe
  • Compliance: CE Marked, RoHS Compliant
  • Certifications: UL Listed, CSA Certified

Physical Details

  • Color: Black
  • Product Length/Depth: 3.01 in
  • Product Height: 2.125 in
  • Product Width: 1 in
  • Product Weight: 0.284 lb

Product Data

  • UPC: 051712236171
  • Category: Circuit Protection
  • Application: Industrial and commercial overcurrent protection
  • Used With: TCFH100N, CCP2-3-100CF
  • Warranty: Not Applicable
  • Type Circuit Breakers
  • Vendor Eaton Bussmann
  • Brand Eaton Bussmann
