Eaton Cutler-Hammer

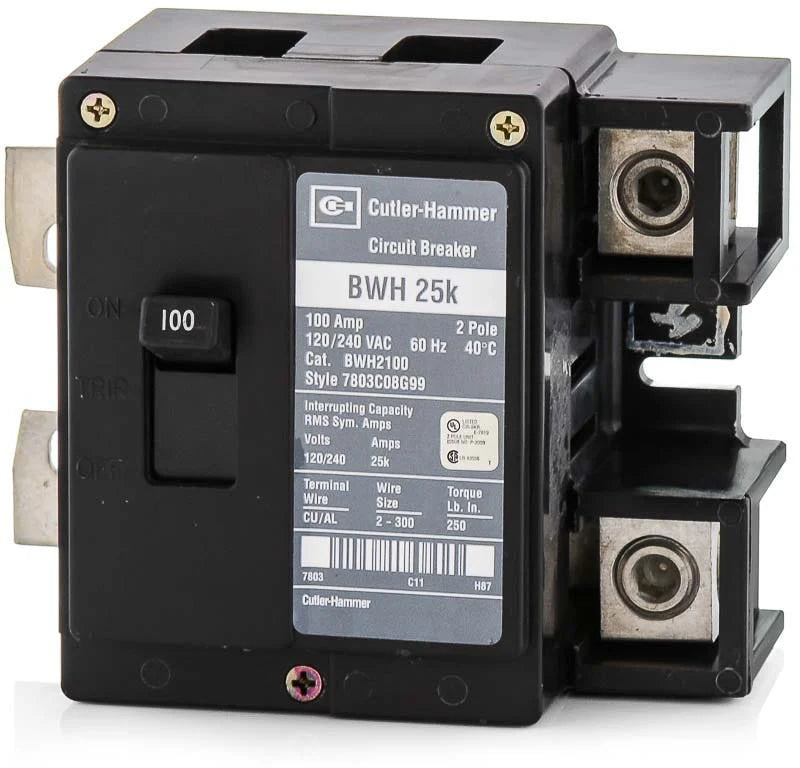

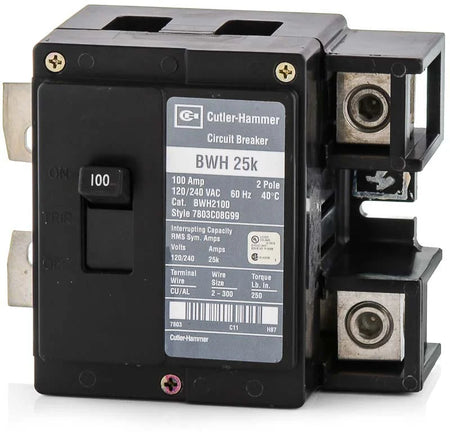

Eaton BWH100 BR Thermal Magnetic Circuit Breaker – 100A, 2-Pole, 120/240V, Bolt-On Main Breaker

In stock
SKU: BWH2100 GTIN/UPC: 782116061105
$389.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton BWH100 thermal magnetic circuit breaker is a high-interrupting capacity main service breaker designed for reliable overcurrent protection in residential and commercial electrical systems. Rated at 100A with a 25 kAIC interrupting capacity, this breaker provides dependable performance under high fault conditions. It is compatible with Eaton Type BR load centers, meter breakers, and ECB enclosures, making it suitable for main service applications requiring robust protection and durability.

Voltage and Rating

  • Current Rating: 100A
  • Voltage Rating: 120/240V AC
  • Interrupt Rating: 25 kAIC @ 120/240V
  • Number of Poles: Two-pole
  • Phase: Single-phase
  • Trip Function: Long-time and instantaneous (LI)
  • Trip Technology: Thermal magnetic
  • Trip Adjustability: Fixed

Key Specifications

  • Manufacturer: Eaton / Cutler-Hammer
  • Series: BWH
  • Product Type: Main circuit breaker
  • Mounting Style: Bolt-on
  • Terminal Type: Lugs
  • Wire Range: 2 AWG – 300 kcmil (Cu/Al)
  • Max Wire Size: 300 kcmil
  • Min Wire Size: 2 AWG
  • For Use With: Eaton Type BR load centers, ECB unit enclosures, meter stacks, meter breakers
  • Standards: UL 489, Federal Specification W-C375
  • Approval: UL Listed
  • Construction Features: HACR rated, high interrupting capacity
  • Available Options: Shunt trip, auxiliary switch, bell alarm
  • Accessories: Lugs included
  • Temperature Rating: -25°C to 70°C

Product Data

  • Application: Main service protection for residential and commercial systems
  • Protection Type: Thermal magnetic overcurrent protection
  • Installation Style: Bolt-on main breaker configuration
  • Performance Feature: High fault current handling capability (25 kAIC)
  • Type Circuit Breakers
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
