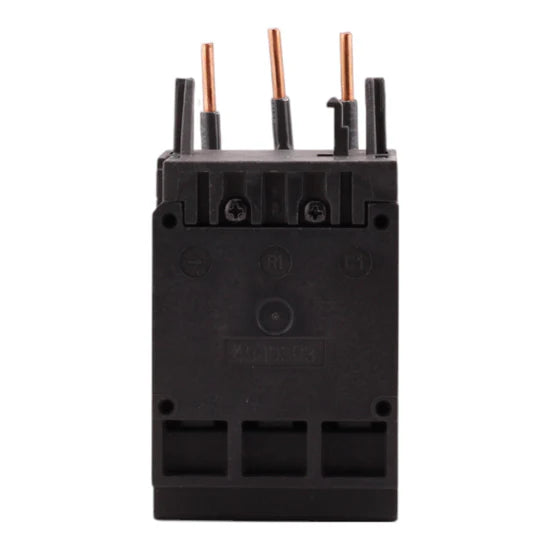

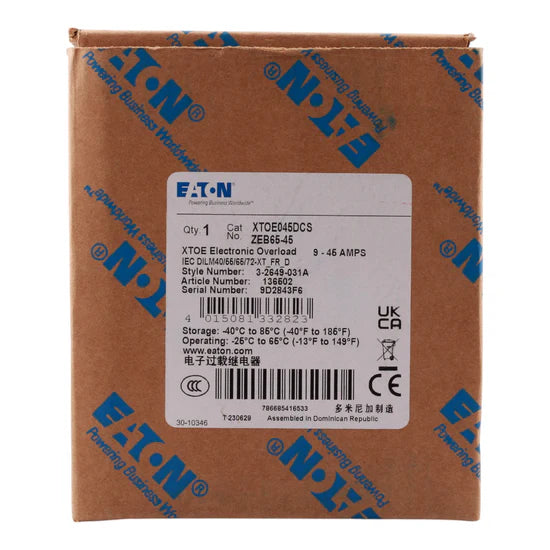

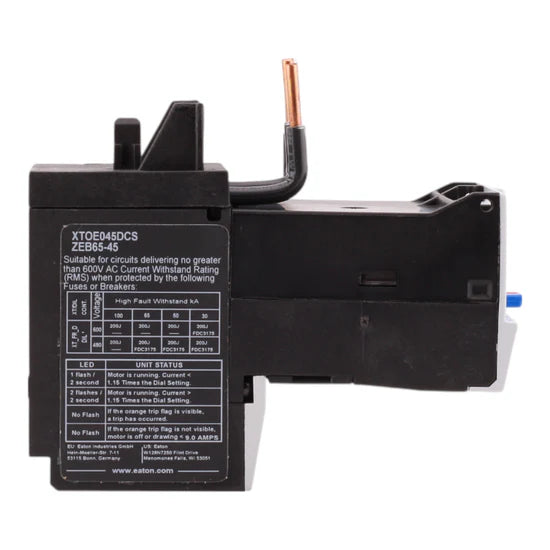

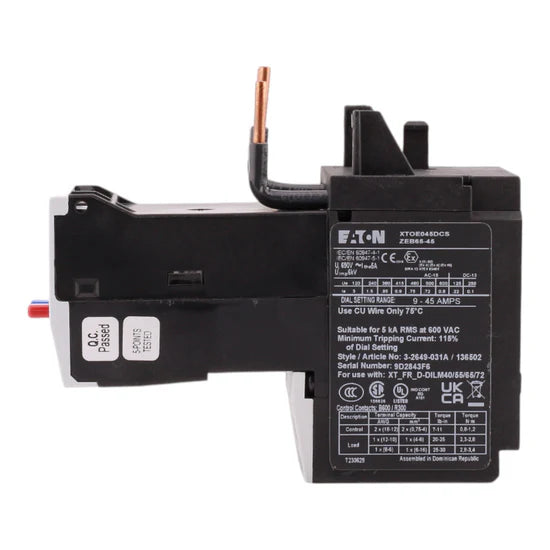

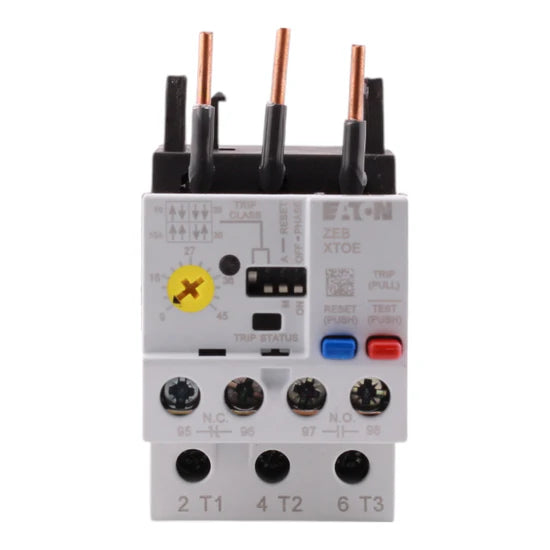

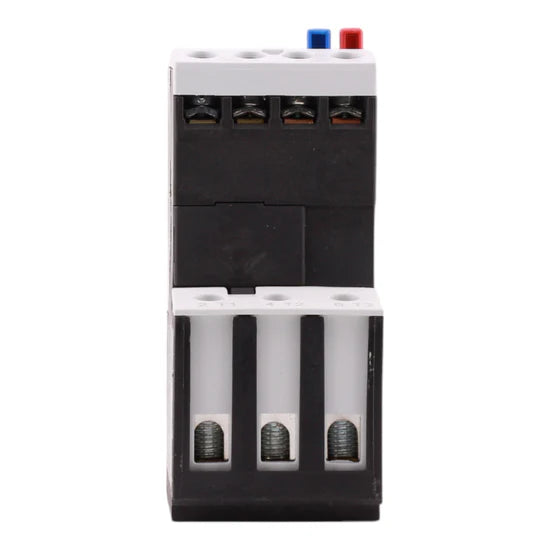

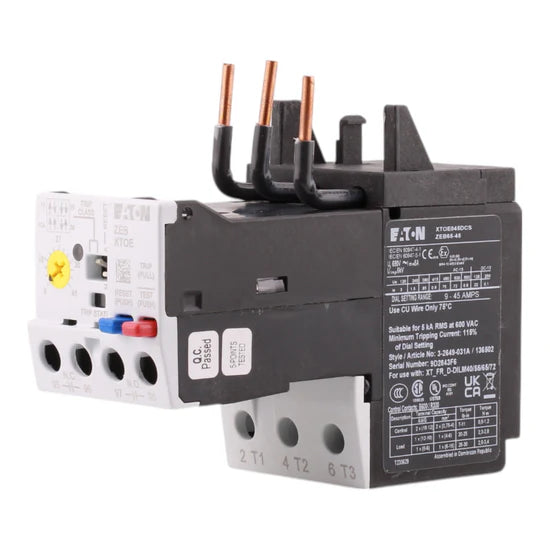

Eaton C440 XTOE045DCS 9-45A Electronic Overload Relay – Direct Mount – 55mm Frame

The Eaton C440 XTOE045DCS electronic overload relay provides dependable 9–45A motor protection for industrial and commercial applications. Designed for direct mounting on contactors, this relay features selectable trip classes (10A, Class 10, 20, 30) and NO-NC contacts, ensuring precise protection and versatile integration in motor control systems.

Voltage and Rating

• Overload Range: 9–45 Amps
• Frame Size: 55 mm
• Trip Classes: Selectable 10A, Class 10, 20, 30

Key Specifications

• Relay Type: Electronic Overload
• Mounting Type: Direct Mount to Contactor
• Contact Configuration: Normally Open (NO), Normally Closed (NC)
• Application: Motor protection and control
• Product Range: C440

Technical Specifications

• Dimensions: Height: 4.3 in, Width: 1.42 in, Depth: 1.8 in
• Weight: 0.87 lbs
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947, ATEX Compliant, RoHS Compliant, CE Marked

Product Data

• • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: XTOE045DCS
  • UPC: 786685416533
