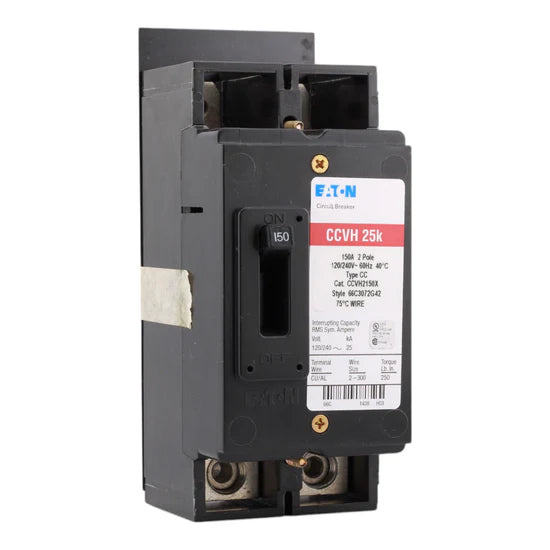

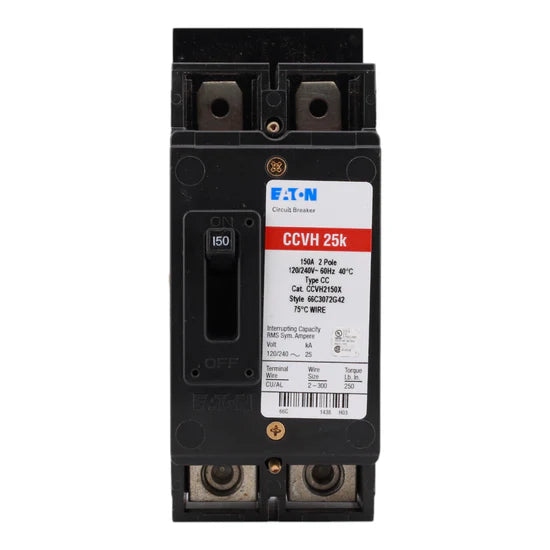

Eaton CCVH2150X 150A 2-Pole Tenant Main Circuit Breaker – Plug-On – 120/240V AC

"The Eaton CCVH2150X is a high-performance 150-amp, 2-pole tenant main circuit breaker designed to provide reliable overcurrent protection and service disconnect functionality in multi-tenant electrical systems. Engineered for use with Eaton Type ECC unit enclosures, this breaker delivers dependable performance in residential, commercial, and light industrial applications.
Specifications

• Brand: Eaton
• Manufacturer: Eaton
• Model Number: CCVH2150X
• UPC Number: 786685368498
• Type: Tenant Main Circuit Breaker
• Amperage Rating: 150 Amps
• Voltage Rating: 120/240 Volts AC
• Number of Poles: 2-Pole
• Interrupt Rating: 25 kAIC
• Wire Size Compatibility: #2/0 AWG to 300 kcmil (Copper or Aluminum)
• Certifications: UL 489
• Dimensions (H × W × D): 5.4 in × 4.5 in × 7.7 in
• Weight: 2.9 lb

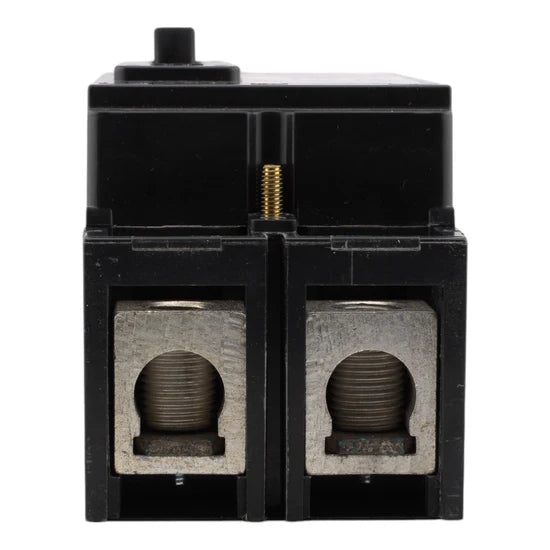

• Special Features: Load-side terminals; standard lugs for Cu/Al wiring
• Compatibility: Designed for Type ECC Unit Enclosures

Key Features and Benefits

• High Interrupt Capacity: 25 kAIC provides dependable fault protection.
• Tenant Main Protection: Designed for overcurrent protection and disconnecting tenant spaces.
• Flexible Wiring: Accepts large copper or aluminum conductors (#2/0–300 kcmil).
• Simplified Installation: Load-side terminals and standard lugs speed wiring.
• Rugged Build: Suitable for demanding residential and commercial environments.

Applications

• Residential: Multi-family housing and apartment metering stacks.
• Commercial: Tenant spaces in offices, strip malls, and retail centers.
• Equipment Compatibility: Eaton Type ECC unit enclosures.
