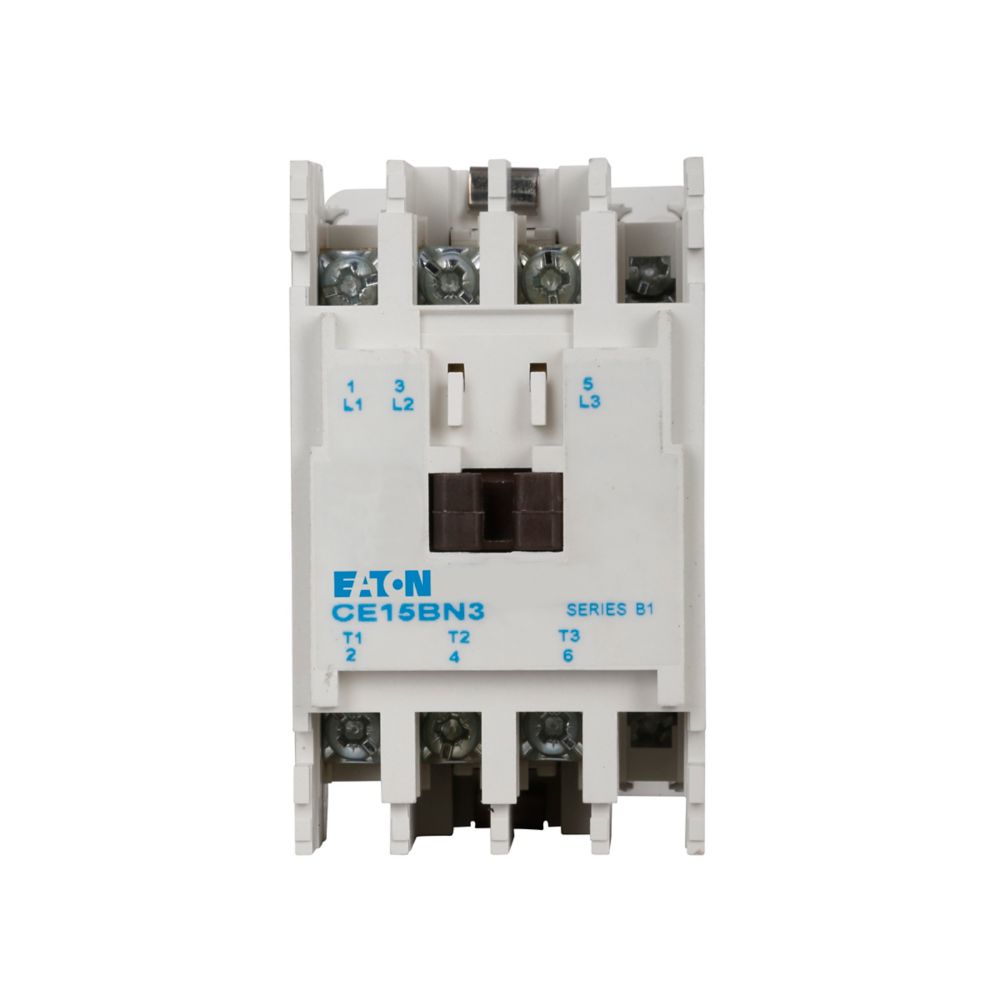

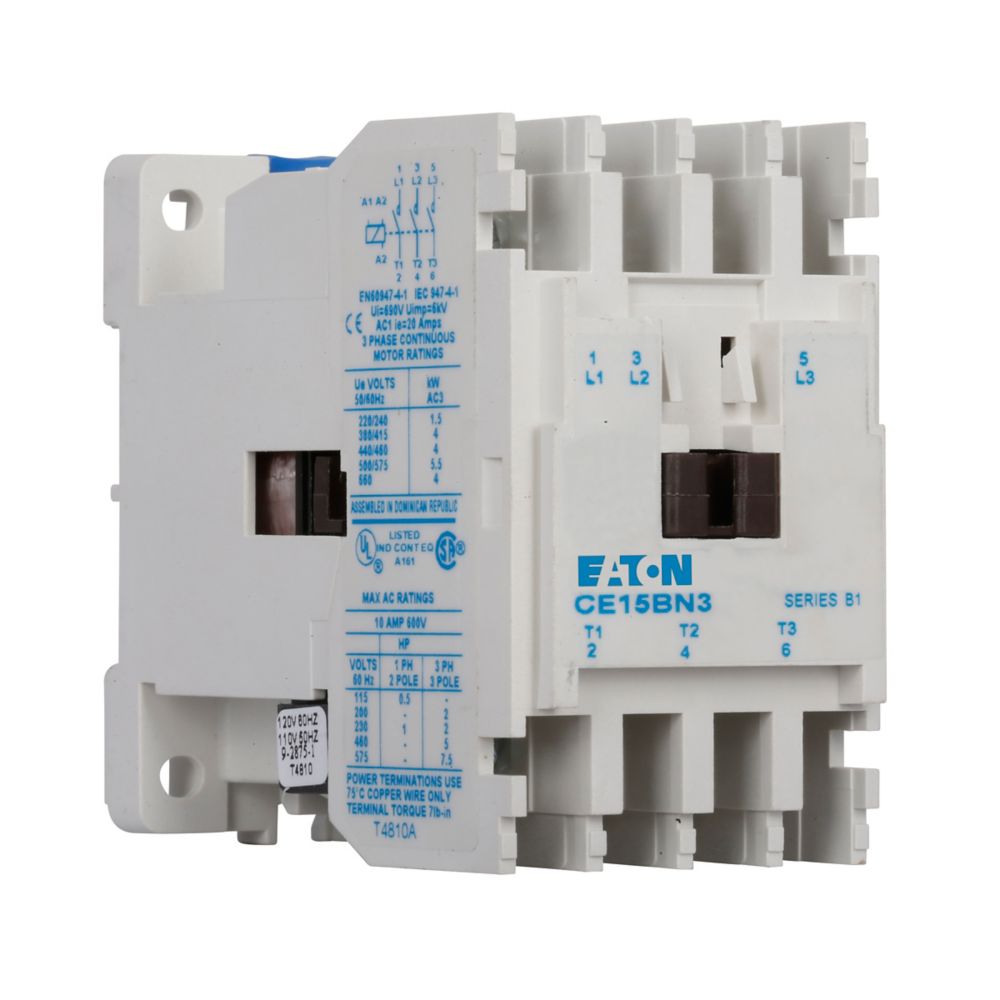

Eaton CE15BNS3AB XT IEC Contactor – 10A, 3-Pole, 110–120VAC Coil, 45mm Frame

The Eaton CE15BNS3AB XT IEC contactor is a compact, non-reversing contactor designed for industrial motor control applications. Part of the Eaton XT IEC Freedom series, it provides reliable switching performance for small motors and general load control. With a 45 mm frame size and a 110–120VAC coil, it is suitable for efficient control panel integration. The unit includes a built-in auxiliary contact configuration and is designed for side mounting without an enclosure.

Electrical Ratings

• Continuous Current Rating: 10A
• Amperage Rating: 10A
• Maximum Horsepower Rating: 0.5 hp
• Frequency Rating: 50–60 Hz
• Coil Voltage: 110–120VAC (50–60 Hz)
• Number of Poles: Three-pole
• Contact Configuration: 1 NO (normally open)
• Operation Type: Non-reversing
• Overload Relay: Not included

Key Specifications

• Manufacturer: Eaton
• Catalog Number: CE15BNS3AB
• UPC: 782113778075
• Product Type: Contactor
• Series: Freedom XT IEC
• Frame Size: 45 mm
• Mounting Method: Side mount
• Certifications: UL Listed, IEC Rated, CSA Certified
• Compliances: ISO 9000, DIN VDE 0600
• Warranty: 1 year (per Eaton Selling Policy 25-000)

Physical Details

• Product Length/Depth: 3.25 in
• Product Height: 2.96 in
• Product Width: 1.8 in
• Product Weight: 0.9 lb

Product Data

• Application: Industrial motor and load switching control
• Compatibility: IEC control panels and motor control systems
• Installation Use: Compact contactor for panel-mounted control circuits
• Special Notes: Fourth pole position functions as auxiliary contact without increasing width; no enclosure included
