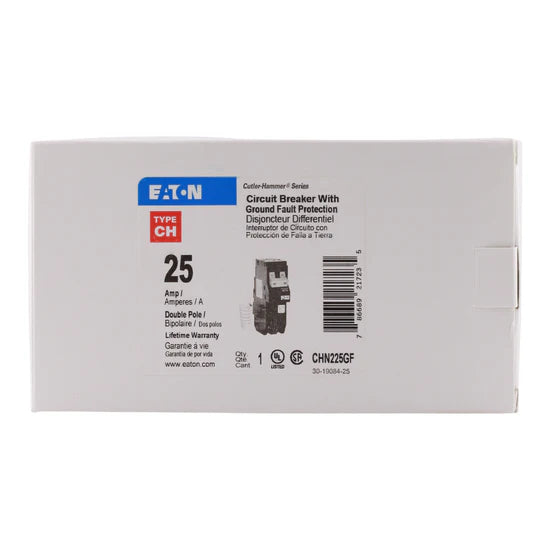

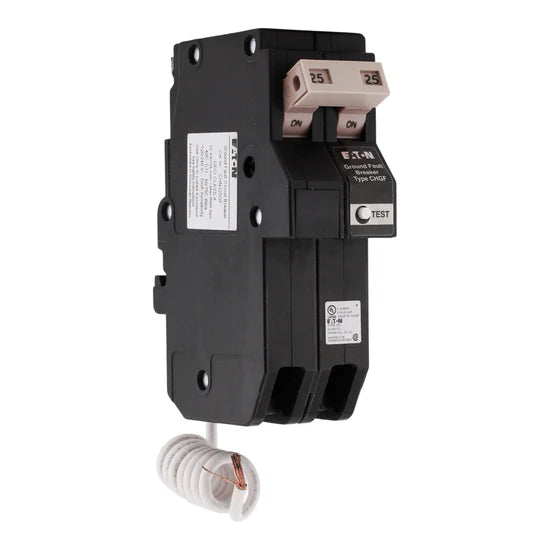

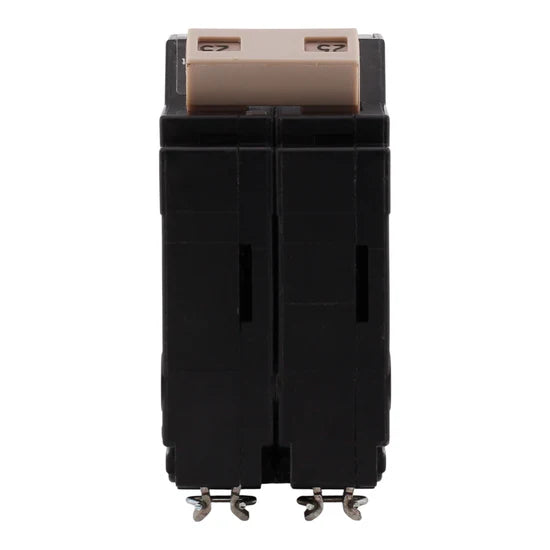

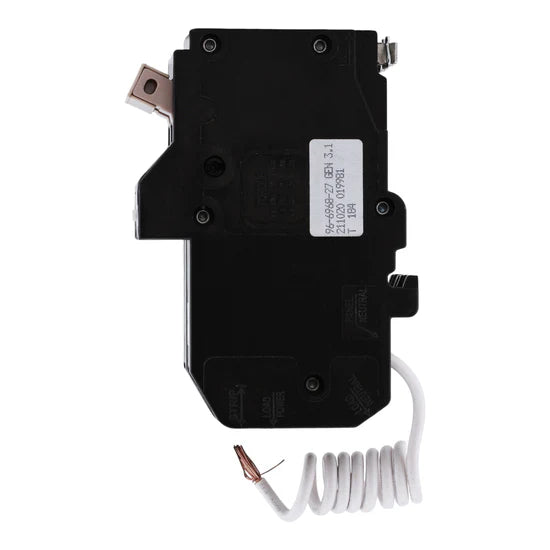

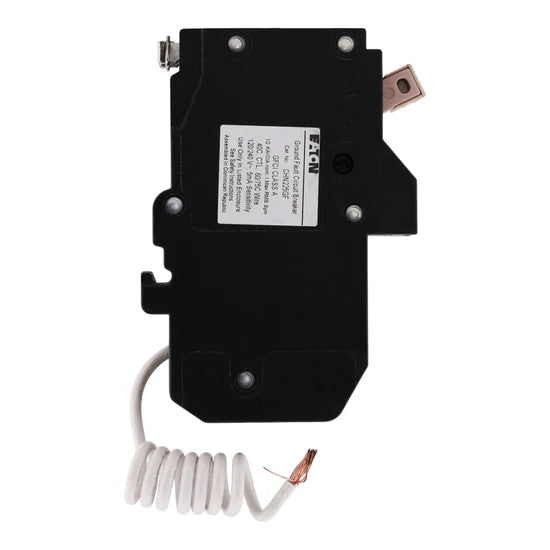

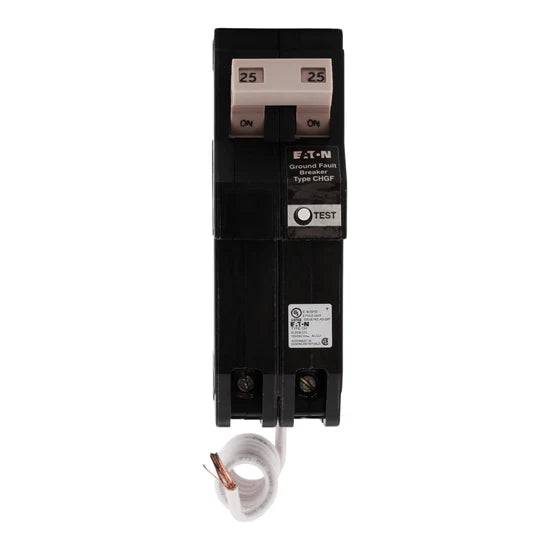

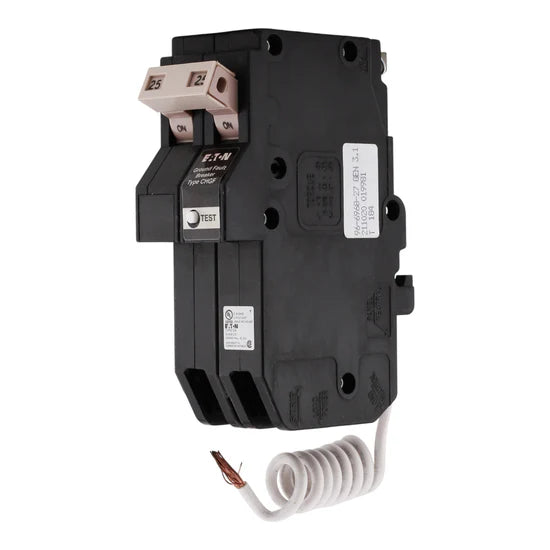

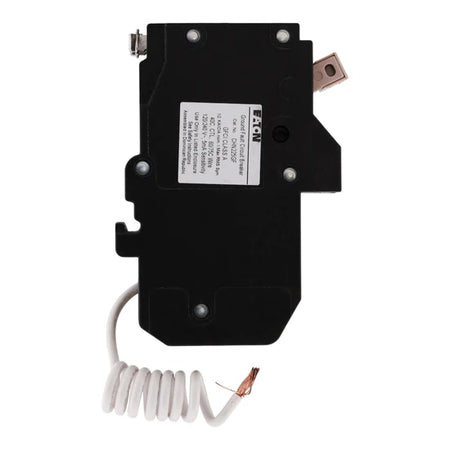

Eaton CH CHN225GF 25A 2P GFCI – Plug-In – 120/240V

The Eaton CH CHN225GF is a 2-pole plug-in GFCI circuit breaker providing 25A ground-fault protection for 120/240V AC circuits in CH loadcenters. With a 5mA trip sensitivity and common trip design, it ensures fast response to ground faults, enhancing personnel safety in kitchens, bathrooms, garages, and outdoor residential applications. Rated for 10kA interrupt capacity, it delivers reliable overload and short-circuit protection.

Electrical Ratings:

• Amperage: 25 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Trip Sensitivity: 5 mA ground fault protection

Key Specifications:

• Breaker Type: Ground Fault Circuit Interrupter (GFCI)
• Mounting Mode: Plug-In
• Connections Terminals: Plug-on
• Wire Size: #14–4 AWG Cu/Al
• Tightening Torque: 25 lb-in
• Special Features: Common trip for both poles

Dimensions & Weight:

• • Height: 2.25 in
  • Width: 3.5 in
  • Depth: 6.0 in
  • Weight: 0.8 lbs

Certifications:

• UL 489 Listed

Product Data:

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: CH (for Eaton CH loadcenters and equipment)
• Model Number: CHN225GF
• UPC: 786689217235
