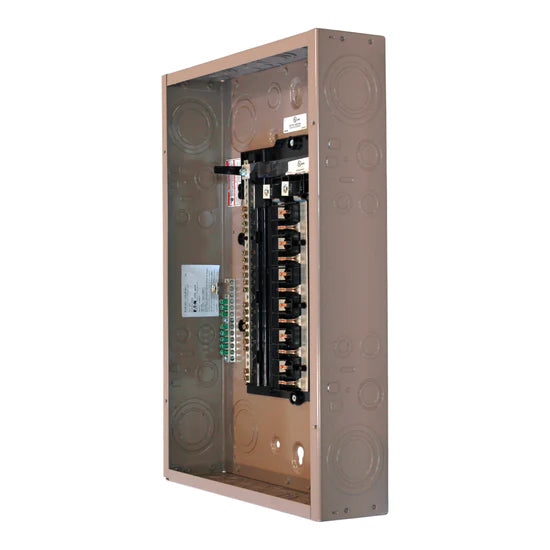

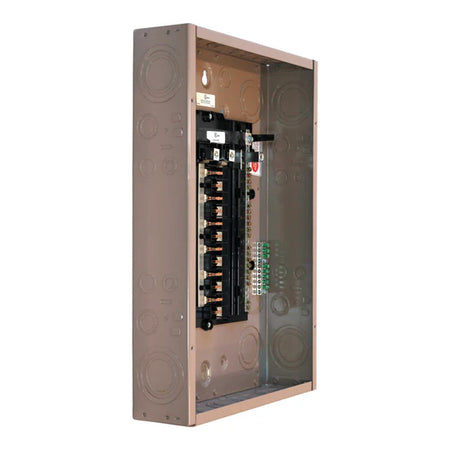

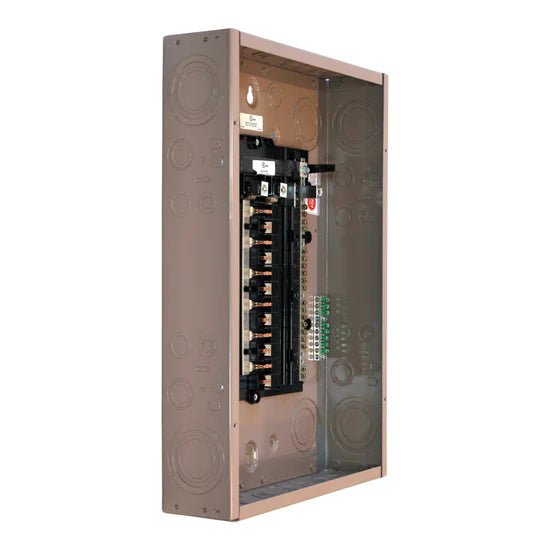

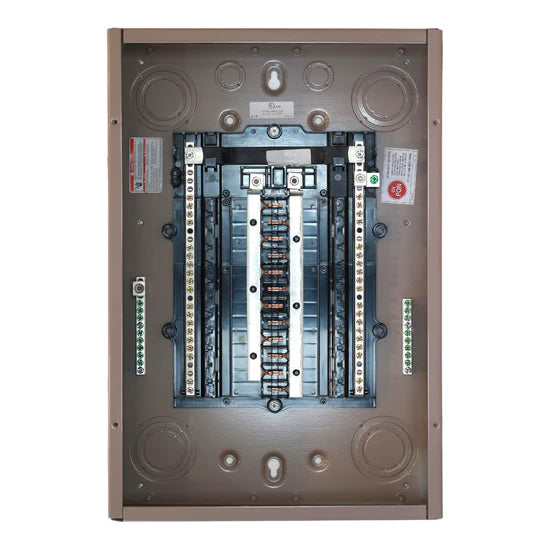

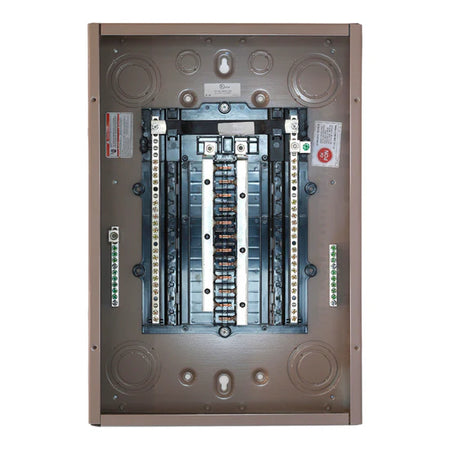

The Eaton CHP24L125X2 is a 125 Amp single-phase main lug loadcenter designed for 120/240V residential and light commercial power distribution. Part of the CH series, this loadcenter supports Eaton CH circuit breakers and features a Plug-on Neutral (PON) design for faster, cleaner installations. With a copper bus and 25 kAIC rating, it provides dependable performance and durability.
Electrical Ratings
- Amperage: 125 Amps
- Phase: Single-Phase
- Voltage Rating: 120/240 Volts AC
- Interrupt Rating: 25 kAIC
Circuit Capacity
- Number of Spaces: 24
- Number of Circuits: 48
- Product Type: Main Lug Loadcenter
- Breaker Compatibility: Eaton CH Series
- Construction & Connections
- Bus Material: Copper
- Wire Size Range: #6–2/0 AWG Copper/Aluminum
- Enclosure Rating: NEMA 1 (Indoor)
- Enclosure Material: Steel
- Special Feature: Plug-on Neutral (PON)
Physical Specifications
- Height: 21.0 inches
- Width: 14.3 inches
- Depth: 4.0 inches
- Weight: 11.7 lbs
Certifications
UL Listed
Product Information
- Brand: Eaton
- Product Range: CH Series
- Model Number: CHP24L125X2
- UPC: 786689054311
The Eaton CHP24L125X2 main lug loadcenter delivers reliable 125A, single-phase distribution with 24 spaces and 48 circuits, making it ideal for residential and light commercial installations requiring high interrupt capacity and simplified plug-on neutral wiring.
