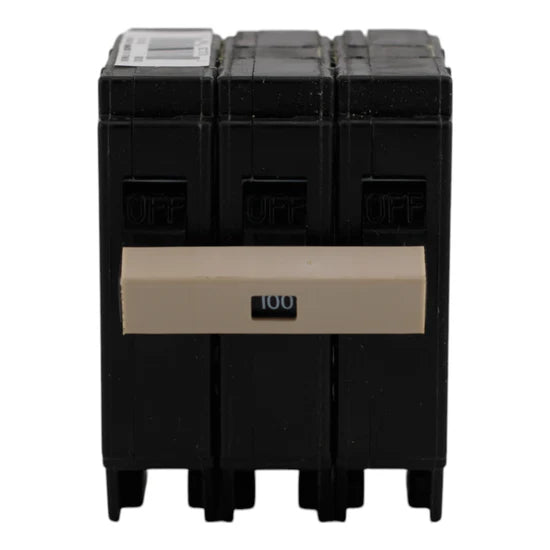

The Eaton CH3100 100 Amp three-pole standard circuit breaker delivers reliable protection for CH loadcenters. Featuring a common-trip design and 10 kA short-circuit rating, it is compatible with #10–1/0 AWG copper or aluminum conductors. UL 489 listed, this breaker requires three 3/4-inch spaces and provides safe, efficient operation for residential and light commercial applications.
Voltage and Rating
- Current Rating: 100 Amps
- Voltage Rating: 240V AC
- Short Circuit Current Rating: 10 kA
- Poles: 3-Pole
Key Specifications
- Breaker Type: Standard Circuit Breaker
- Product Line: CH Series
- Mounting Type: 3/4-Inch Standard
- Connection Type: Terminal
- Wire Size Compatibility: 10–1/0 AWG (Copper or Aluminum)
- Features: Common breaker trip
- Application: For use with Type CH Loadcenters
- Space Required: Three 3/4-inch spaces
Certifications
-
UL 489 Listed
Product Data
-
- Manufacturer: Eaton
- Brand: Eaton CH
- Model Number: CH3100
- UPC: 782113102405
- Dimensions (H × W × D): 2.6 × 3.1 × 2.2 in
- Weight: 0.85 lb
