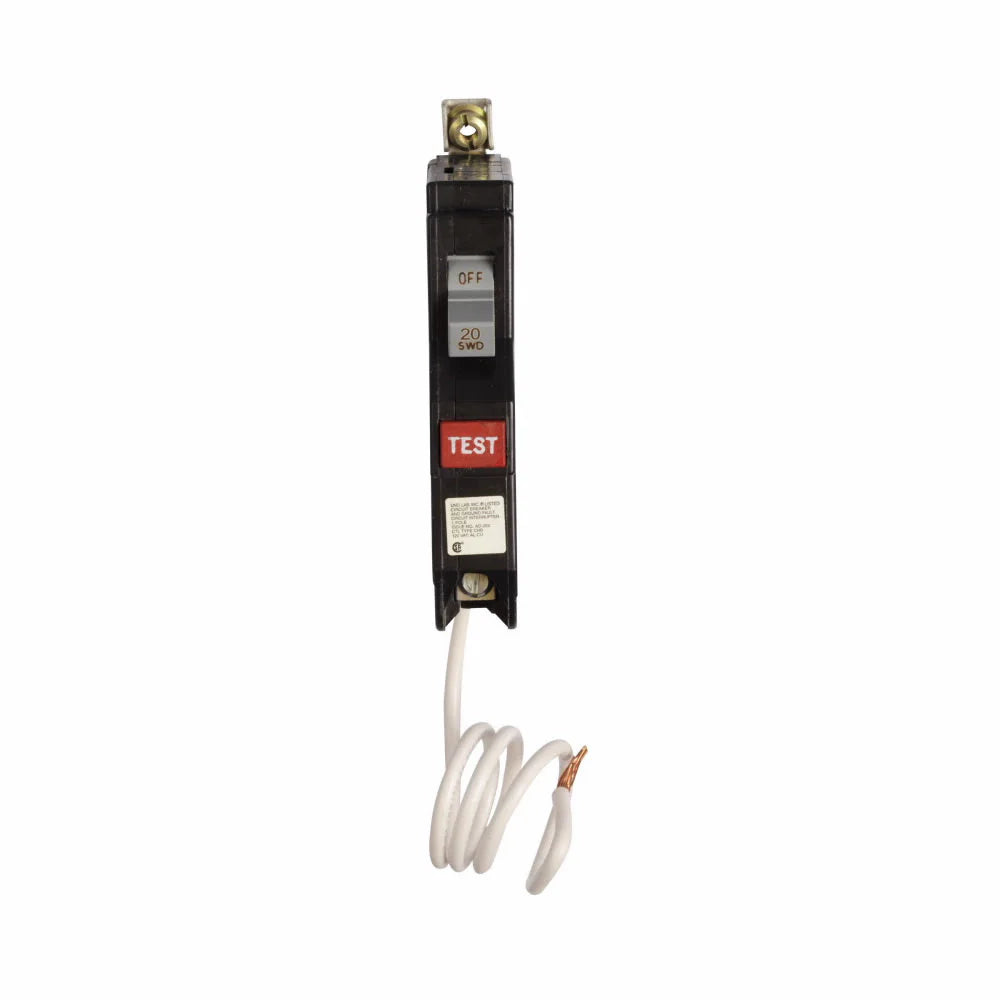

Eaton CHB120GF 20A 1-Pole 120/240V Bolt-On GFCI Circuit Breaker 10kAIC Ground Fault

Product Description

The Eaton CHB120GF is a 20 Amp, 1-Pole Ground Fault Circuit Interrupter (GFCI) circuit breaker designed for use in Eaton CH loadcenters and panelboards. This bolt-on breaker provides both overcurrent protection and personnel ground-fault protection with 5mA ground-fault sensitivity, making it ideal for applications requiring GFCI protection.

Key Features

• Catalog Number: CHB120GF
• Manufacturer: Eaton / Cutler-Hammer
• Amperage: 20 Amp
• Poles: 1-Pole
• Voltage Rating: 120/240VAC
• Ground Fault Circuit Interrupter (GFCI)
• 5mA Ground Fault Protection
• Thermal Magnetic Trip Unit
• Bolt-On Mounting
• Designed for CH Loadcenters
• HID Rated
• UL 489 Listed

Technical Specifications

• Manufacturer: Eaton
• Catalog Number: CHB120GF
• Series: CHB
• Type: Ground Fault Circuit Breaker
• Amperage: 20A
• Poles: 1
• Voltage: 120/240VAC
• Mounting Style: Bolt-On
• Trip Unit: Thermal Magnetic
• Ground Fault Protection: 5mA
• Interrupting Rating:
  • 10kAIC @ 120/240VAC
• Wire Range:
  • #14 AWG – #8 AWG Copper/Aluminum
• Application:
  • Eaton CH Loadcenters
  • Eaton CH Panelboards
  • Eaton PB Panelboards
• Certifications:
  • UL 489 Listed

Product Data

• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Model: CHB120GF
• Type: GFCI Circuit Breaker
• Series: CHB
• Mounting: Bolt-On
• Protection Type: Ground Fault / Thermal Magnetic
• Ground Fault Sensitivity: 5mA
• Condition: New / Reconditioned
• Compatible Equipment:
  • Eaton CH Loadcenters
  • Eaton CH Panelboards
  • Eaton PB Panelboards
• UPC: 782113270616
• GTIN: 00782113270616
• Dimensions:
  • Length: 3.6"
  • Height: 2.7"
  • Width: 0.7"
• Weight: Approximately 0.25 lbs
• Country of Manufacture: Varies by Production Run

Compatible With

• Eaton CH Loadcenters
• Eaton CH Panelboards
• Eaton PB Panelboards

Interrupting Rating

• 10kAIC @ 120/240VAC
