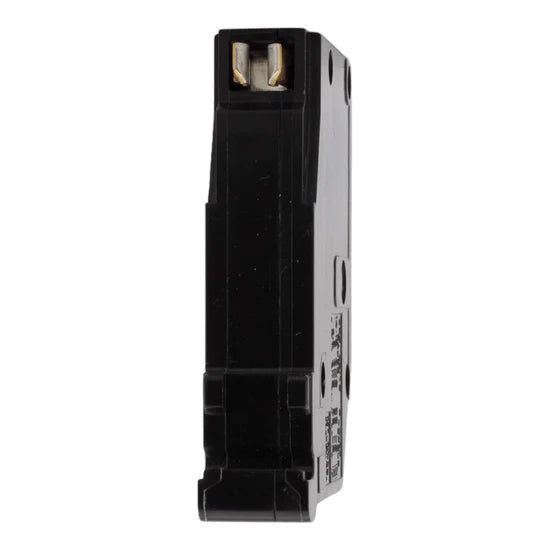

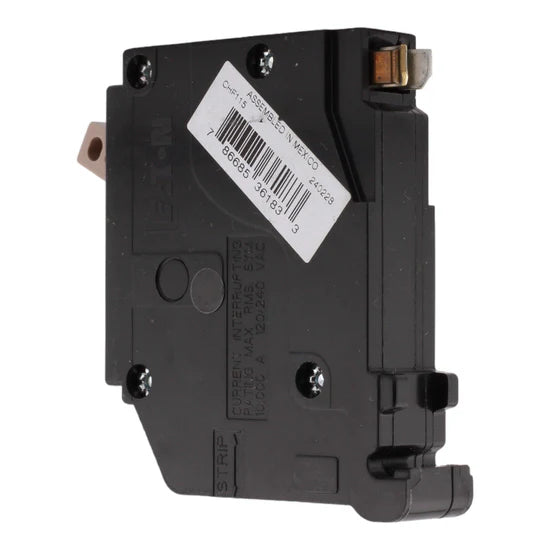

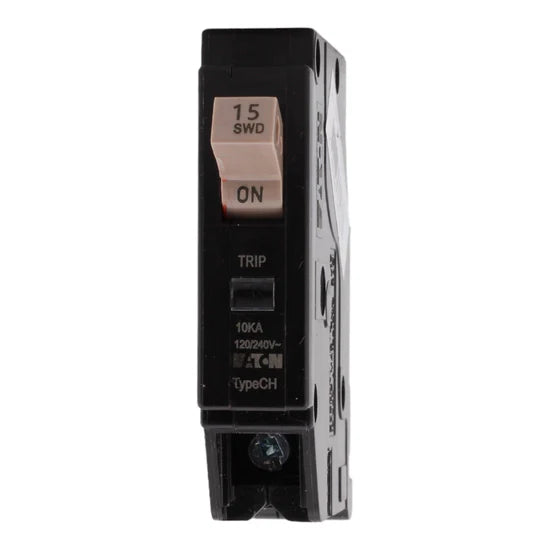

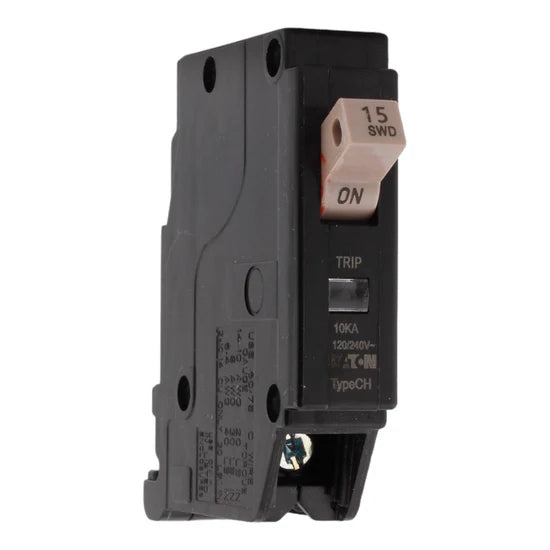

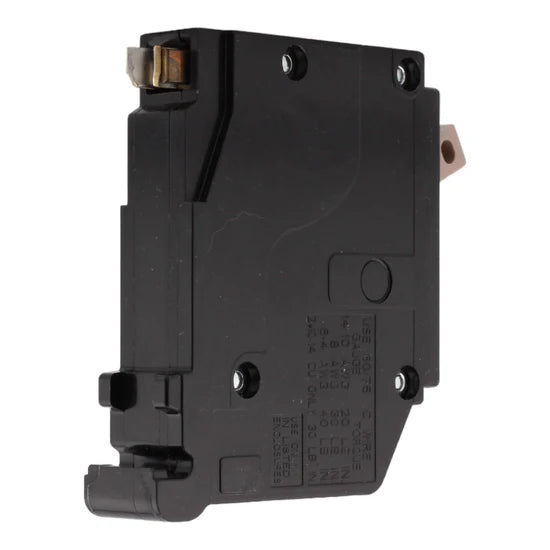

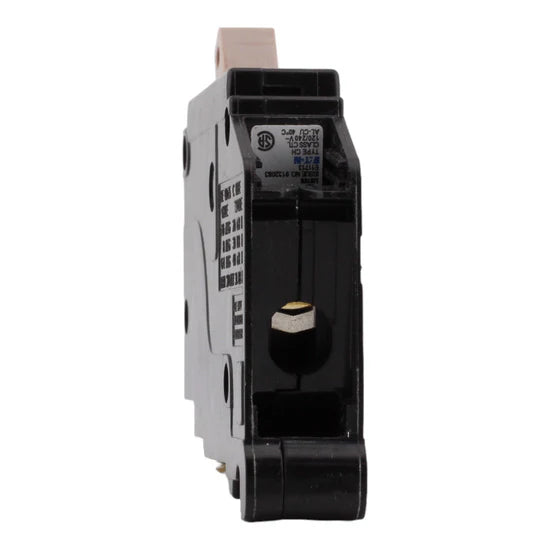

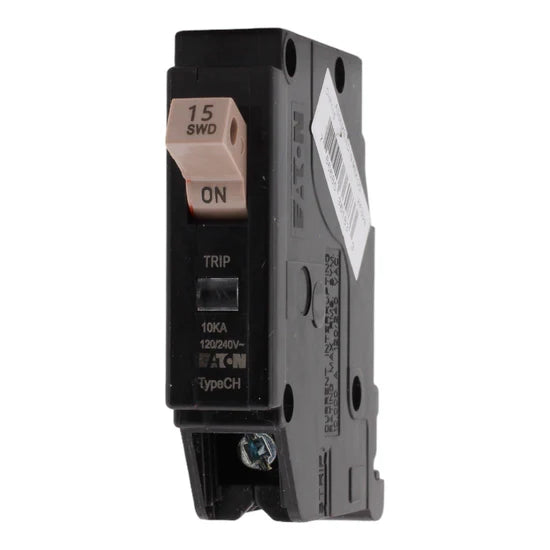

Eaton CHF115 15A 1-Pole Thermal-Magnetic Circuit Breaker – Plug-On – 120/240V

The Eaton CHF115 is a 15-amp, single-pole thermal-magnetic circuit breaker designed to provide reliable overcurrent and short-circuit protection in Eaton CH load centers. Rated for 120/240V AC with a 10kA interrupt capacity, this breaker is ideal for residential and commercial branch circuit applications. Its plug-on mounting design ensures secure installation, while lug terminals provide dependable copper or aluminum wire connections. Featuring a trip flag indicator and switching duty rating, the CHF115 delivers safe and consistent circuit protection. UL listed and HACR rated, it meets industry standards for HVAC and other equipment protection.

Voltage and Rating

• Current Rating: 15 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Thermal-Magnetic
• Number of Poles: 1-Pole
• Mounting Type: Plug-On
• Series: CH Series
• Application: Residential and commercial branch circuit protection
• Compatible Load Centers: Eaton CH load centers
• Special Features: Trip flag indicator, switching duty rated

Technical Specifications

• Wire Size Range:
• (1) #14–8 AWG
• (2) #14–10 AWG (Copper/Aluminum)
• Terminal Tightening Torque: 20 lb-in
• Connection Type: Lug terminals
• Operating Mechanism: Thermal-magnetic trip unit
• Interrupt Rating: 10 kAIC
• Certifications: UL Listed, HACR Rated

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: CHF115
• UPC: 786685361833

• Dimensions:

  • Height: 2.6 in
  • Width: 3.2 in
  • Depth: 0.7 in

• Weight: 0.25 lbs
