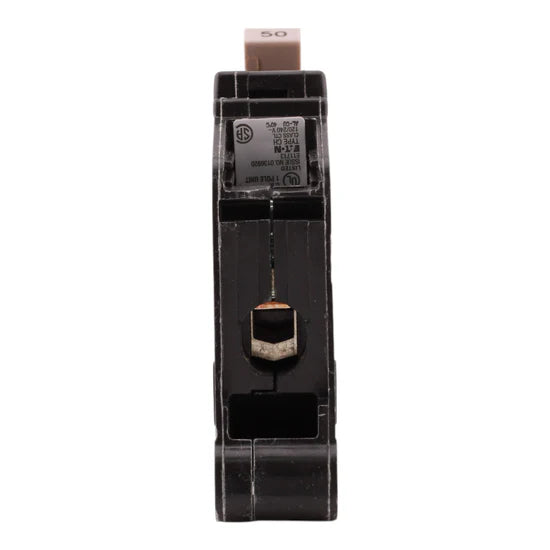

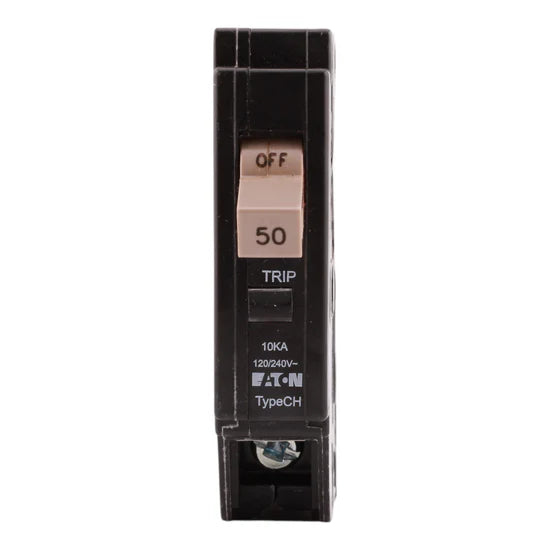

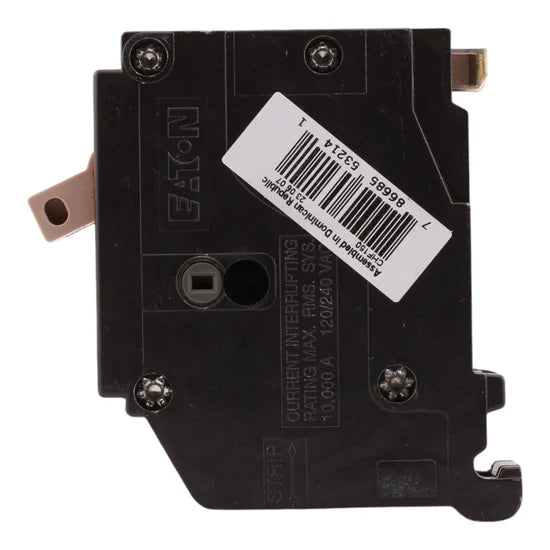

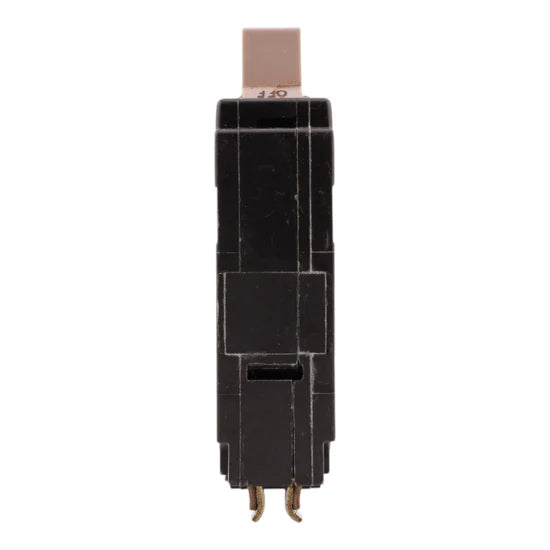

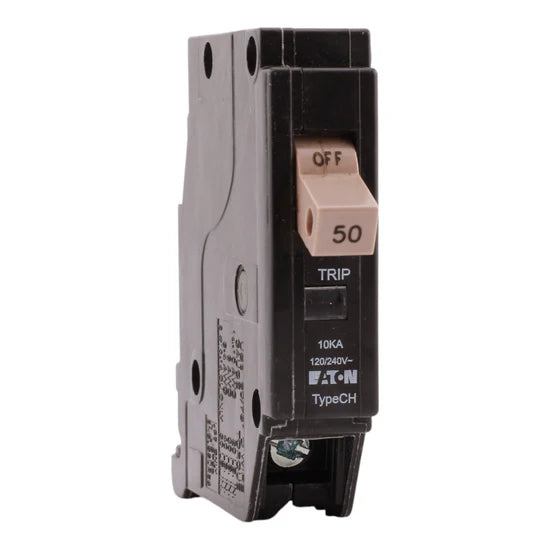

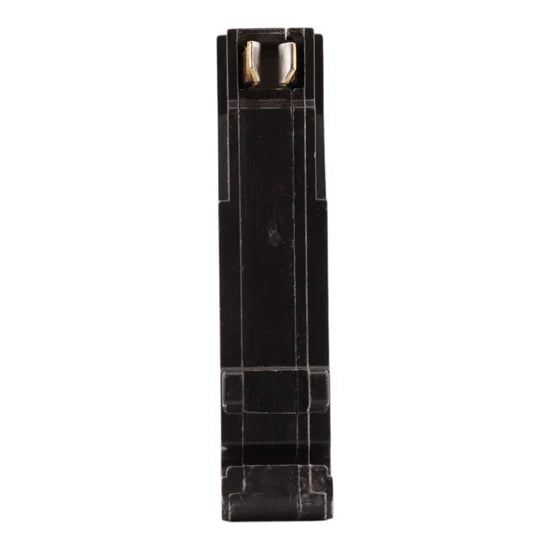

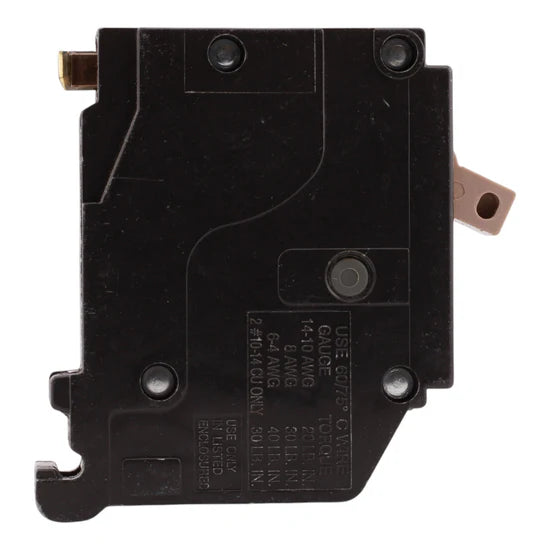

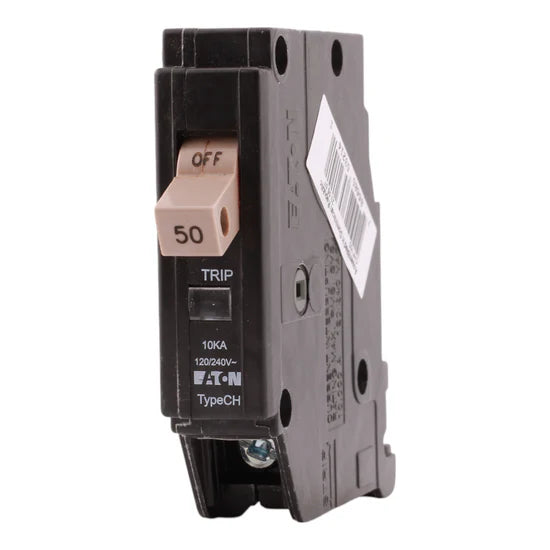

The Eaton CHF150 50 Amp single-pole thermal-magnetic circuit breaker provides reliable overload and short-circuit protection for residential and light commercial CH loadcenters. Designed in a 3/4-inch format, it efficiently fits compact panel spaces. The breaker features a trip flag indicator for easy visual confirmation of tripped status and supports #14–2 AWG copper or aluminum wiring. UL 489 listed and HACR rated, it ensures safe and dependable operation for 120/240V circuits.
Voltage and Rating
- Current Rating: 50 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 10 kAIC
- Poles: 1-Pole
Key Specifications
- Breaker Type: CHF Thermal-Magnetic Circuit Breaker
- Mounting Type: Plug-In for CH loadcenters
- Trip Type: Trip flag indication
- Wire Compatibility: #14–2 AWG Copper/Aluminum
- Panel Spaces Required: 3/4-inch (single-pole)
- Application: Residential CH loadcenters
- Certifications: UL 489
- Compliances: HACR Rated
Technical Specifications
- Operating Mechanism: Thermal-Magnetic
- Compatible Loadcenters: Eaton CH Series
Product Data
-
- Manufacturer: Eaton
- Brand: CH
- Model Number: CHF150
- UPC: 786685532141
- Dimensions: Height: 3 in; Width: 0.75 in; Depth: 3 in
- Weight: 0.25 lb
