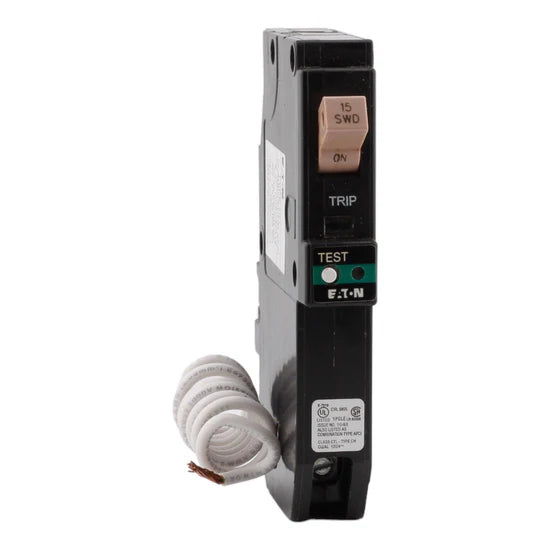

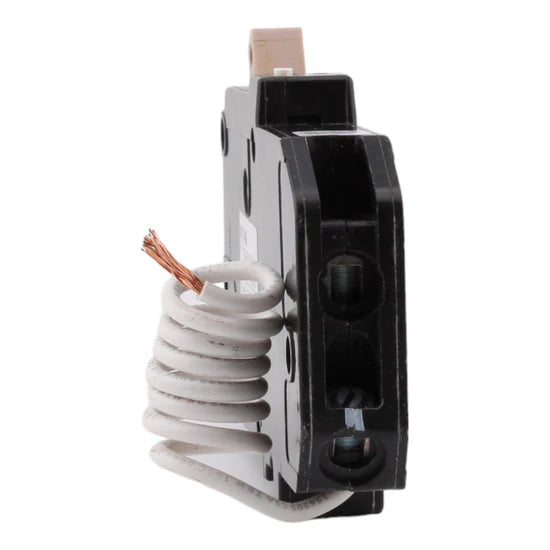

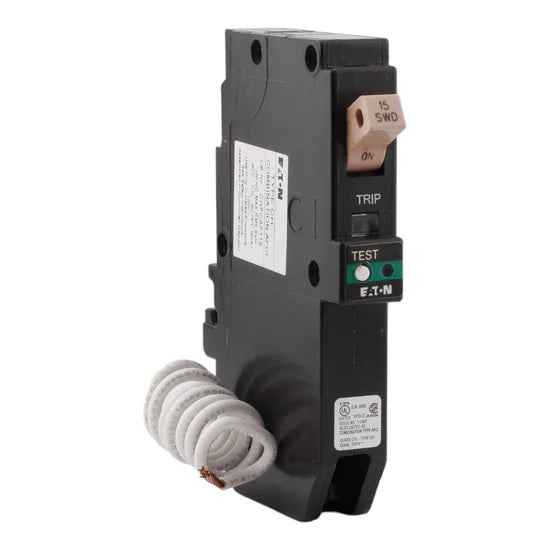

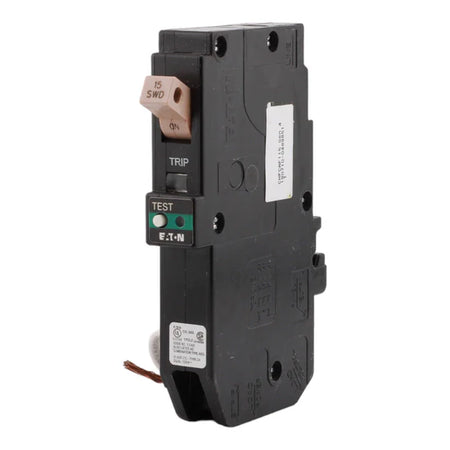

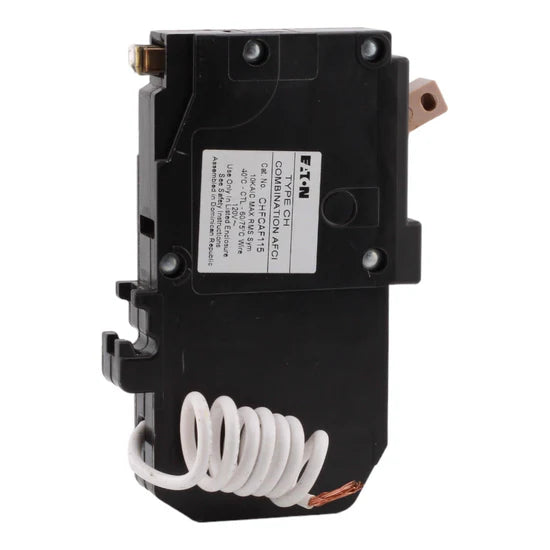

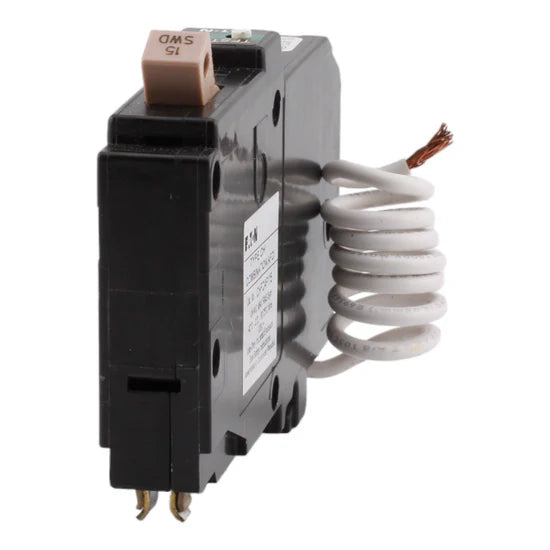

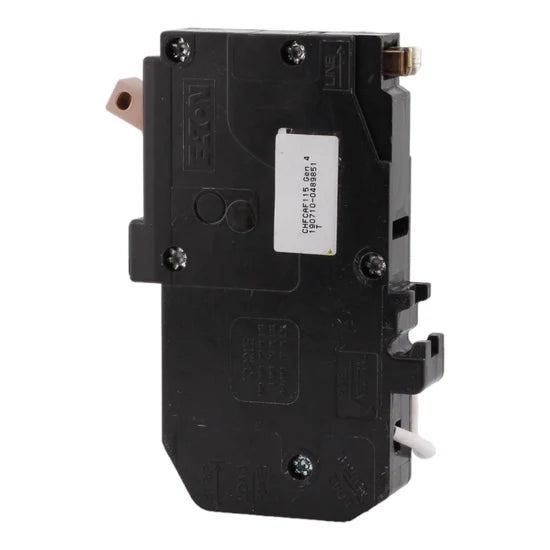

Eaton CHFCAF115 15A 1-Pole AFCI Circuit Breaker – Plug-In (Pigtail Neutral) – 120/240V

The Eaton CHFCAF115 is a 15 Amp single-pole Combination Arc Fault Circuit Interrupter (AFCI) designed for 120/240V circuits. Engineered for Eaton CH load centers, this breaker features a pigtail neutral connection for straightforward installation and reliable arc-fault protection in residential applications.

Voltage and Rating

• Current Rating: 15 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupt Rating: 10 kA

Key Specifications

• Breaker Type: Combination Arc Fault Circuit Interrupter (AFCI)
• Number of Poles: 1-Pole
• Mounting Type: Plug-On
• Connection Type: Pigtail Neutral
• Compatibility: Eaton CH Loadcenters

Technical Specifications

• Wire Size: Not specified
• Dimensions (H × W × L): 3.5 × 1 × 3 in
• Net Weight: 0.5 lb

Certifications

• UL Listed

Product Data

• • Manufacturer: Eaton
  • Model Number: CHFCAF115
  • UPC: 786685546179
