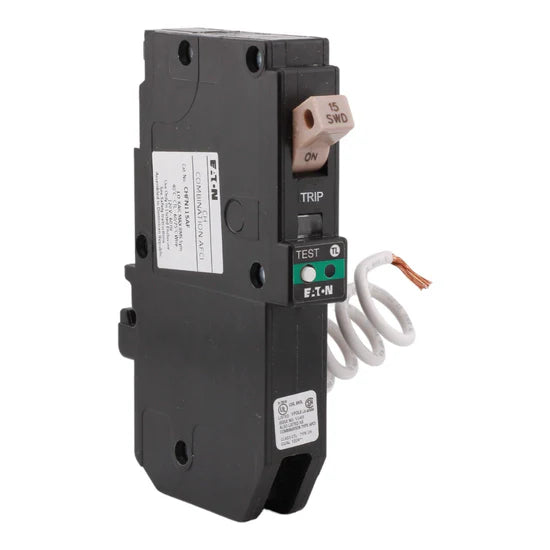

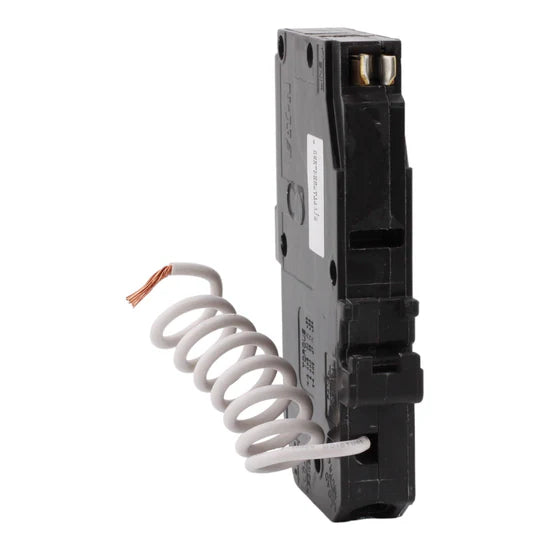

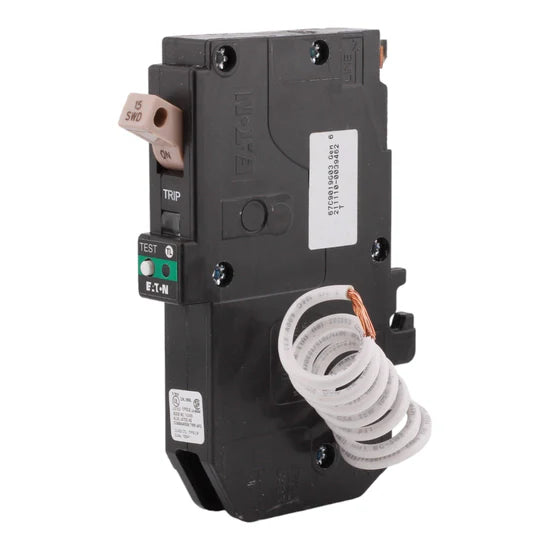

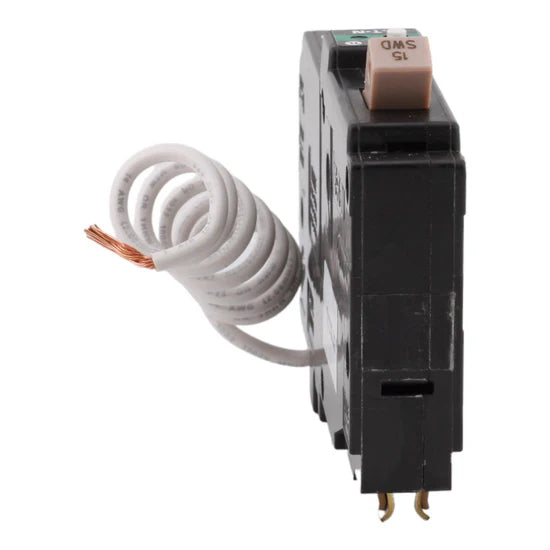

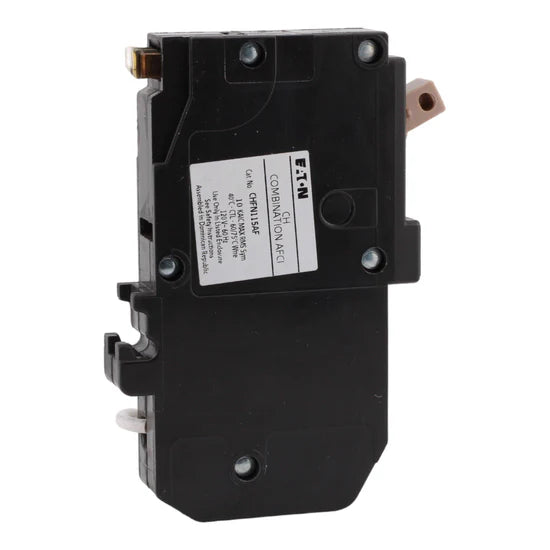

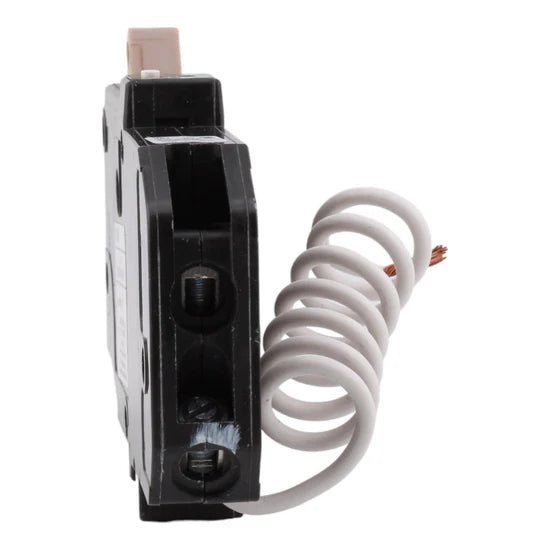

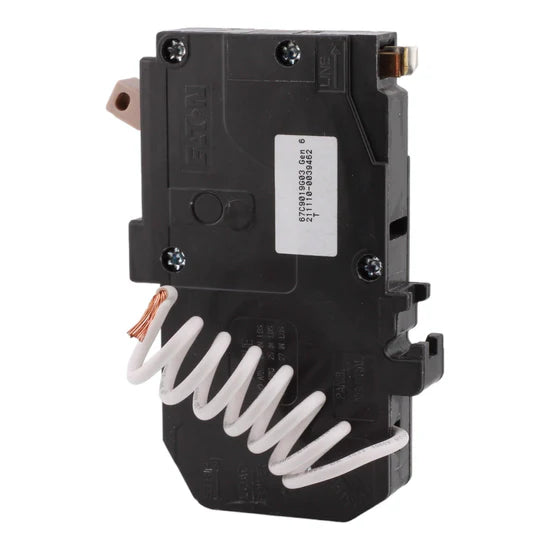

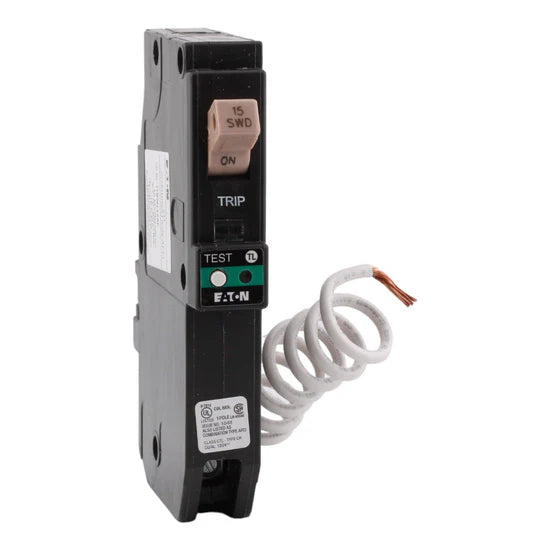

Eaton CHFN115AF 15A 1-Pole Combination AFCI Circuit Breaker – Pigtail Neutral – 120V

The Eaton CHFN115AF is a 15 Amp single-pole Combination Arc Fault Circuit Interrupter (AFCI) designed to provide advanced protection against arc faults, overloads, and short circuits. Engineered for use in Eaton Type CH load centers, this breaker features a pigtail neutral connection and thermal-magnetic operation, helping enhance electrical safety in residential branch circuits.

Voltage and Rating

• Current Rating: 15 Amps
• Voltage Rating: 120 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Combination Arc Fault Circuit Interrupter (AFCI)
• Number of Poles: 1-Pole
• Mounting Type: Plug-On with Pigtail Neutral
• Application: Arc-fault and branch circuit protection
• Compatibility: Eaton Type CH load centers

Technical Specifications

• Wire Size Range: #14 to #4 AWG
• Connection Type: Pigtail neutral lead
• Dimensions (H × W × L): 4.5 × 1.2 × 0.75 inches
• Weight: 0.55 lb

Certifications

• UL Listed
• CSA Approved

Product Data

• • Manufacturer: Eaton
  • Model Number: CHFN115AF
  • UPC: 786689058814
