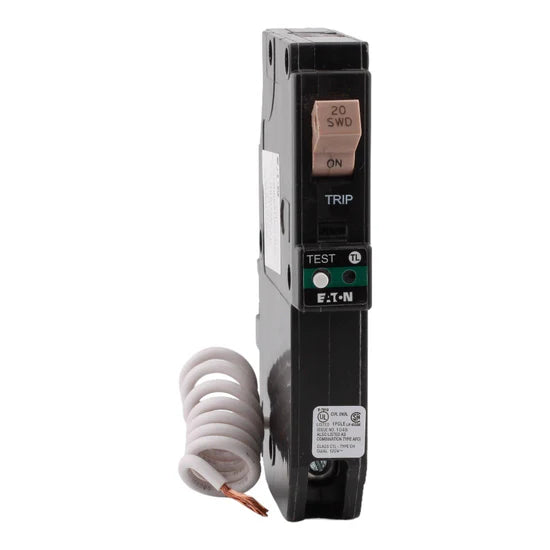

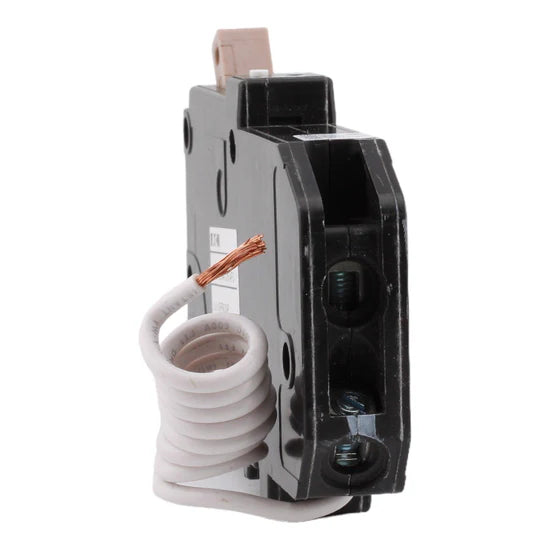

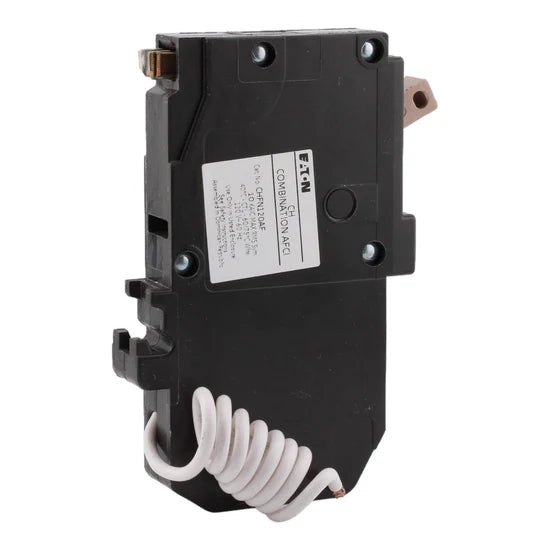

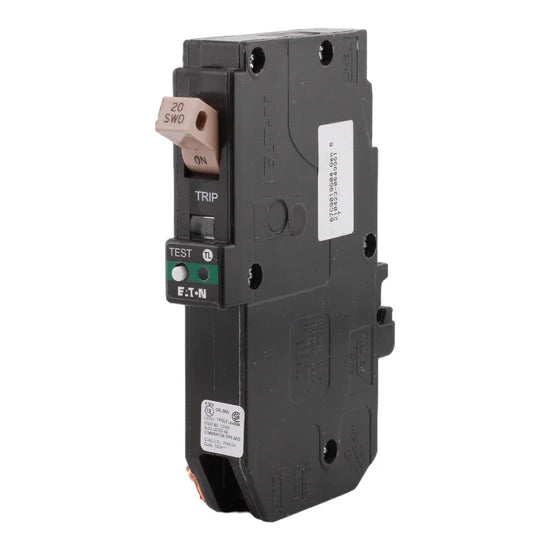

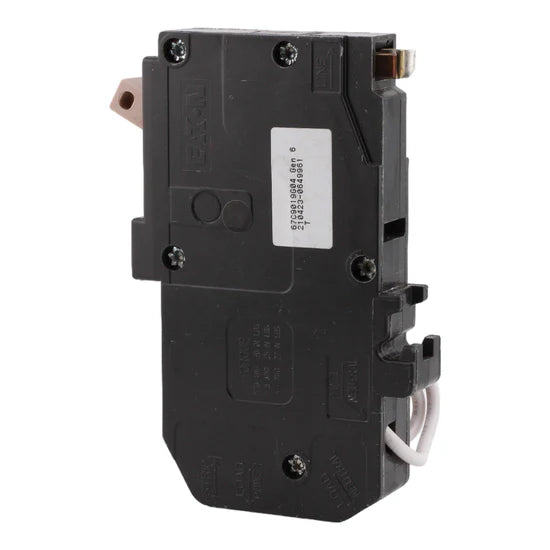

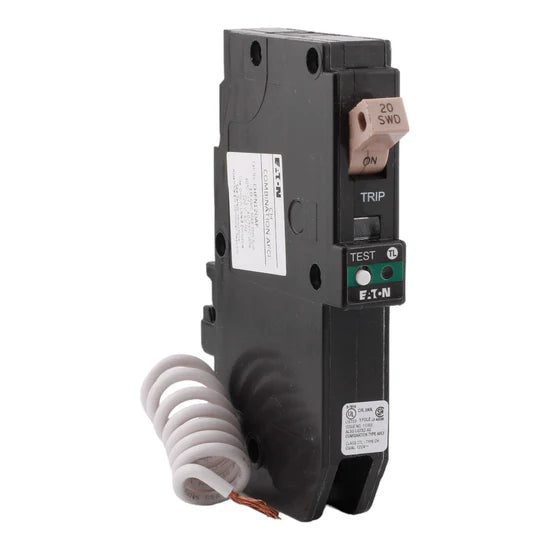

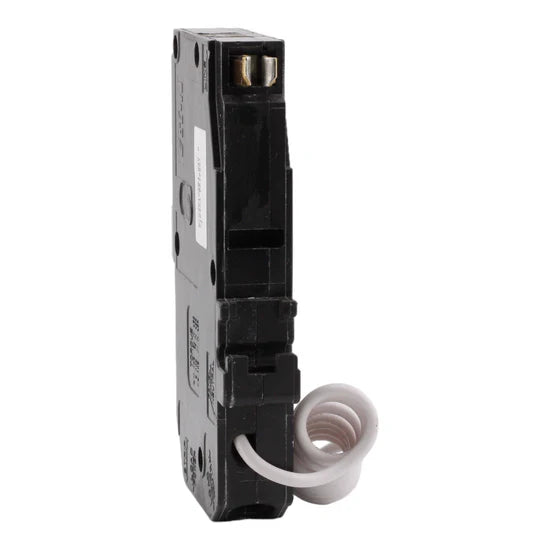

Eaton CHFN120AF 20A 1-Pole AFCI Circuit Breaker – Plug-On (Pigtail Neutral) – 120V

The Eaton CHFN120AF is a 20 Amp single-pole Arc Fault Circuit Interrupter (AFCI) breaker designed to help prevent electrical fires caused by arc faults. Specifically engineered for Eaton CH load centers, this breaker features a plug-on mounting design with a pigtail neutral connection for secure installation and dependable residential branch circuit protection.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Interrupt Rating: 10 kA

Key Specifications

• Breaker Type: Arc Fault Circuit Breaker (AFCI)
• Number of Poles: 1-Pole
• Mounting Type: Plug-On
• Connection Type: Pigtail Neutral
• Compatibility: Eaton CH Load Centers

Technical Specifications

• Wire Size:
• Copper: 14–8 AWG
• Aluminum: 12–8 AWG
• Net Weight: 0.5 lb

Certifications

• UL Listed
• CSA Approved

Product Data

• • Manufacturer: Eaton
  • Model Number: CHFN120AF
  • UPC: 786689058845
