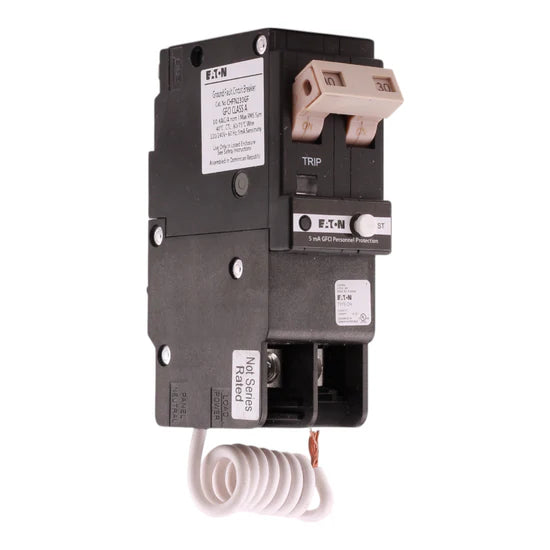

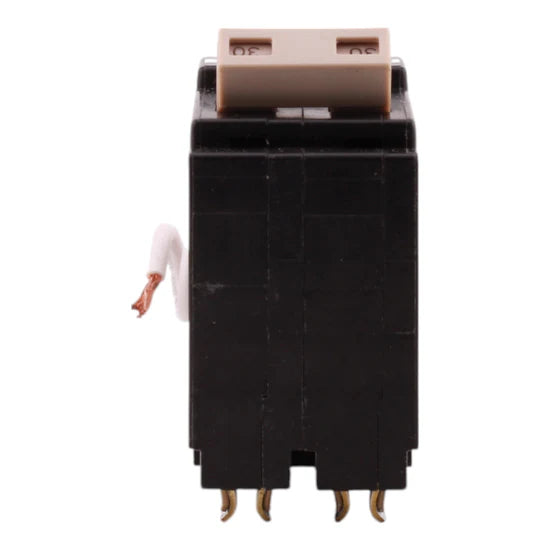

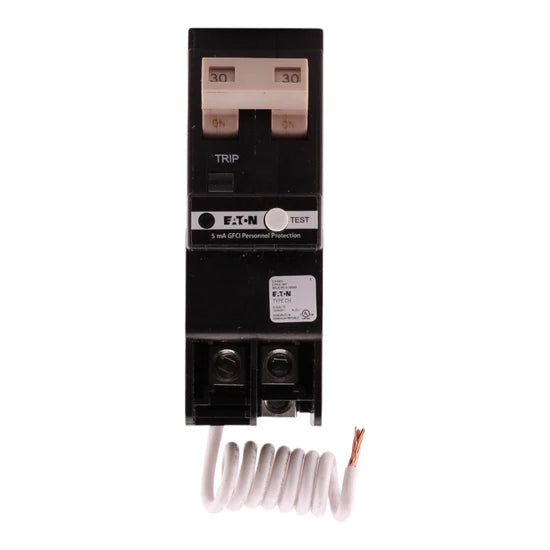

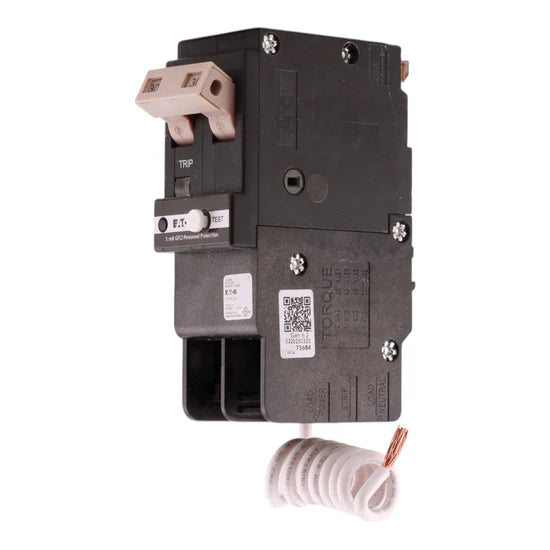

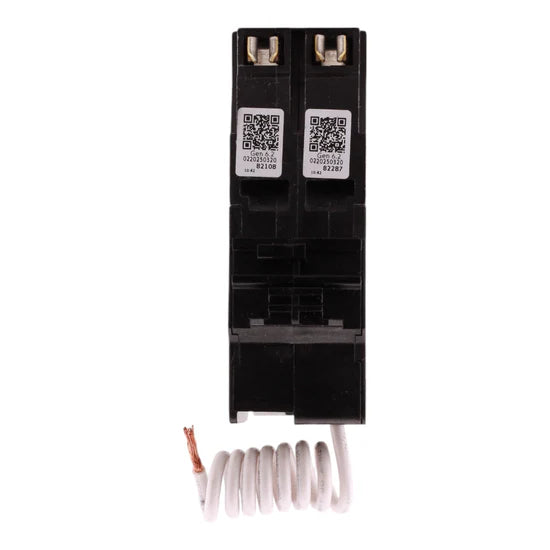

The Eaton CHFN230GF pigtail neutral circuit breaker provides dependable 30A, 2-pole ground-fault protection for 120/240V circuits. Designed for Eaton CH load centers, this GFCI breaker features 5 mA trip sensitivity to help protect against electrical shock in residential applications such as kitchens, bathrooms, and outdoor areas.
Voltage and Rating
- Amperage: 30 Amps
- Poles: 2-Pole
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 10 kAIC
- Trip Sensitivity: 5 mA ground fault protection
Key Specifications
- Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
- Mounting Type: Plug-In
- Product Range: CH
- Connection Type: Pigtail Neutral
- Application: Residential branch circuit protection
- Compatible Panels: Eaton CH load centers
Technical Specifications
- Wire Size Range: #14–3 AWG Copper/Aluminum
- Tightening Torque: 35.4 lb-in
- Certifications: UL 943 Listed
Product Data
- Manufacturer: Eaton
- Brand: Eaton
- Model Number: CHFN230GF
- UPC: 786689537821
Dimensions
-
- Height: 3.5 in
- Width: 2.25 in
- Depth: 6.1 in
- Weight: 1.0 lbs
