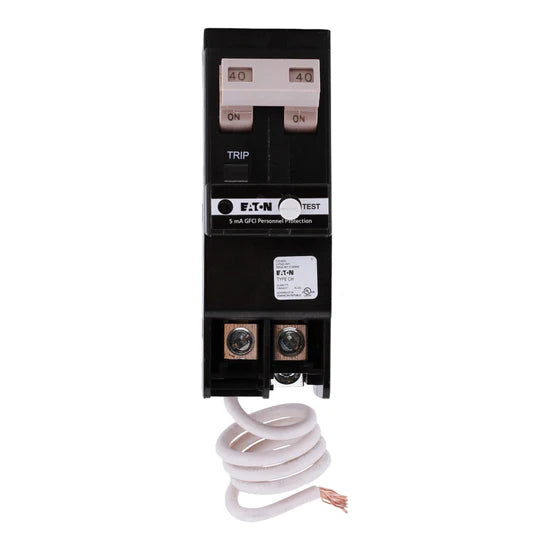

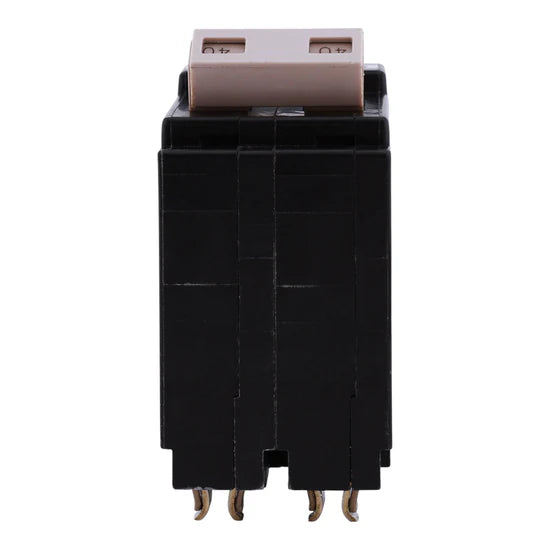

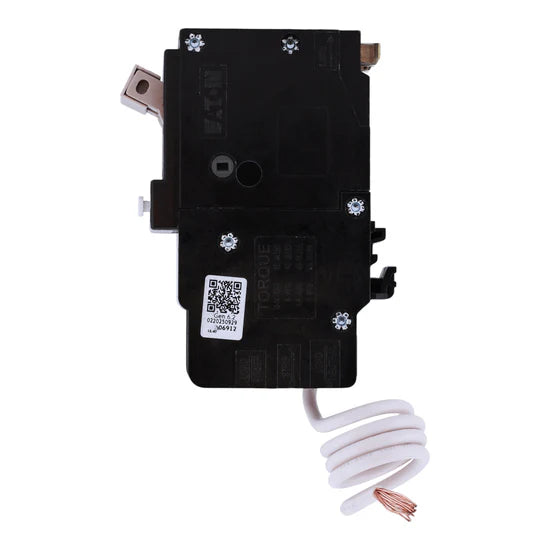

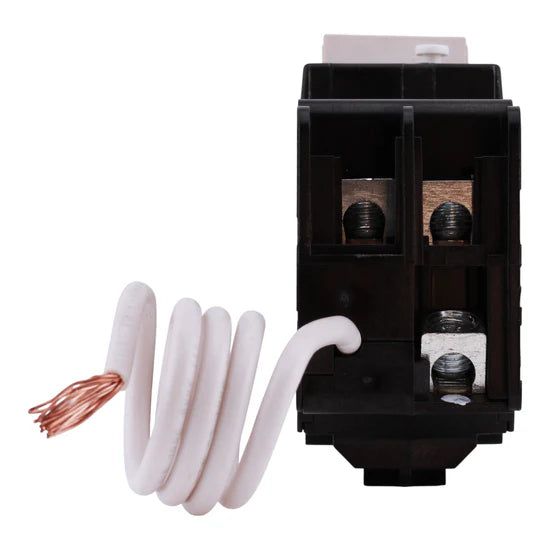

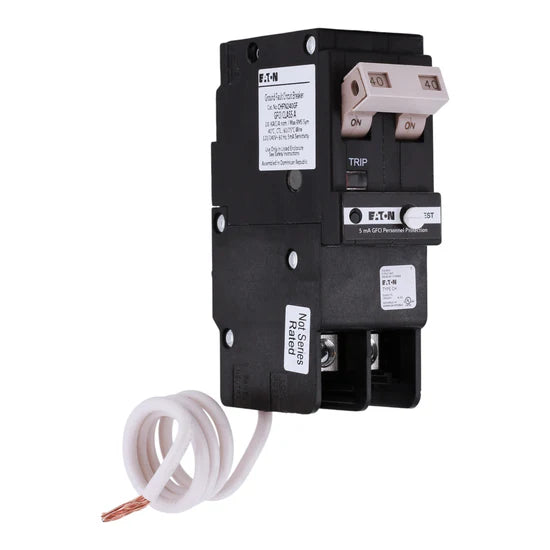

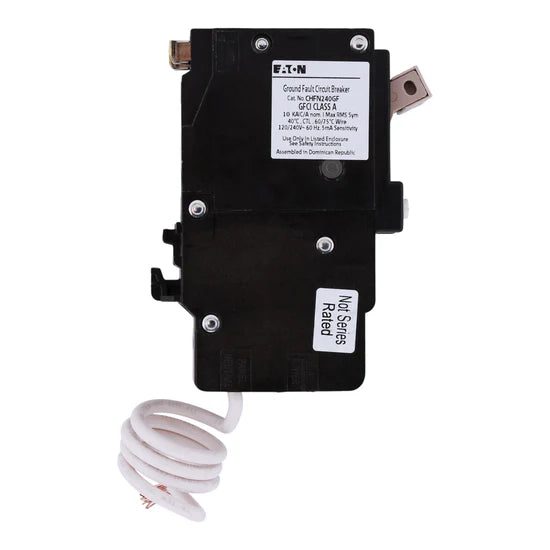

Eaton CHFN240GF 40A 2P GFCI – Plug-In – 120/240V

The Eaton CH CHFN240GF is a 2-pole GFCI circuit breaker with pigtail neutral, providing Class A 5 mA personnel ground-fault protection for 120/240V circuits. Designed for Eaton CH loadcenters, it delivers reliable protection against electrical shock hazards in residential and light commercial applications. The breaker features fast trip response and plug-in mounting for quick and secure installation.

Electrical Ratings:

• Amperage: 40 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Trip Sensitivity: Class A 5 mA

Key Specifications:

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Mounting Mode: Plug-In
• Connections Terminals: Pigtail neutral
• Wire Size: #14–3 AWG Cu/Al
• Tightening Torque: 25 lb-in

Dimensions & Weight:

• • Height: 3.5 in
  • Width: 2.25 in
  • Depth: 6.1 in
  • Weight: 1.0 lb

Certifications:

• UL 943 Listed

Product Data:

• • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: CH (for Eaton CH loadcenters and equipment)
  • Model Number: CHFN240GF
  • UPC: 786689537838
