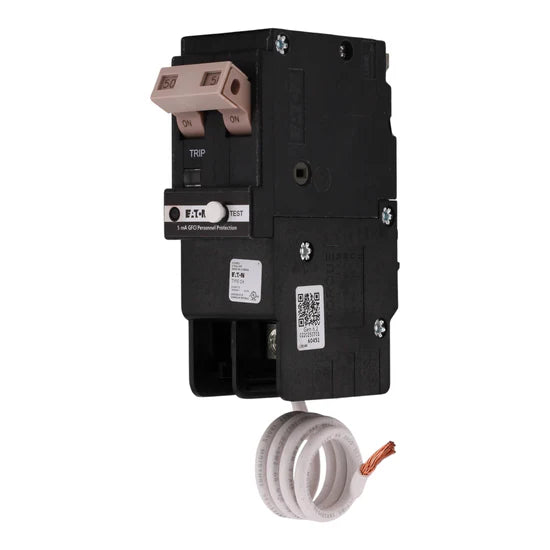

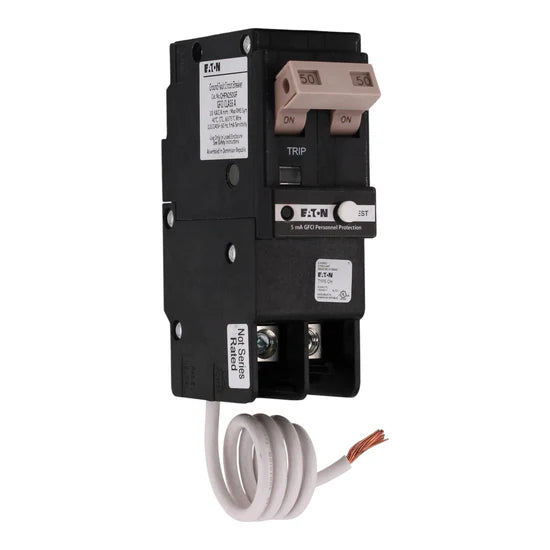

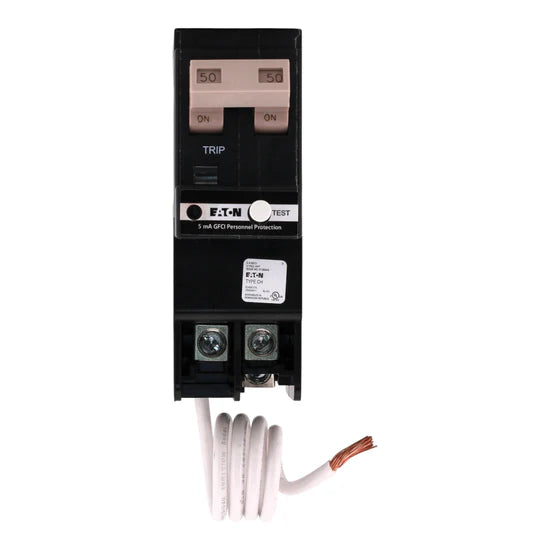

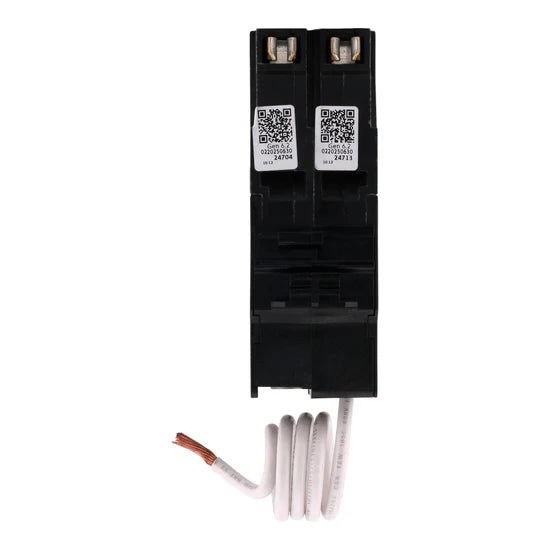

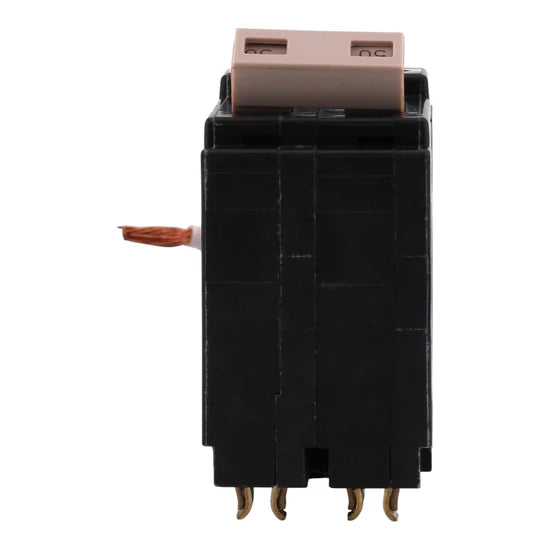

The Eaton CHFN250GF is a 2-pole GFCI circuit breaker engineered to provide reliable 50A ground-fault protection for 120/240V circuits in Eaton CH loadcenters. Featuring a pigtail neutral design and Class A 5 mA trip sensitivity, it delivers fast and dependable personnel protection against electrical shock hazards. With a 10 kAIC interrupt rating and thermal-magnetic operation, this breaker is well suited for residential and light commercial applications requiring code-compliant GFCI protection.
Electrical Ratings:
- Amperage: 50 Amps
- Poles: 2-Pole
- Voltage: 120/240 Volts AC
- Interrupt Rating: 10 kAIC
- Trip Sensitivity: 5 mA (Class A)
Key Specifications:
- Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
- Mounting Mode: Plug-in

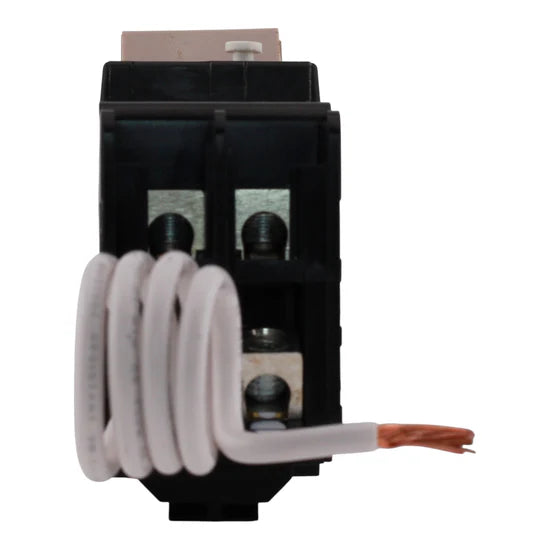

- Connections Terminals: Pigtail neutral
- Wire Size: #14–3 AWG Cu/Al
- Tightening Torque: 25 lb-in
- Trip Type: Thermal-Magnetic
Dimensions & Weight:
- Height: 3.5 in
- Width: 2.25 in
- Depth: 6.1 in
- Weight: 1.0 lb
Certifications:
-
UL 943
Product Data:
- Manufacturer: Eaton
- Brand: Eaton
- Product Range: CH
- Model Number: CHFN250GF
- UPC: 786689537852
