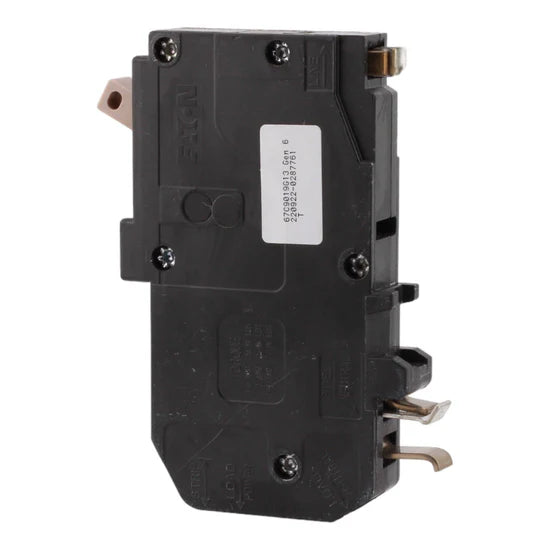

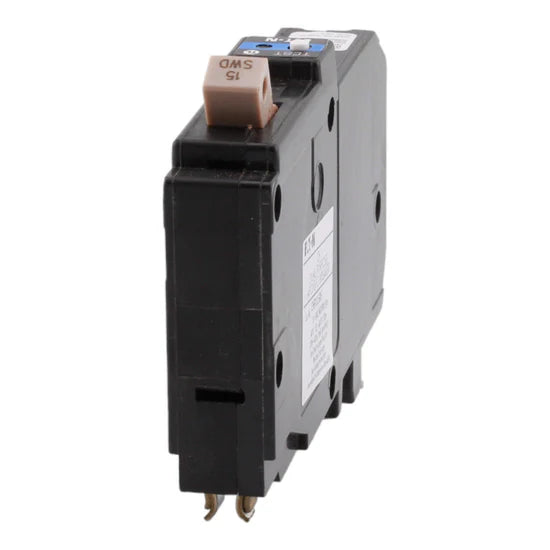

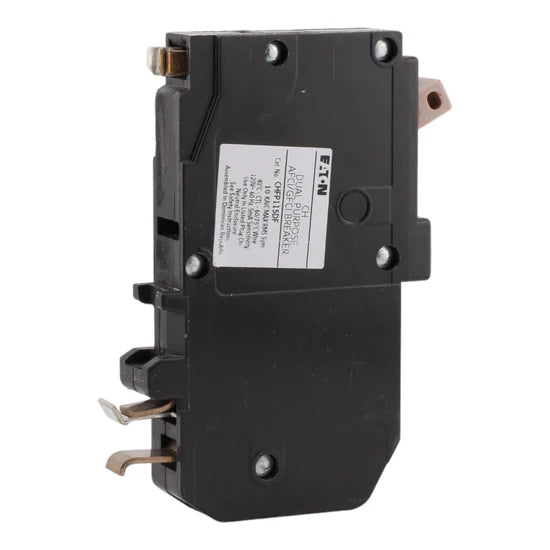

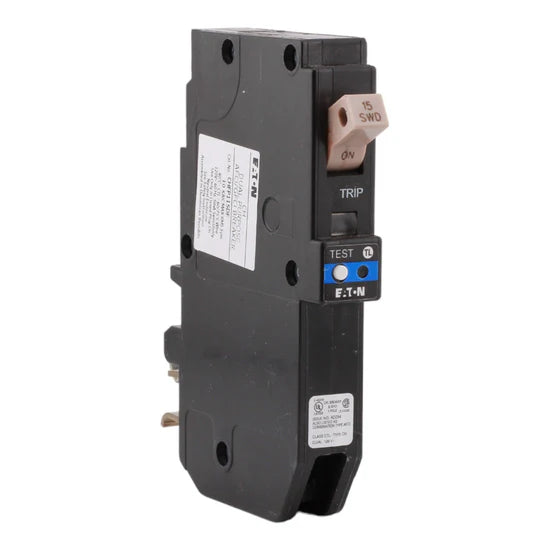

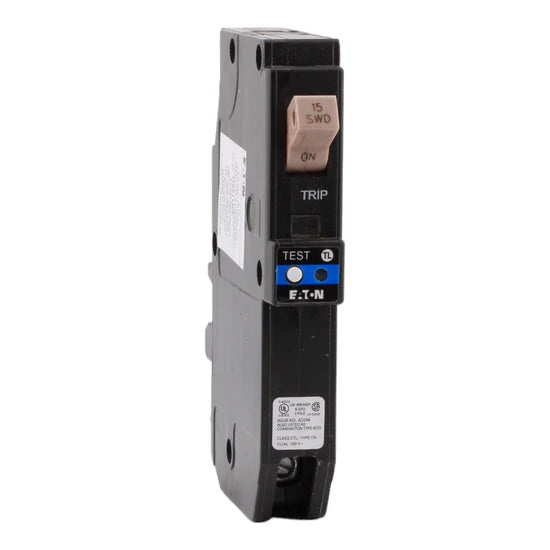

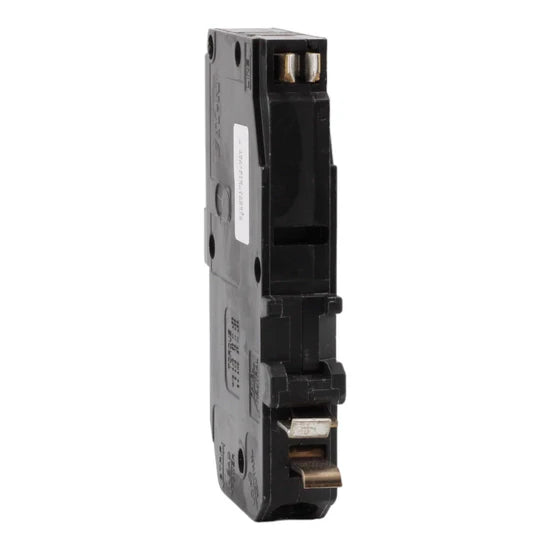

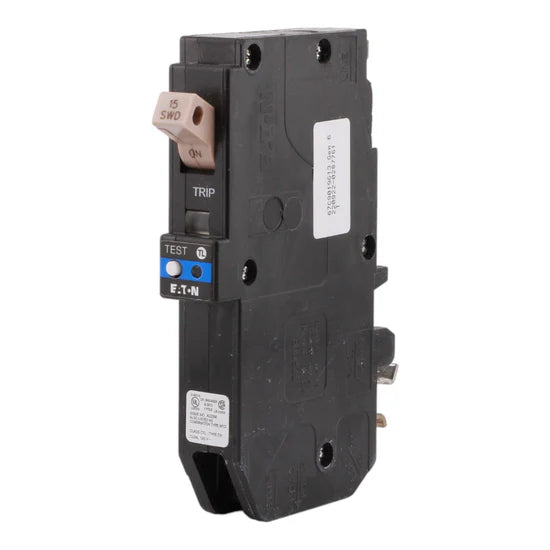

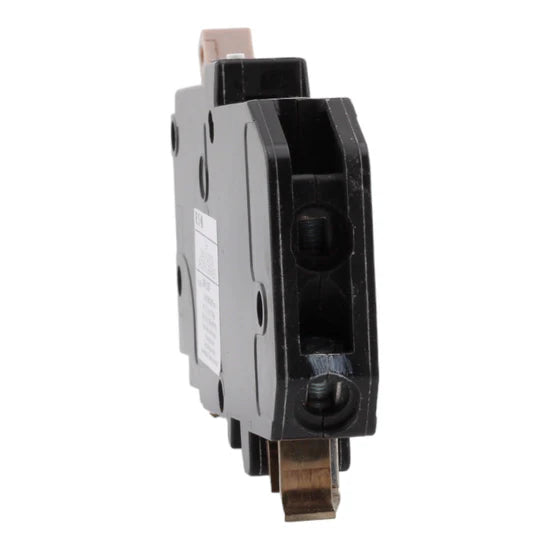

Eaton CHFP115DF 15A 1-Pole Dual-Function AFCI/GFCI Circuit Breaker – Plug-On Neutral – 120V AC

The Eaton CHFP115DF is a 1-pole combination breaker providing both arc-fault (AFCI) and ground-fault (GFCI) protection for 120V circuits in Eaton CH load centers. Its plug-on neutral design ensures a secure, straightforward installation while delivering reliable protection against arc faults and ground faults.

With a 10 kA interrupt rating, this breaker offers dependable performance, helping prevent electrical hazards and maintain safe circuit operation.

Voltage and Ratings

• Voltage Rating: 120 Volts AC
• Current Rating: 15 Amps
• Interrupting Capacity: 10 kA

Key Specifications

• Breaker Type: Combination AFCI / GFCI
• Poles: 1-Pole
• Series: CH
• Mounting Type: Plug-on
• Connection Type: Plug-on neutral
• Compatible Panels: Eaton CH load centers and related equipment

Technical Specifications

• Wire Size: #14–6 AWG (Copper or Aluminum)
• Tightening Torque: 14–16 lb-in

• Dimensions:

  • Height: 1.2 in
  • Width: 0.75 in
  • Depth: 3.4 in
  • Weight: 0.45 lbs

• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: CHFP115DF
• UPC: 786689058937
• Product Range: CH
