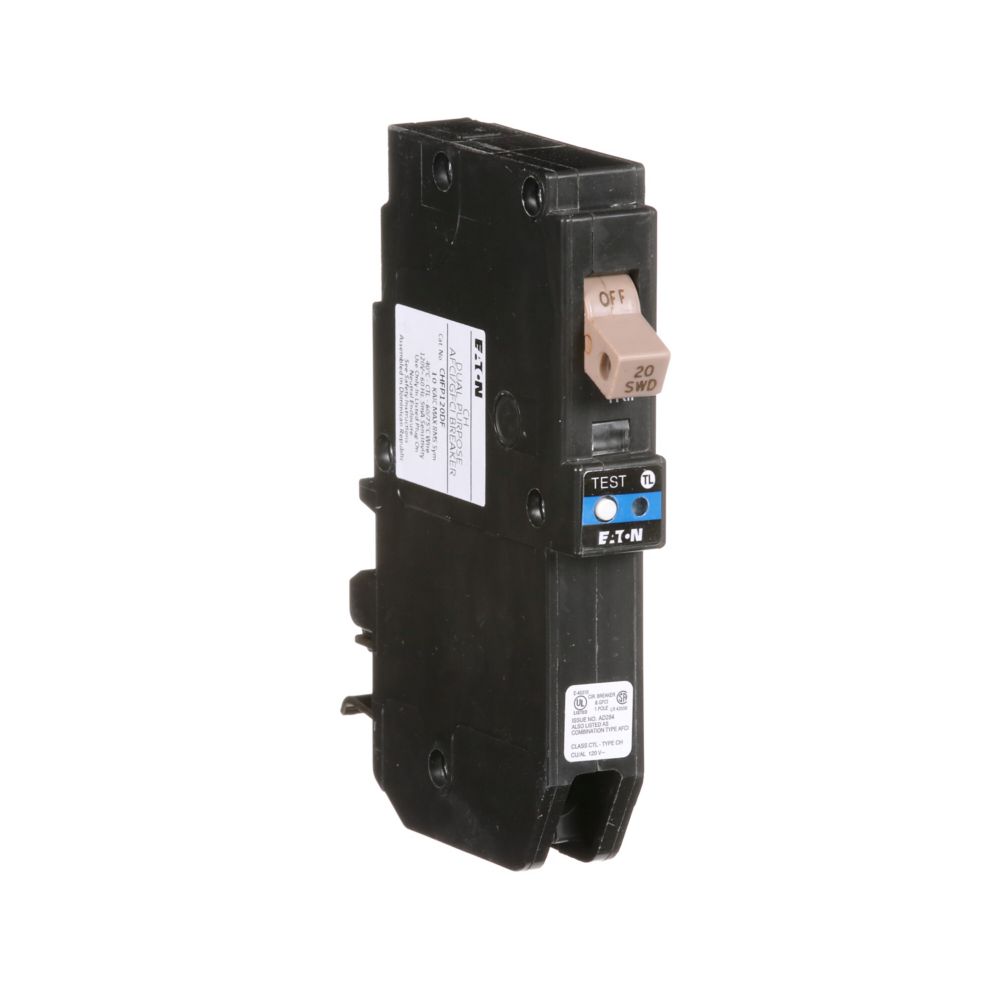

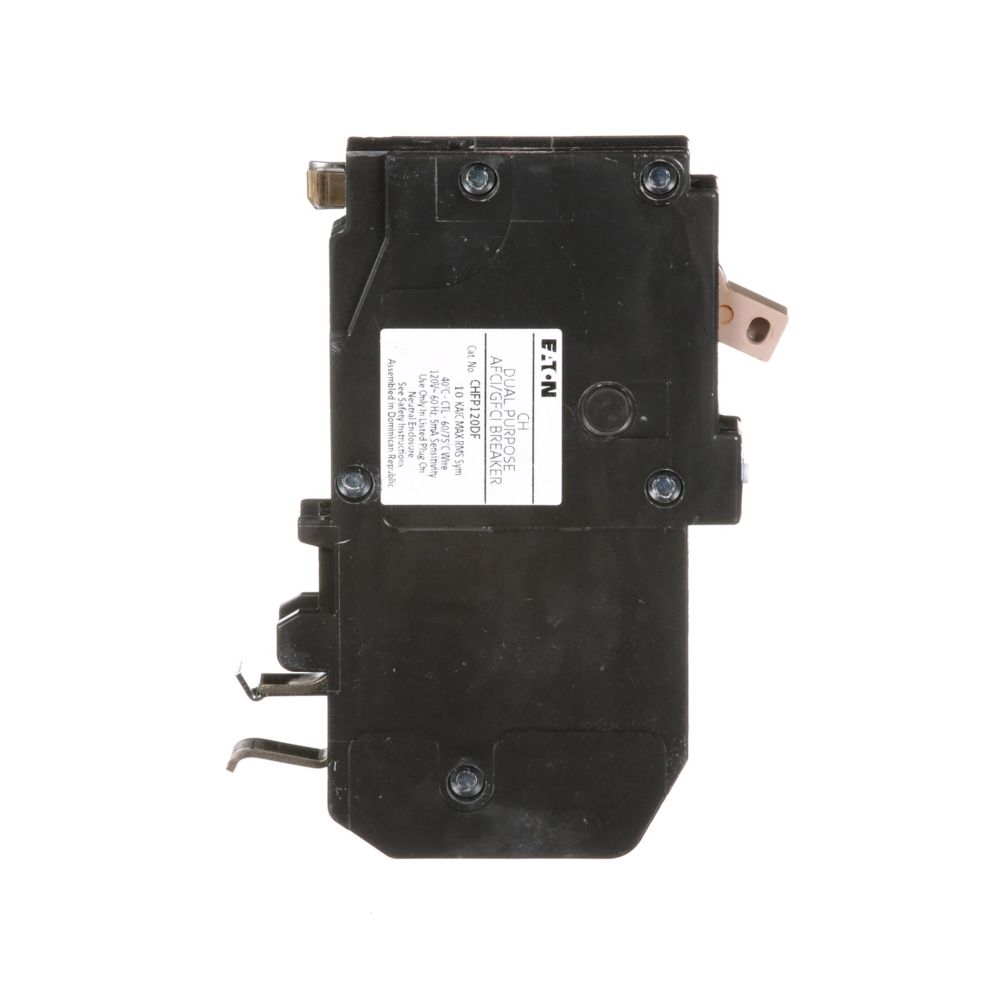

Eaton CHFP120DF 20A 1-Pole Dual-Function AFCI/GFCI Circuit Breaker – Plug-On Neutral – 120V AC

The Eaton CHFP120DF is a 1-pole combination circuit breaker that delivers both arc-fault (AFCI) and ground-fault (GFCI) protection for 120V circuits in Eaton CH load centers. Its plug-on neutral design allows for secure, straightforward installation while providing reliable protection against arc faults and ground faults.

With a 10 kA interrupt rating, this breaker ensures dependable operation and enhanced safety for circuits where dual-function protection is needed.

Voltage and Ratings

• Voltage Rating: 120 Volts AC
• Current Rating: 20 Amps
• Interrupting Capacity: 10 kA

Key Specifications

• Breaker Type: Combination AFCI / GFCI
• Poles: 1-Pole
• Series: CH
• Mounting Type: Plug-in
• Connection Type: Plug-on neutral
• Compatible Panels: Eaton CH load centers and related equipment

Technical Specifications

• Wire Size: AWG 14 – AWG 6 (Copper or Aluminum)
• Tightening Torque: 20 lbf-in (2.3 N·m)

• Dimensions:

  • Height: 1.2 in
  • Width: 0.75 in
  • Depth: 3.4 in

• Weight: 0.45 lbs

• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: CHFP120DF
• UPC: 786689058968
• Product Range: CH
