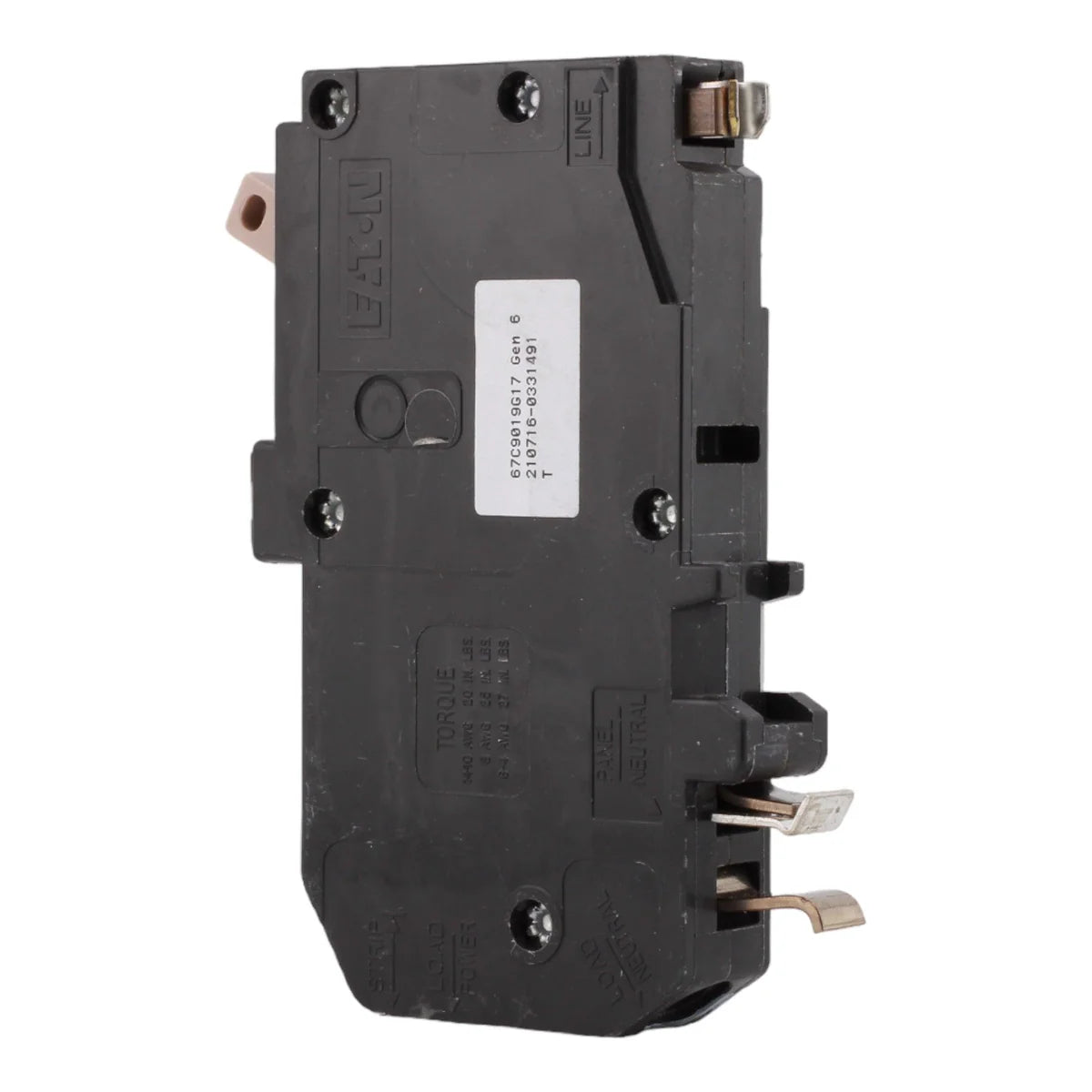

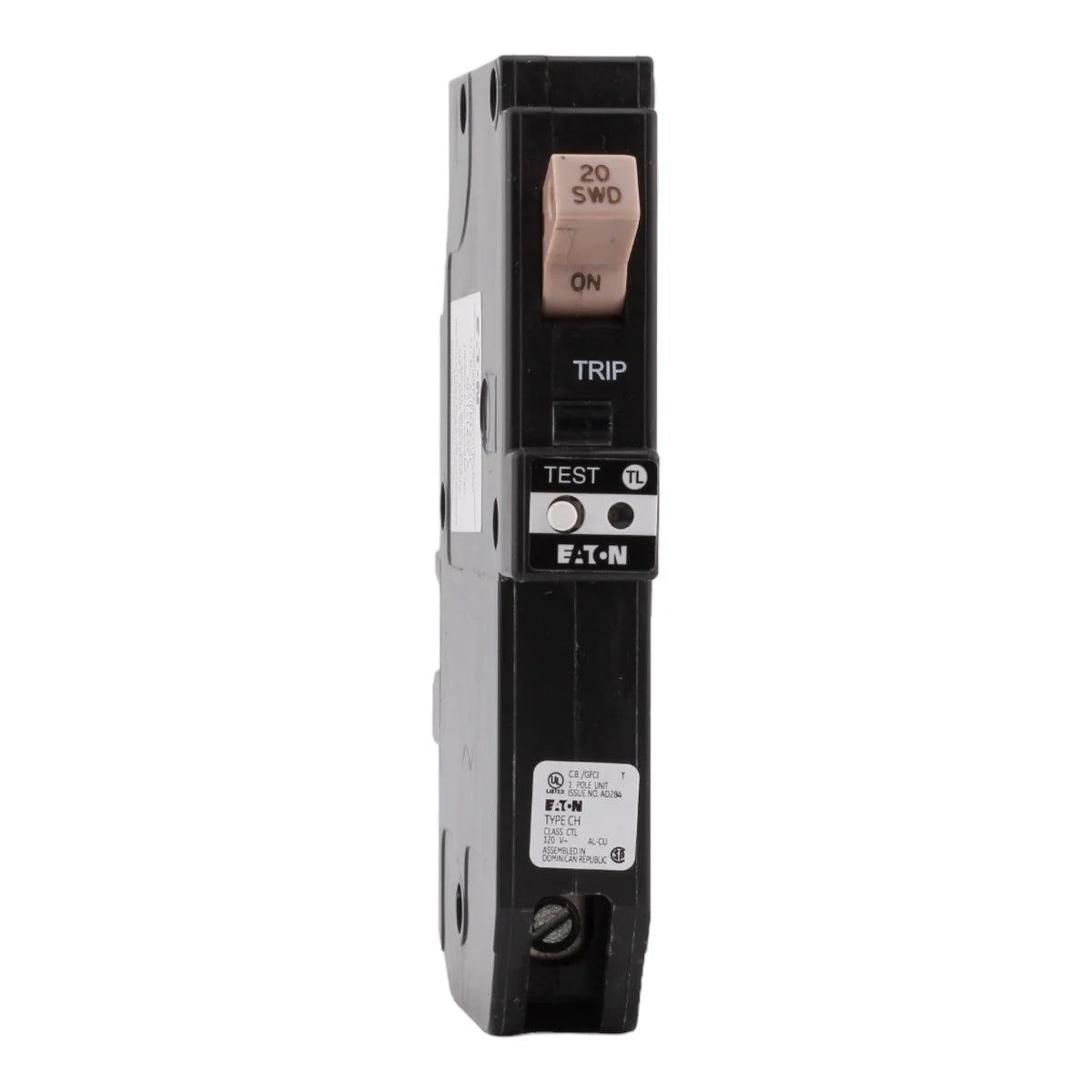

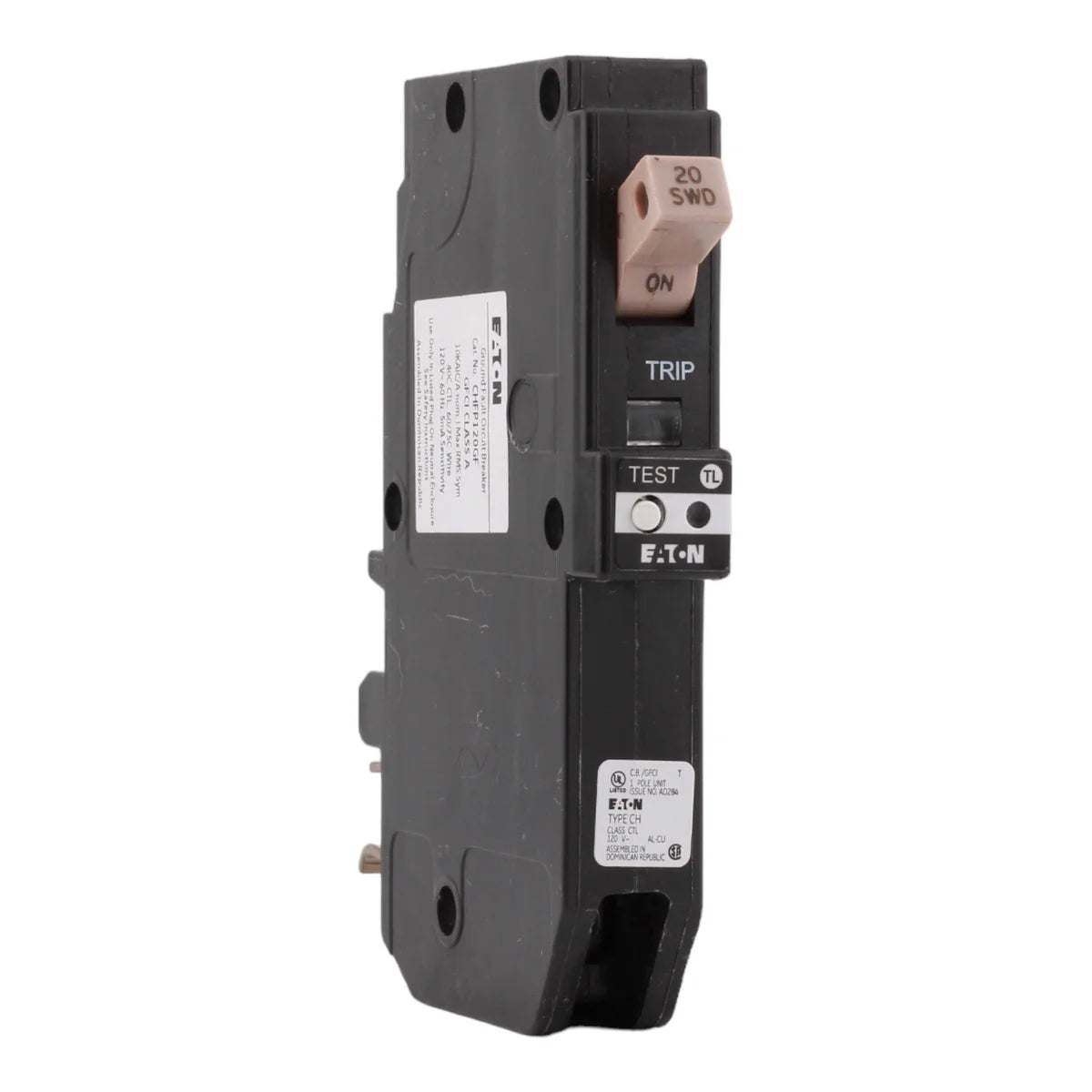

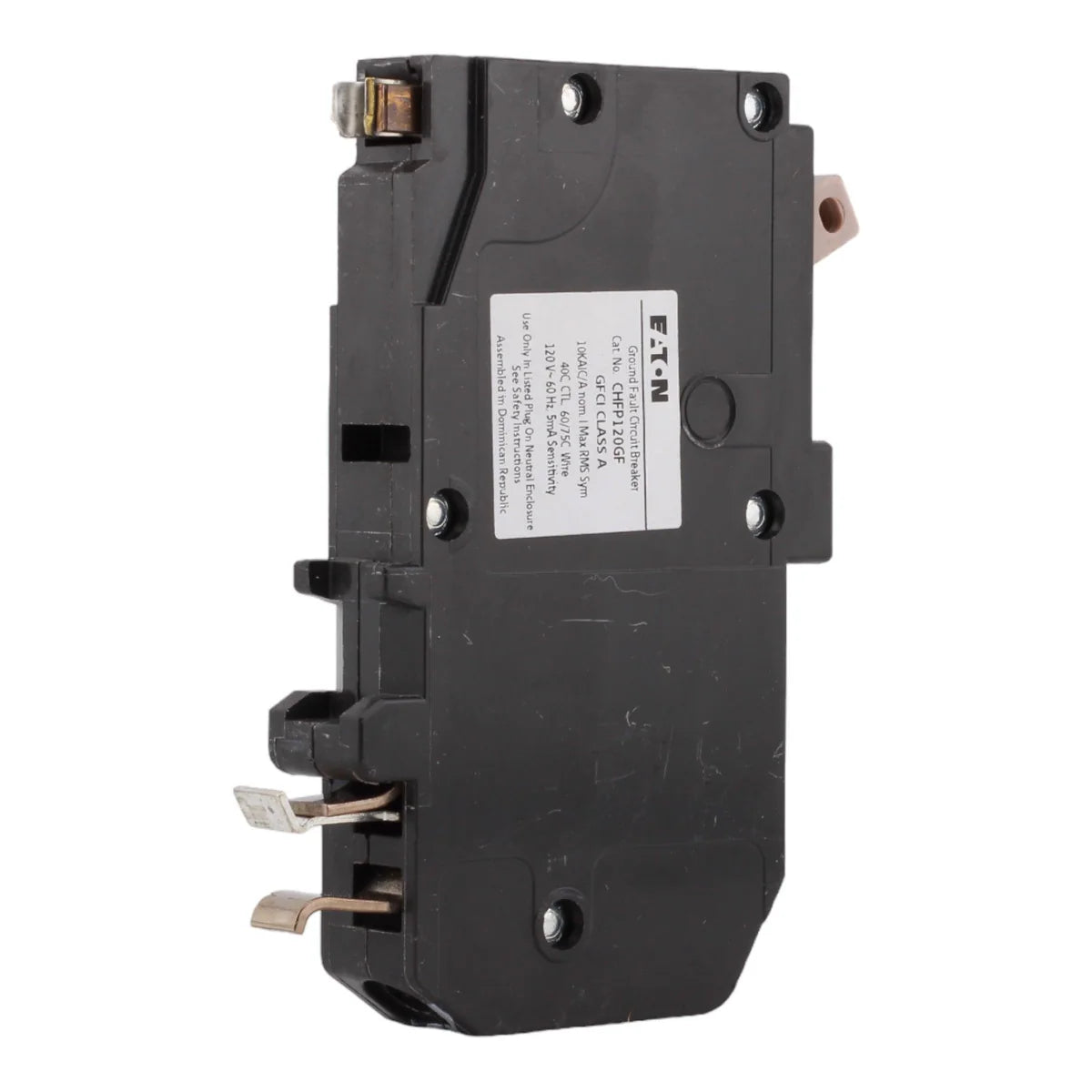

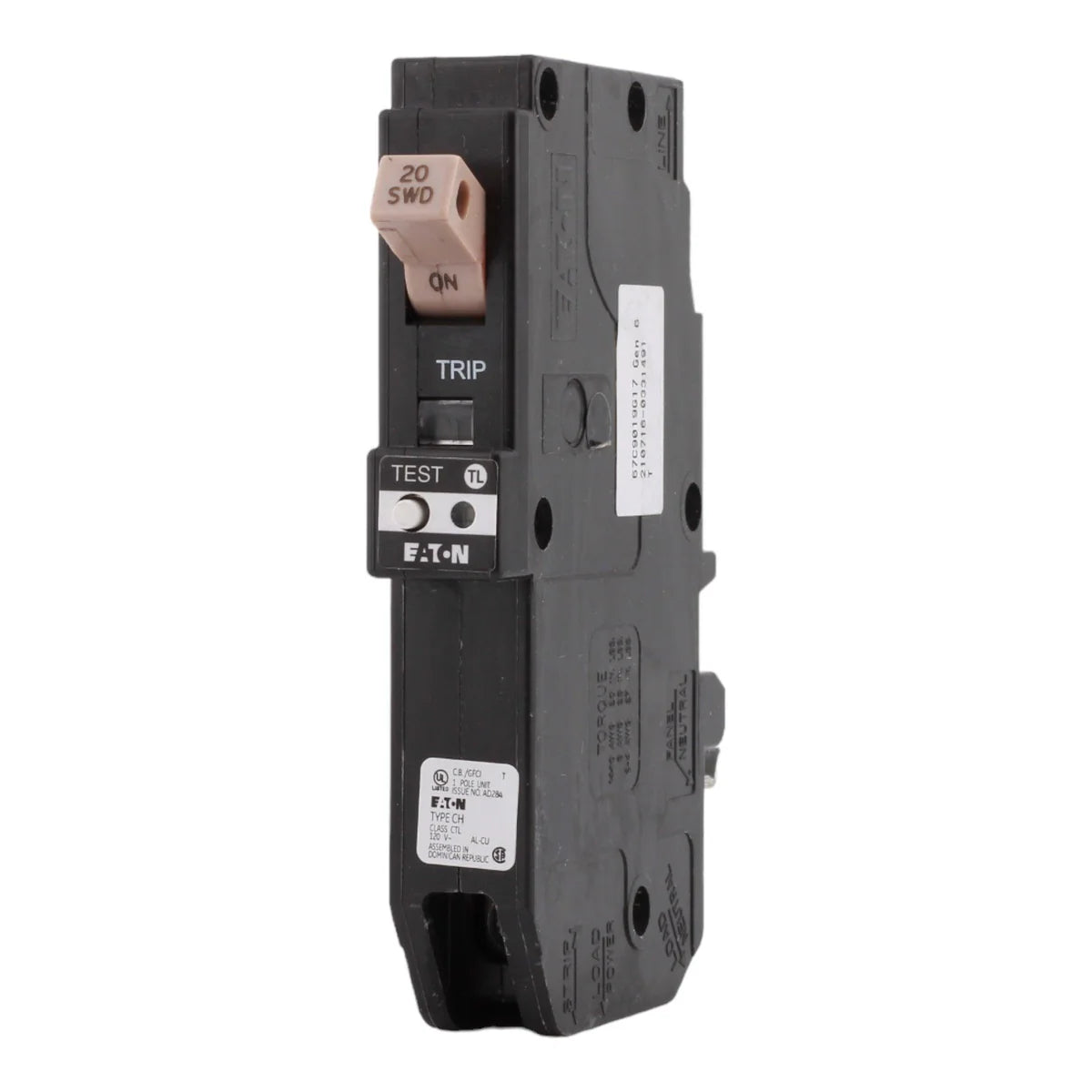

Eaton CHFP120GF CH Series 20A 1-Pole GFCI Plug-On Neutral Circuit Breaker – 120/240V
Couldn't load pickup availability
Ask an expert
The Eaton CHFP120GF 20 Amp single-pole GFCI circuit breaker provides dependable ground-fault protection for residential electrical systems. Specifically designed for Eaton CH load centers, it enhances safety by automatically interrupting power when a ground fault is detected. The plug-on neutral design helps reduce installation time and wiring complexity, making it an efficient and reliable choice for electricians, contractors, and homeowners seeking trusted circuit protection.
Voltage and rating
- Current Rating: 20 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 10 kAIC
- Frequency: 50/60 Hz
Key Specifications
- Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
- Number of Poles: 1-Pole
- Mounting Type: Plug-On Neutral
- Series: CH Series
- Application: Residential branch circuit protection
- Compatible Load Centers: Eaton CH load centers
Technical Specifications
- Wire Size Range: #14–6 AWG
- Terminal Tightening Torque: 14–16 lb-in
- Connection Type: Plug-on neutral terminal
- Operating Mechanism: Thermal-magnetic with integrated GFCI protection
- Interrupt Rating: 10 kAIC
- Certifications: UL Listed, CSA Approved
Product Data
- Manufacturer: Eaton
- Model Number: CHFP120GF
- UPC: 786689058975
- Dimensions:
- Height: 3.9 in
- Width: 1.8 in
- Depth: 6.5 in
- Weight: 0.5 lbs
- Type Circuit Breakers
- Vendor Eaton
- Brand Eaton
