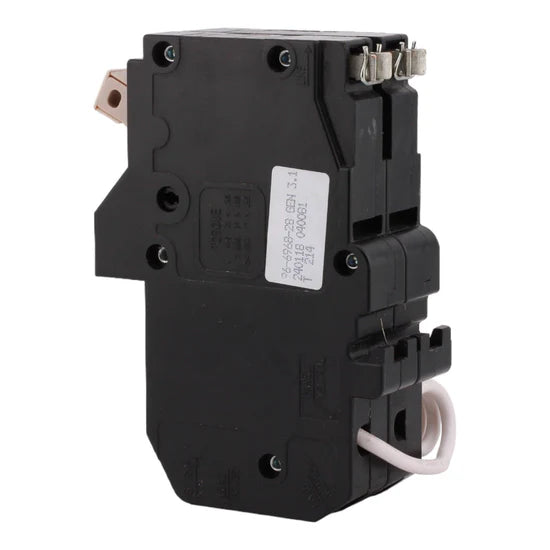

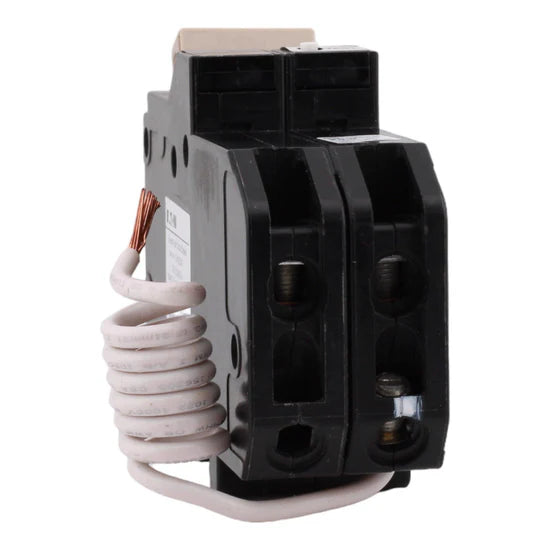

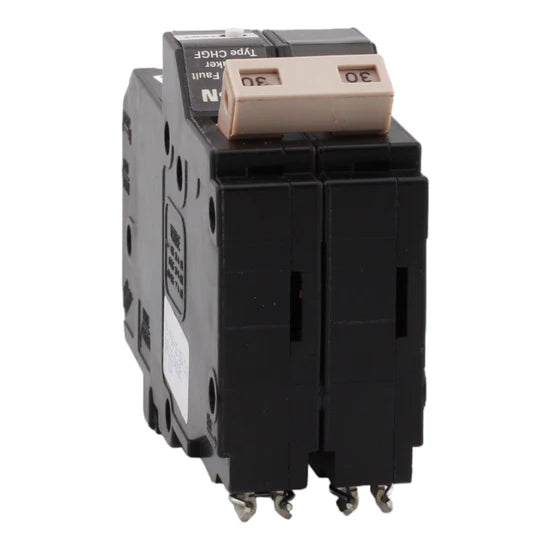

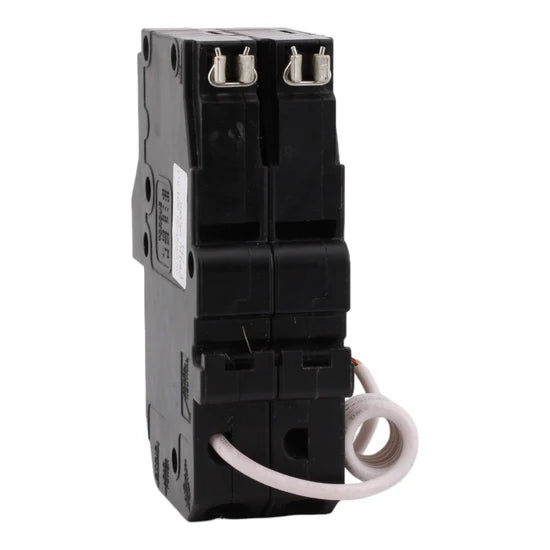

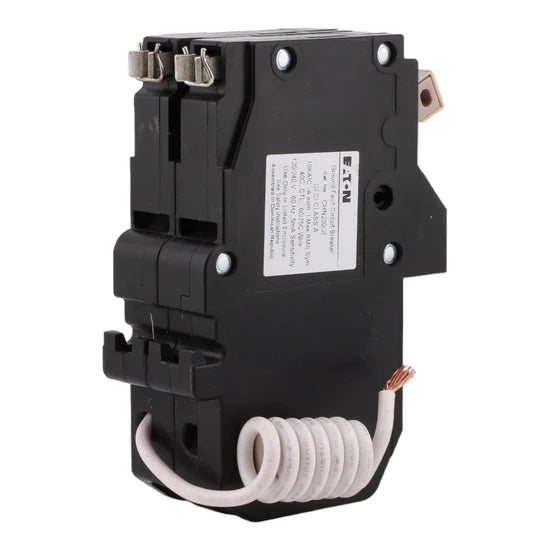

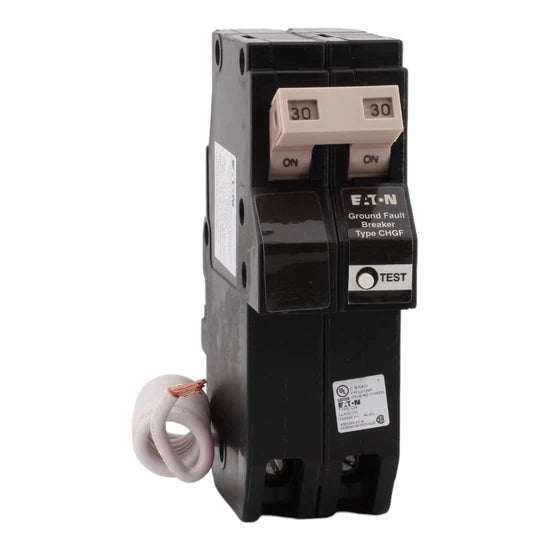

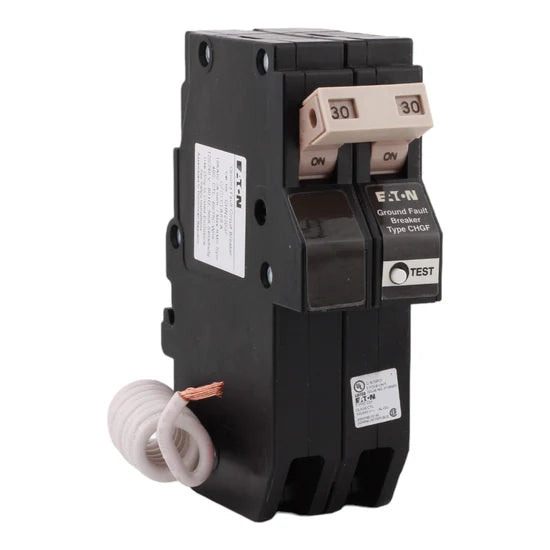

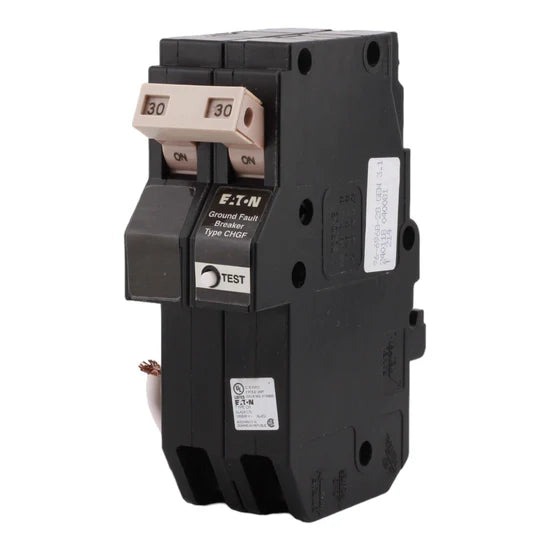

Eaton CHN230GF 30A 2-Pole GFCI Circuit Breaker – Pigtail Neutral – 120/240V AC

The Eaton CHN230GF is a 2-pole GFCI circuit breaker engineered to provide reliable ground-fault protection for 120/240V circuits in Eaton CH load centers. Its pigtail neutral connection allows for secure and efficient installation, ensuring consistent protection against electrical hazards.

With 5 mA trip sensitivity and a 10 kA interrupt rating, this breaker quickly responds to ground faults, maintaining safety and reducing the risk of electrical shock or damage to connected equipment.

Voltage and Ratings

• Voltage Rating: 120/240 Volts AC
• Current Rating: 30 Amps
• Interrupting Capacity: 10 kA
• Ground-Fault Trip Level: 5 mA

Key Specifications

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Poles: 2-Pole
• Series: CH
• Mounting Type: Plug-in
• Connection Type: Pigtail neutral
• Compatible Panels: Eaton CH load centers and related equipment

• Wire Size: AWG 14 – AWG 4 (Copper or Aluminum)

• Tightening Torque: 20 lbf-

  Technical Specifications

• Wire Size: AWG 14 – AWG 4 (Copper or Aluminum)
• Tightening Torque: 20 lbf-in (2.3 N·m)

• Dimensions:

  • Height: 2.25 in
  • Width: 3.5 in
  • Depth: 3.5 in

• Weight: 0.8 lbs

• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: CHN230GF
• UPC: 786689217242
• Product Range: CH
