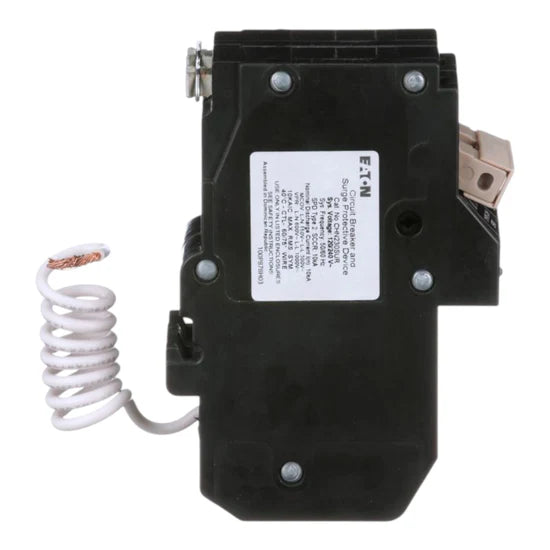

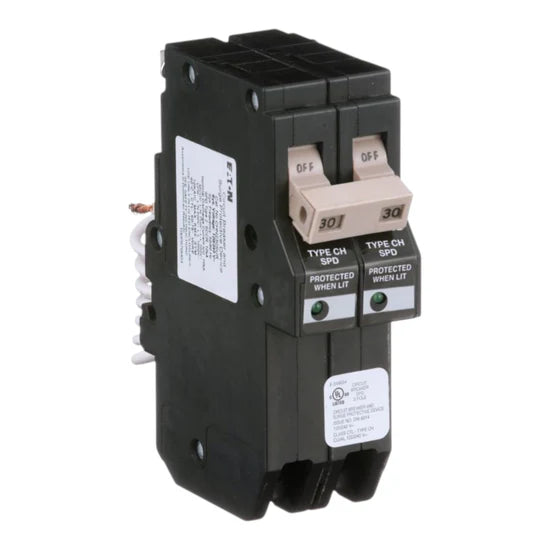

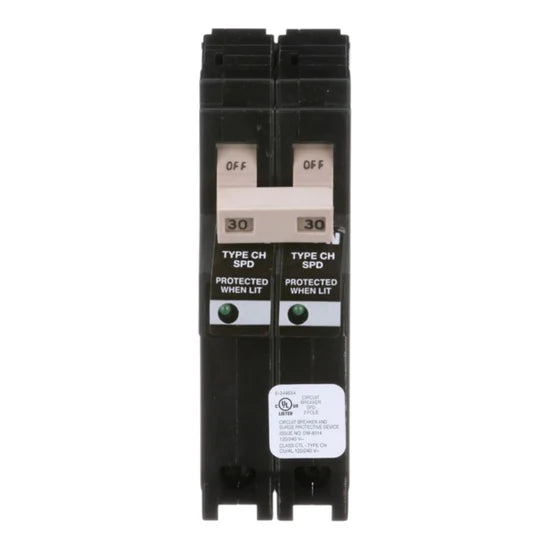

Eaton CHN230SUR 30A 2-Pole Residential Surge – Pigtail Neutral – 120/240V

The Eaton CHN230SUR is a 30 Amp, 2-Pole residential surge breaker designed for CH loadcenters and residential panels. Featuring a pigtail neutral, 36 kA surge current capacity, and 10 kAIC interrupt rating, it provides reliable whole-home surge protection for 120/240V circuits, safeguarding electrical systems from lightning strikes and utility switching events.

Voltage and Rating

• Amperage: 30 Amps
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Nominal Discharge Current: 10 kA
• Surge Current Capacity: 36 kA per phase

Key Specifications

• Breaker Type: Residential Surge Breaker
• Poles: 2-Pole
• Mounting Mode: Plug-In

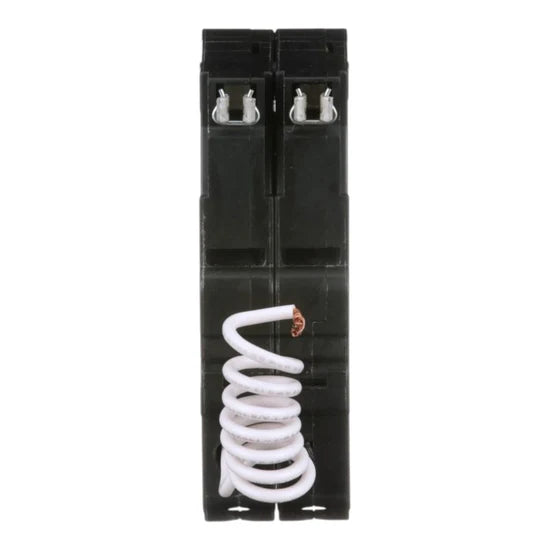

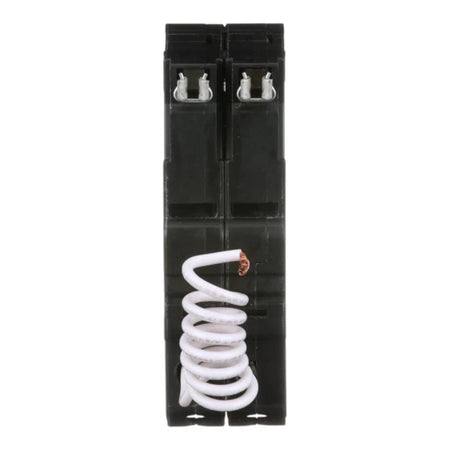

• Connections Terminals: Pigtail Neutral
• Wire Size: #14–4 AWG Cu/Al

Product Data

• Manufacturer: Eaton
• Brand: CH
• Model Number: CHN230SUR
• UPC: 786689217174

• Dimensions:

  • Height: 2.25 in
  • Width: 6 in
  • Depth: 3.5 in
  • Weight: 0.6 lbs

• Certifications: UL 489 Listed, UL 1449 Listed
