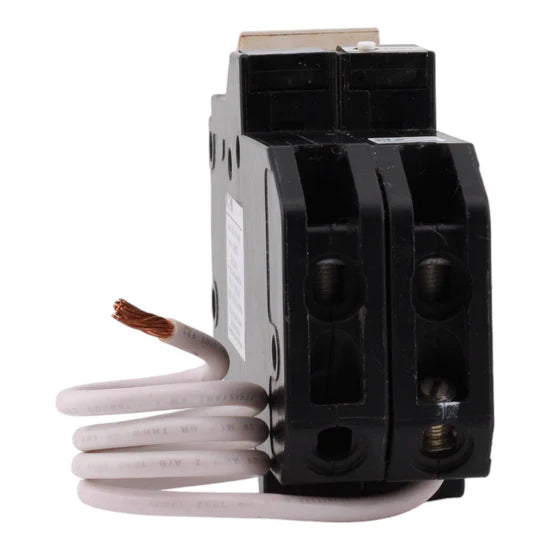

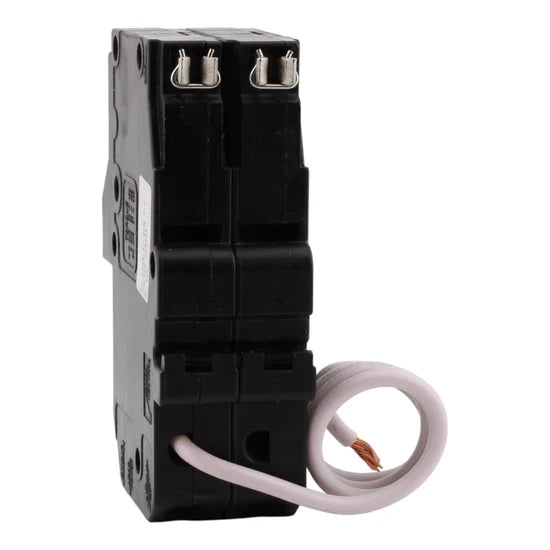

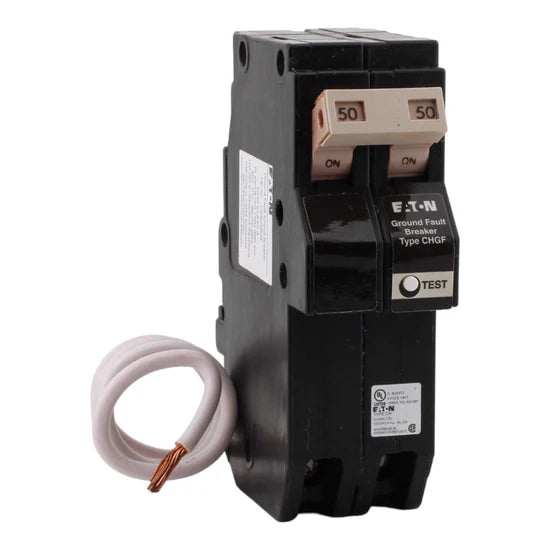

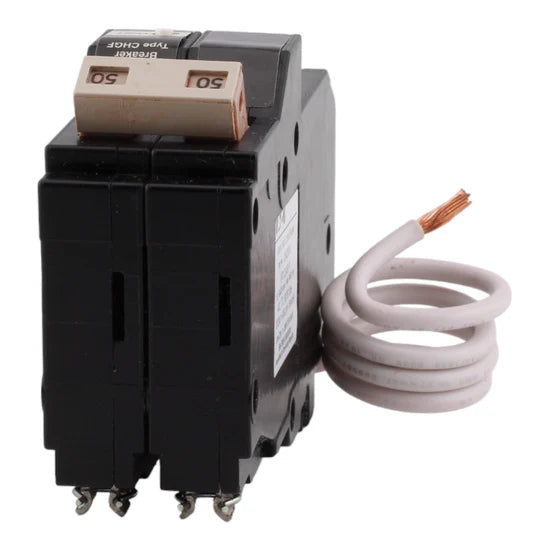

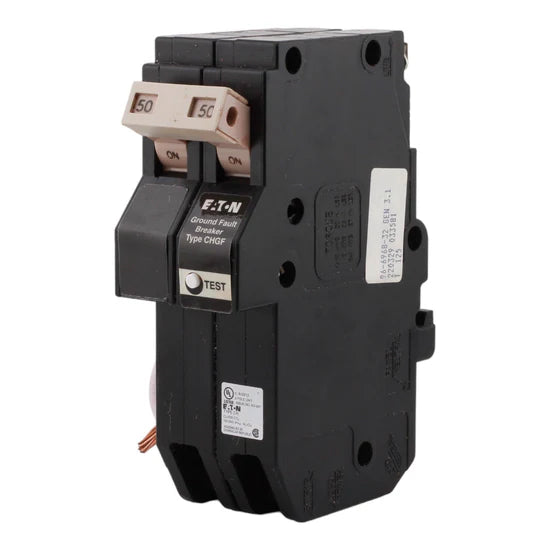

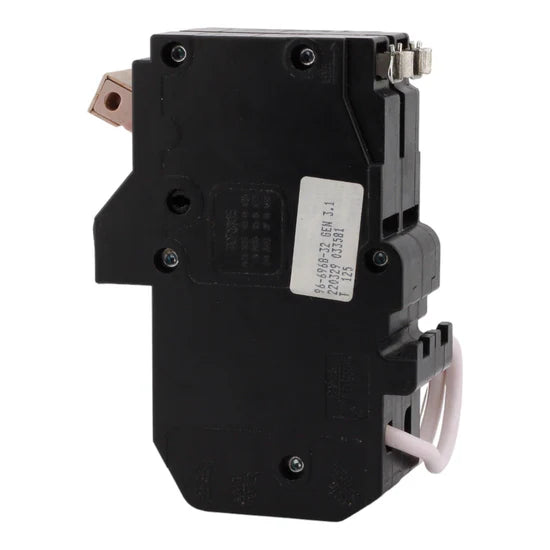

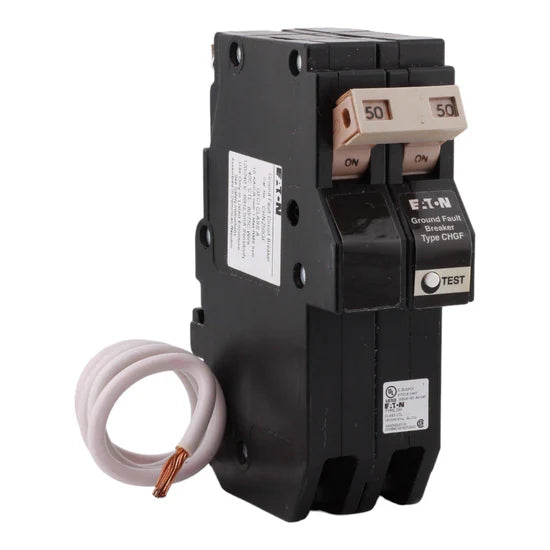

Eaton CHN250GF 50A 2-Pole GFCI Circuit Breaker – Pigtail Neutral – 120/240V AC

The Eaton CHN250GF is a 2-pole GFCI circuit breaker designed to protect 120/240V circuits by detecting ground faults and quickly interrupting power to prevent electrical hazards. Its pigtail neutral design simplifies installation while maintaining a secure and reliable connection.

With a 5 mA trip sensitivity and 10 kA interrupt rating, this breaker provides dependable protection for higher-amperage applications where ground-fault safety is required.

Voltage and Ratings

• Voltage Rating: 120/240 Volts AC
• Current Rating: 50 Amps
• Interrupting Capacity: 10 kA
• Ground-Fault Trip Level: 5 mA

Key Specifications

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Poles: 2-Pole
• Series: CH
• Mounting Type: Plug-in
• Connection Type: Pigtail neutral
• Compatible Panels: Eaton CH load centers and related equipment

Technical Specifications

• Wire Size: AWG 14 – AWG 4 (Copper or Aluminum)
• Tightening Torque: 20 lbf-in (2.3 N·m)

• Dimensions:

  • Height: 2.25 in
  • Width: 3.5 in
  • Depth: 6.0 in

• Weight: 0.8 lbs

• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: CHN250GF
• UPC: 786689217280
• Product Range: CH
