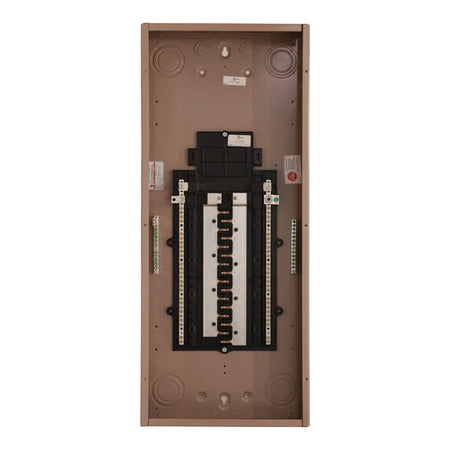

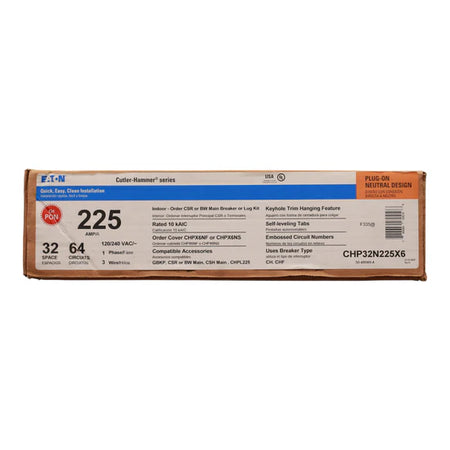

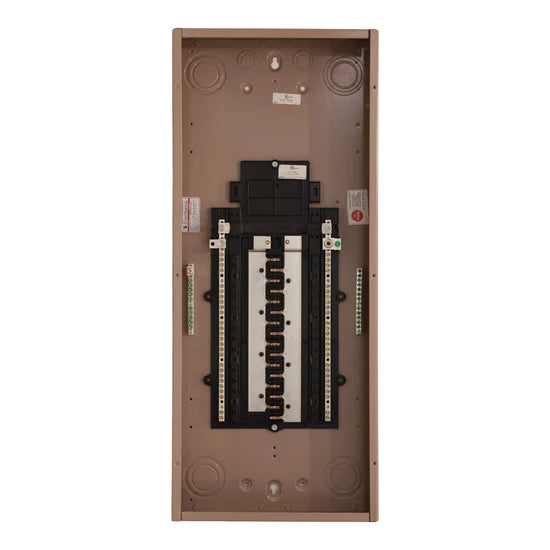

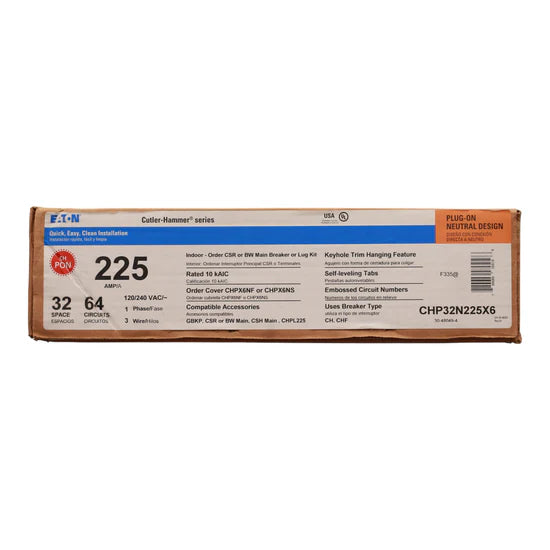

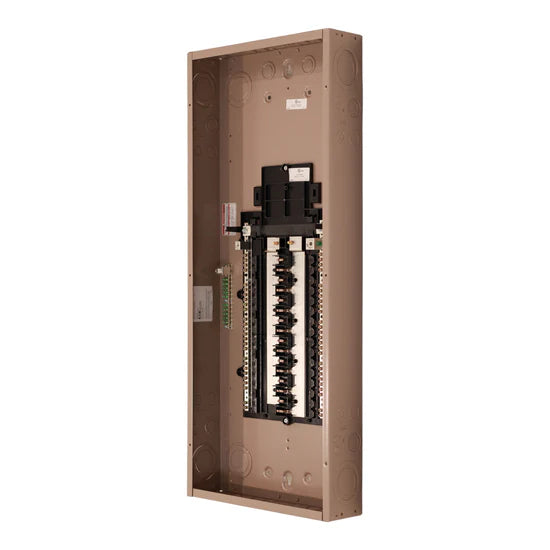

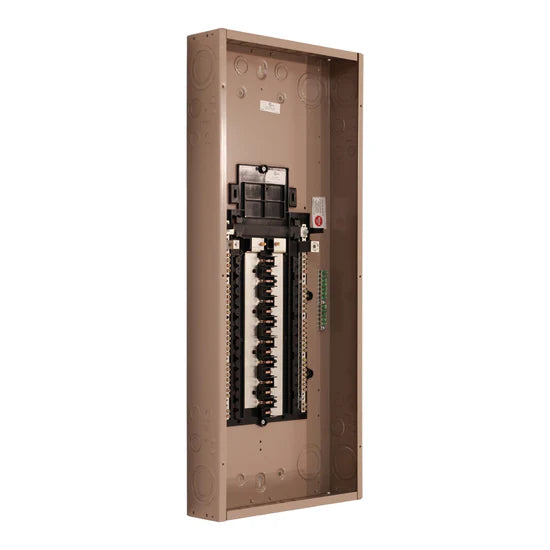

Eaton CHP32N225X6 225A 1-Pole Plug-On Neutral – Convertible Loadcenter – 120/240V

The Eaton CHP32N225X6 225A 1-Pole Plug-On Neutral – Convertible Loadcenter – 120/240V provides reliable 225 Amp, 1-phase power distribution for residential 120/240V AC circuits. Designed for Eaton CH plug-on neutral loadcenters, this convertible unit supports either main lug or main breaker configurations, offering flexible installation options. With 32 spaces and 64 circuits, it accommodates a wide range of branch circuits and provides a 25 kAIC interrupt rating (depending on the main breaker installed). The loadcenter features copper bus bars, plug-on neutral breaker mounting, and supports wire sizes #6–1/0 AWG. Its NEMA 1 indoor enclosure is constructed from 16-gauge steel for durable, long-lasting performance.

Voltage and Rating

• Amperage Rating: 225 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 25 kAIC (depending on main breaker)
• Phases: 1-Phase

Key Specifications

• Loadcenter Type: Convertible (Main Lug or Main Breaker)
• Breaker Mounting: Plug-On Neutral
• Number of Spaces: 32
• Number of Circuits: 64
• Bus Material: Copper
• Wiring Configuration: 3-Wire (two hots, neutral, ground)
• Feed Type: Top/Bottom

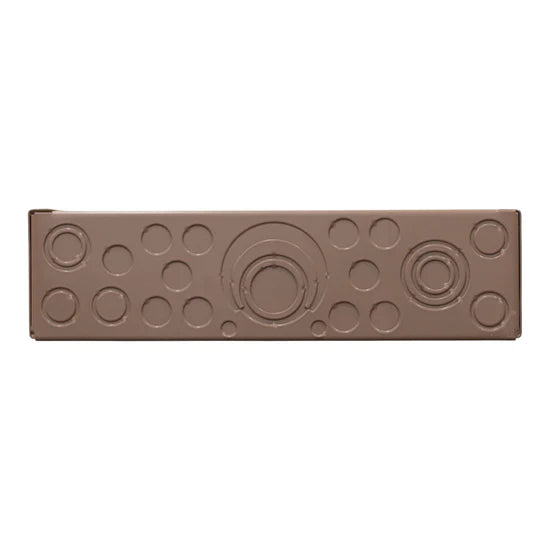

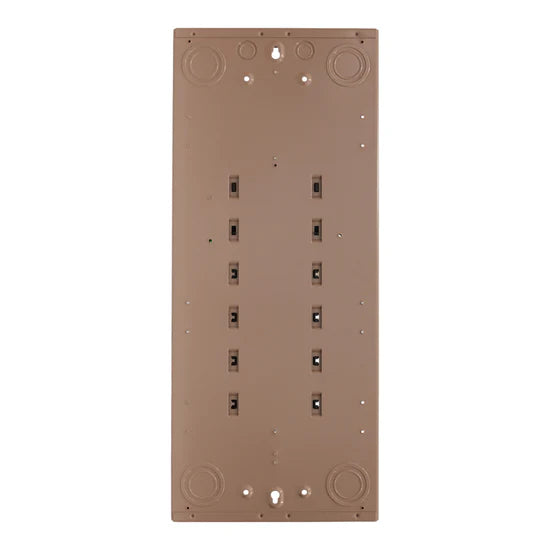

• Enclosure: NEMA 1, 16 ga sheet steel
• Cover: Ordered separately (X6 cover required)
• Main Breaker: Ordered separately
• Warranty: Limited Lifetime
• Certifications: UL 50/67 Listed

Technical Specifications

• Wire Size: #6–1/0 AWG
• Mounting Type: Indoor
• Operating Mechanism: Plug-On Neutral bus
• Application: Residential branch circuit protection

Product Data

• Manufacturer: Eaton
• Brand: CH
• Model Number: CHP32N225X6
• UPC: 786689055196

Dimensions

• • Height: 34.12 in
  • Width: 14.31 in
  • Depth: 3.88 in
  • Weight: 17.7 lbs
