Eaton Cutler-Hammer

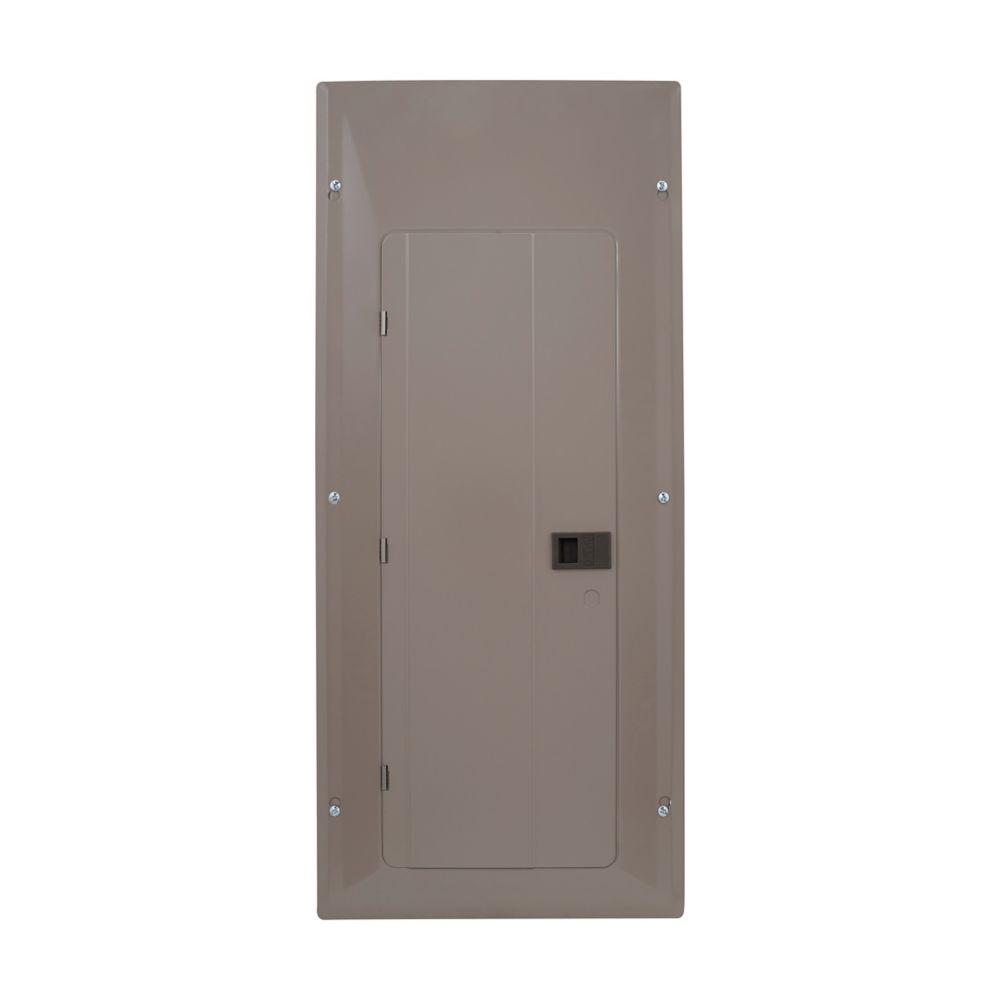

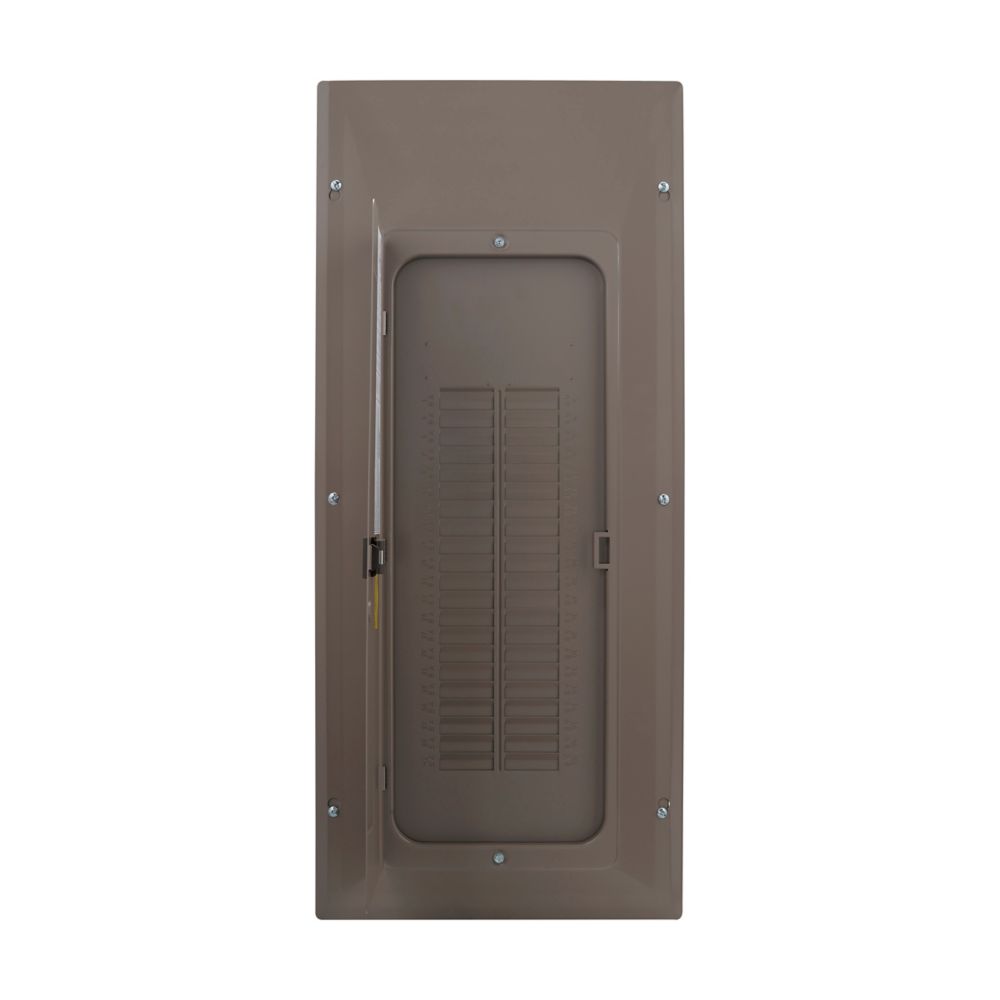

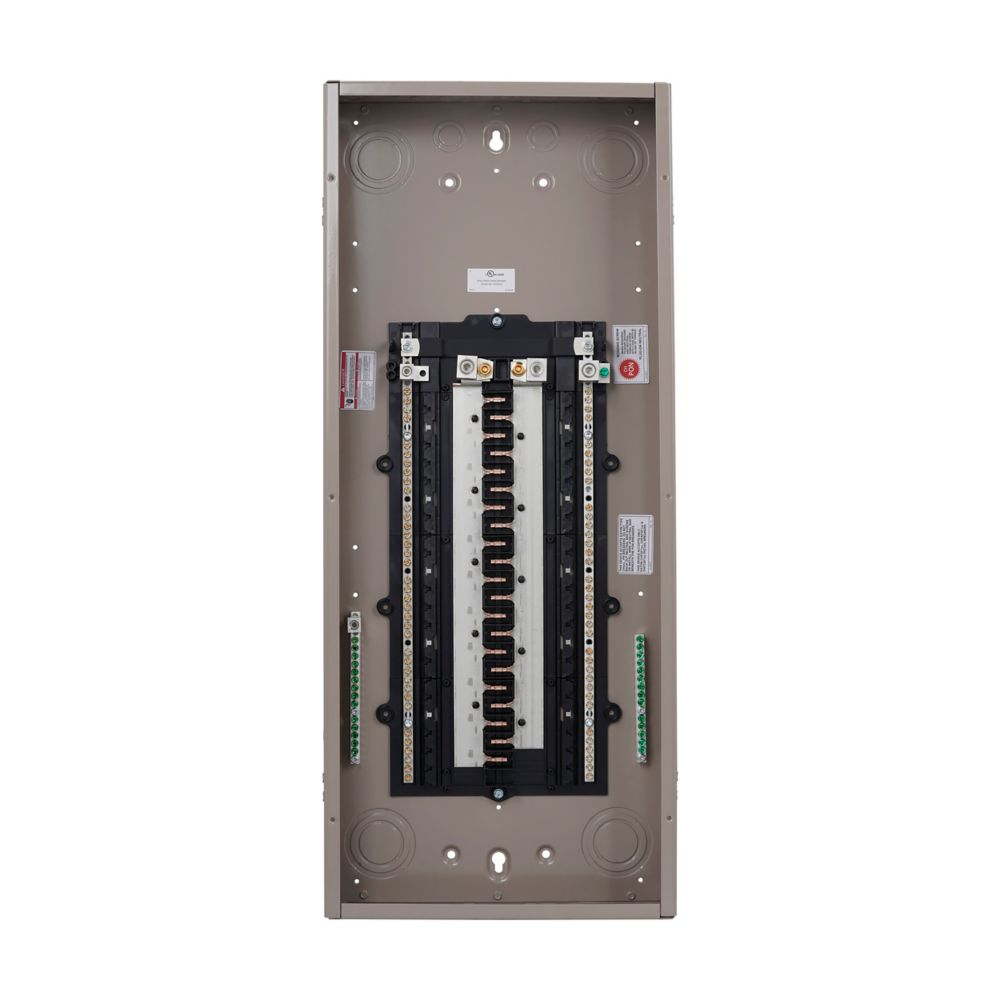

Eaton CHP42L225X6 CH Main Lug Loadcenter – 225A, 42 Spaces, 84 Circuits, 120/240V, NEMA 1

In stock
SKU: CHP42L225X6 GTIN/UPC: 786689055202
$326.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton CHP42L225X6 CH main lug loadcenter is designed for residential and light commercial electrical distribution applications requiring high circuit capacity. It provides reliable power distribution with a copper bus design and supports plug-on neutral (PON) breaker compatibility. This loadcenter is built for efficient branch circuit organization and is suitable for indoor installations.

Electrical Ratings

  • Amperage Rating: 225A
  • Voltage Rating: 120/240V AC
  • Phase: Single-phase
  • Interrupt Rating: 25 kAIC
  • Number of Spaces: 42
  • Number of Circuits: 84
  • Circuit Configuration: Single-pole capacity system
  • Bus Material: Copper

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: CHP42L225X6
  • UPC: 786689055202
  • Product Type: Main lug loadcenter
  • Used With: Eaton CH breakers
  • Standards: UL 67, UL 50 certified
  • Special Features: Plug-on neutral (PON)
  • Enclosure Type: NEMA 1
  • Enclosure Material: Metallic steel
  • Wire Size Range: #1 AWG–300 kcmil
  • Number of Wires: Two hots, neutral, and ground
  • Box Size: X6
  • Warranty: Limited lifetime

Physical Details

  • Product Length/Depth: 34.12 in
  • Product Height: 3.88 in
  • Product Width: 14.31 in
  • Product Weight: 18.5 lb

Product Data

  • Application: Residential and light commercial power distribution
  • Compatibility: Eaton CH series breakers
  • Installation Use: Indoor loadcenter panelboard
  • Function: Centralized distribution of branch circuits
  • Safety Feature: High interrupt capacity design for fault protection
  • System Benefit: Supports expanded circuit capacity with organized wiring layout
  • Type Lug Loadcenter
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
