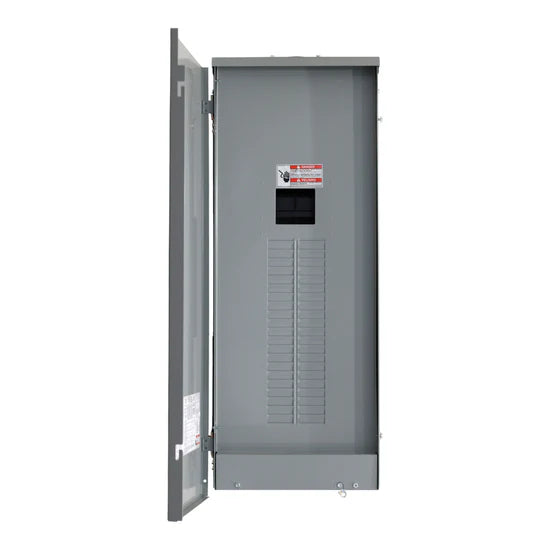

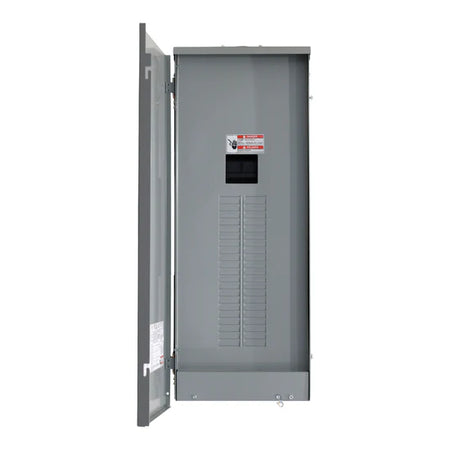

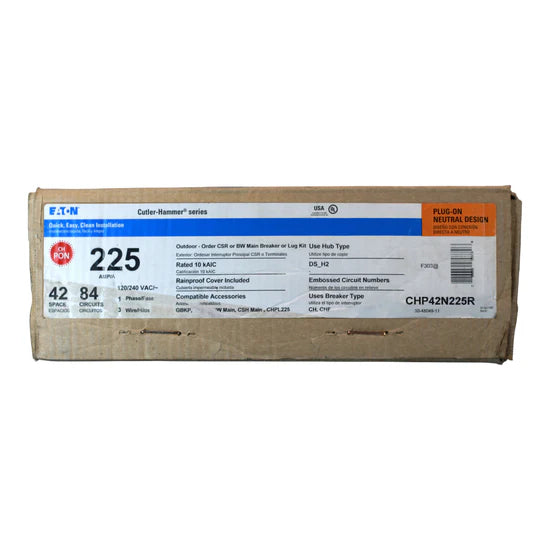

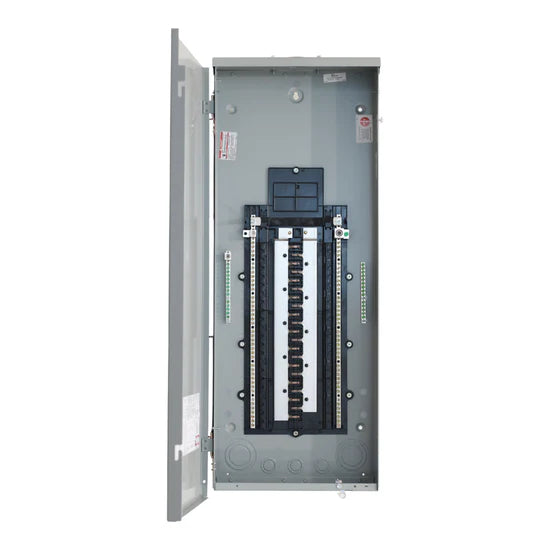

Eaton CHP42N225R 225A 42-Space Plug-On Neutral Convertible – 120/240V NEMA 3R

The Eaton CHP42N225R plug-on neutral convertible loadcenter provides reliable 225 A, 42-space power distribution for 120/240 V single-phase circuits in CH residential and light commercial applications. With a NEMA 3R rainproof enclosure and 10 kA interrupt rating, it ensures safe outdoor installation for overhead feed connections.

Electrical Ratings:

• Amperage: 225 A
• Number of Spaces: 42
• Voltage Rating: 120/240 V AC
• Phase: Single-Phase
• Interrupt Rating: 10 kAIC
• Bus Material: Copper

Design & Construction:

• Product Type: Convertible Loadcenter (Main Breaker or Main Lug)
• Enclosure Type: NEMA 3R (Rainproof)
• Enclosure Material: Metallic
• Neutral System: Plug-On Neutral
• Feed Type: Overhead
• Number of Wires: 3-wire

Physical Specifications:

• Height: 5.19 in
• Width: 14.31 in
• Depth: 37 in
• Weight: 32 lbs

Certifications:

• UL 50
• UL 67

Special Features:

• Cover included
• Suitable for use as service equipment

• Manufacturer Info:

• Manufacturer: Eaton
• Brand: CH
• Product Range: CH
• Model Number: CHP42N225R
• UPC: 786689058746
