Eaton CHPSURGE10 Surge Protective Device – Plug-On Neutral – 120/240V

In stock
SKU: CHPSURGE10 GTIN/UPC: 786689885434
$55.00
SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $99
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

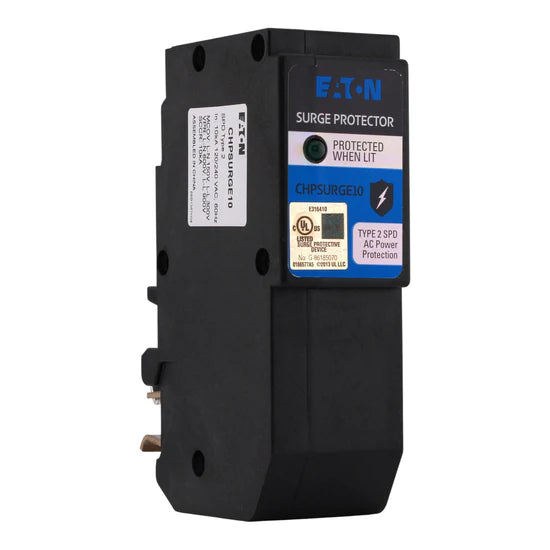

Eaton CHPSURGE10 Surge Protective Device – Plug-On Neutral – 120/240V delivers reliable whole-home surge protection for Eaton CH loadcenters. Designed with true plug-on neutral (PON) installation, this Type CH SPD helps protect sensitive electronics and appliances from damaging transient voltage spikes. With a 20 kA surge current capacity and 10 kA nominal discharge rating, it provides dependable residential protection in 120/240V systems.

Voltage and Rating:

  • Voltage Rating: 120/240V AC
  • Nominal Discharge Current (In): 10 kA
  • Surge Current Capacity: 20 kA
  • Short Circuit Current Rating (SCCR): 10 kA
  • Interrupt Rating: 10 kAIC
  • Frequency: 50/60 Hz

Key Specifications:

  • Product Type: Surge Protective Device (SPD)
  • Mounting Type: Plug-On Neutral (PON)
  • Connection Type: Plug-on neutral
  • Protection Modes: L-N, L-L
  • Application: Whole-home surge protection
  • Product Range: CH Series (for Eaton CH loadcenters)

Technical Specifications:

  • Maximum Continuous Operating Voltage (MCOV): 150V L-N, 300V L-L
  • Certifications: UL 1449

Product Data:

  • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: CHPSURGE10
  • UPC: 786689885434
  • Dimensions:
    • Height: 1.48 in
    • Width: 2.96 in
    • Depth: 4.63 in
    • Weight: 0.485 lbs
  • Type Circuit Breakers
  • Vendor Eaton
  • Brand Eaton
