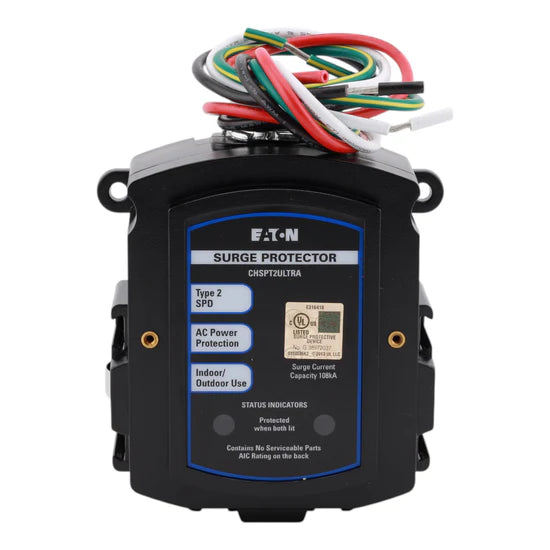

Eaton CHSPT2ULTRA 120/240V Single-Phase Surge Protection Device – NEMA 4 – 120/240V AC

The Eaton CHSPT2ULTRA 120/240V Single-Phase Surge Protection Device – NEMA 4 – 120/240V AC provides robust Type 2 surge protection for single-phase 120/240V AC circuits. Designed with a NEMA 4 weatherproof enclosure, it delivers 108 kA one-time surge current rating and 20 kA nominal discharge current to safeguard residential, commercial, and general-use electrical systems from voltage surges.

Voltage and rating

• Voltage Rating: 120/240 Volts AC
• Phase: Single-Phase
• Operating Voltage: 150V L-N, 300V L-L
• Protection Ratings: 600V L-N, 1000V L-L, 800V N-G, 600V L-G
• Nominal Discharge Current: 20 kA
• Surge Current Rating: 108 kA
• Short-Circuit Rating: 22 kA
• Interrupt Rating: 200 kAIC
• Frequency: 60 Hz

Key Specifications

• Device Type: Type 2 Surge Protection Device
• Mounting Type: NEMA 4 Enclosure (Weatherproof)
• Product Range: CHSPT Series
• Application: Whole-home, commercial, and general surge protection
• Operating Temperature: -40 to 50 °C

Technical Specifications

• Certifications: UL 1449, cUL Certified, UL Recognized
• Compliance: Meets or exceeds IBC® 2006, CBC 2007, and UBC® Zone 4 requirements

• Dimensions:

  • • Height: 2.5 in
    • Width: 5 in
    • Depth: 7 in
    • Weight: 1 lb

• Key Features: High surge current rating, wide voltage protection (L-L, L-N, N-G), proven performance

Product Data

• Manufacturer: Eaton Corporation
• Brand: Eaton
• Model Number: CHSPT2ULTRA
• UPC: 786685436883
