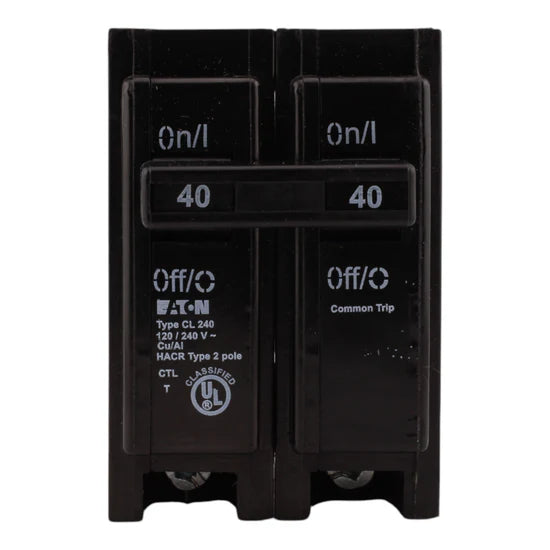

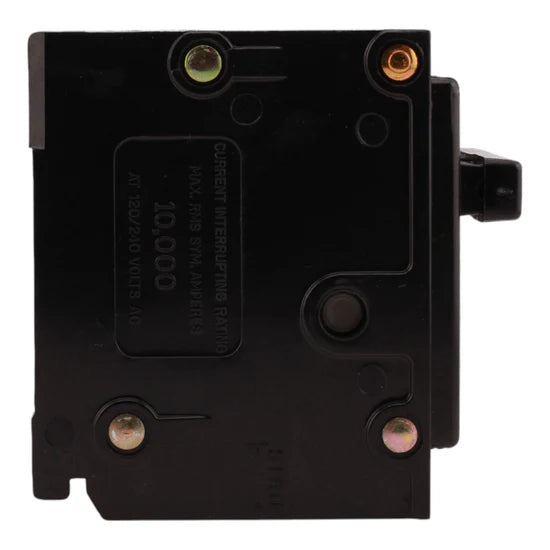

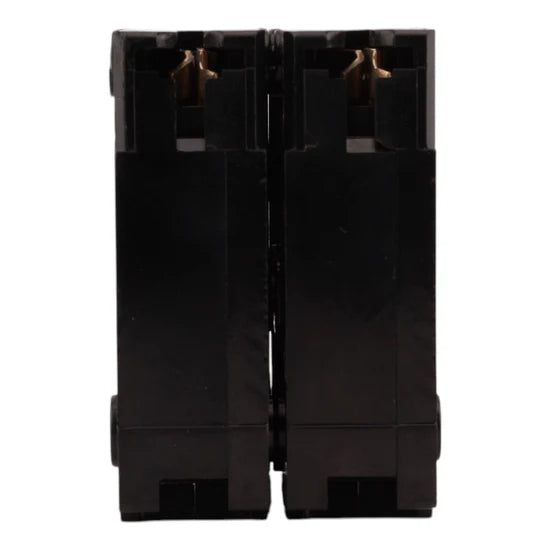

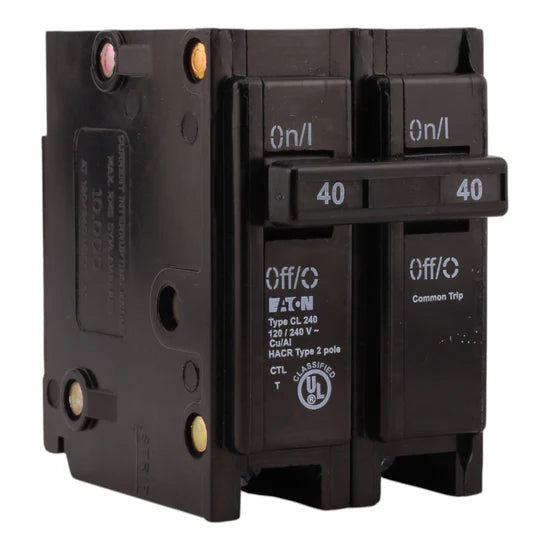

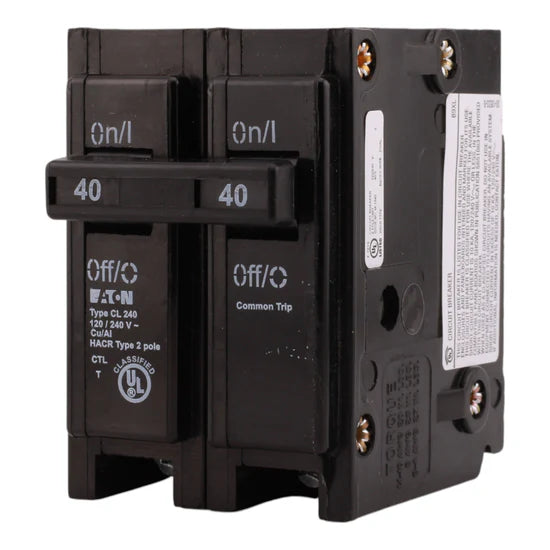

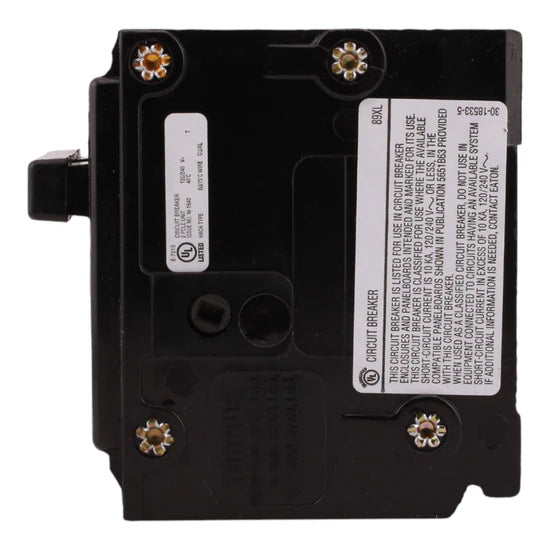

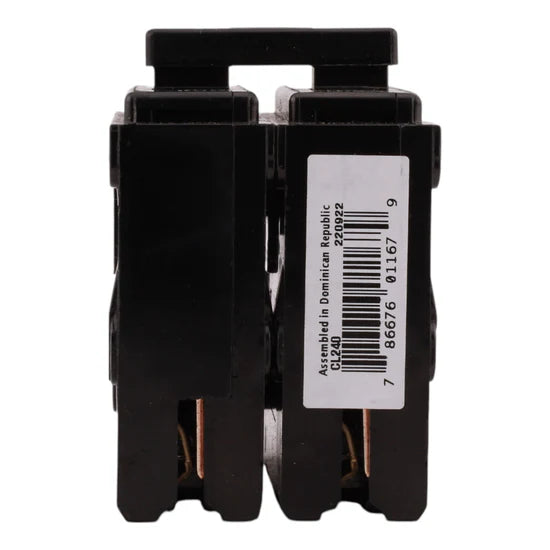

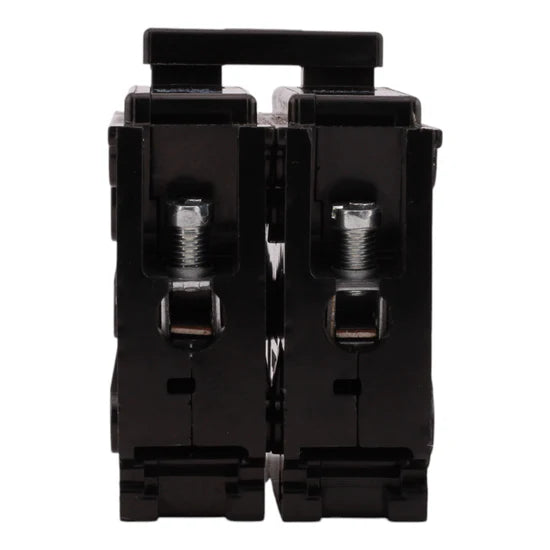

Eaton CL240 40A 2-Pole Thermal Magnetic – Classified Replacement – 120/240V

The Eaton CL240 is a 40 Amp, 2-pole thermal-magnetic classified circuit breaker designed as a replacement for various loadcenter types, including Square D Homeline, GE Type THQ, and others. Featuring a common trip and 10kAIC interrupt rating, it provides reliable overcurrent protection for residential and commercial 120/240V circuits. UL 489 listed and compatible with Type CH loadcenters, it requires two 1-inch spaces for installation.

Voltage and Rating:

• Current Rating: 40 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications:

• Breaker Type: Thermal Magnetic Classified Replacement
• Number of Poles: 2-Pole
• Trip Type: Common breaker trip
• Circuit Breaker Type: CH
• Wire Size: #14–4 AWG Cu/Al
• Application: Replacement for CH Loadcenters and compatible types
• Special Features: Compatible with Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas & Betts Type TB, Murray Type MP, ITE/Siemens Type QP
• Space Requirement: Requires two 1-inch spaces
• Certifications: UL 489

Physical Specifications:

• Dimensions (H × W × D): 3 × 2 × 3 in
• Weight: 0.5 lbs

Product Data

Manufacturer: Eaton
Brand: Eaton
Model Number: CL240
UPC: 786676011679
Range: CL Series (Classified Replacement Breaker)
Compatible With: Type CH Loadcenters
