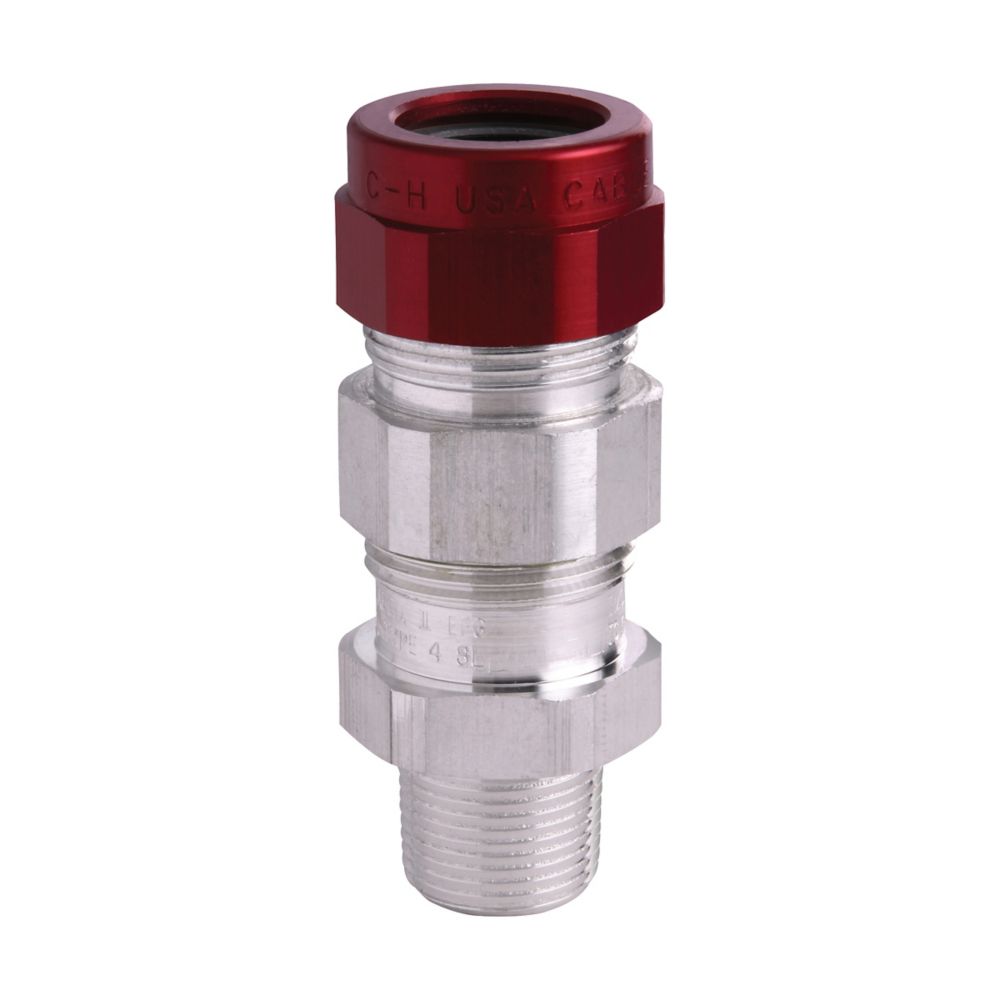

Eaton Crouse-Hinds TMCX285 Cable Gland – 3/4 in NPT, Explosion-Proof, Aluminum

In stock
SKU: TMCX285 GTIN/UPC: 782274414676
$103.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton Crouse-Hinds TMCX285 cable gland is engineered for hazardous and classified locations requiring secure cable termination and explosion-proof protection. Designed for TECK armoured, metal-clad, and tray cable applications, it supports both armoured barrier and non-armoured barrier gland configurations. Constructed from durable aluminum, the gland provides reliable sealing, grounding, and strain relief in demanding industrial environments.

Key Specifications

  • Manufacturer: Eaton Crouse-Hinds
  • Catalog Number: TMCX285
  • Product Type: Cable gland
  • Protection Type: Explosion-proof
  • Gland Type: Armoured barrier and non-armoured barrier
  • Material: Aluminum
  • Thread Size: 3/4 in
  • Thread Type: NPT

Cable Compatibility

  • TECK armoured cable
  • Metal-clad cable with interlocked or continuously welded corrugated armour
  • Tray cable

Cable Range

  • Armor Diameter Range: 0.60 – 0.85 in
  • Outer Sheath Diameter Range: 0.65 – 1.00 in

Compliance and Certifications

  • Area Classification: Hazardous / Classified Locations
  • NEC Hazardous Ratings:
    • Class I, Division 1
    • Class II, Division 1
    • Class III
  • NEMA Rating: 4
  • Standards: NEC / CEC compliant

Physical Details

  • Product Length/Depth: 3.66 in
  • Product Height: 1.63 in
  • Product Width: 1.63 in
  • Product Weight: 0.46 lb

Product Applications

  • Hazardous industrial cable terminations
  • Explosion-proof conduit and cable systems
  • Oil and gas facilities
  • Petrochemical and chemical processing plants
  • Heavy-duty industrial electrical installations
  • Type Contactor
  • Vendor Eaton
  • Brand Eaton Crouse-Hinds
