Eaton

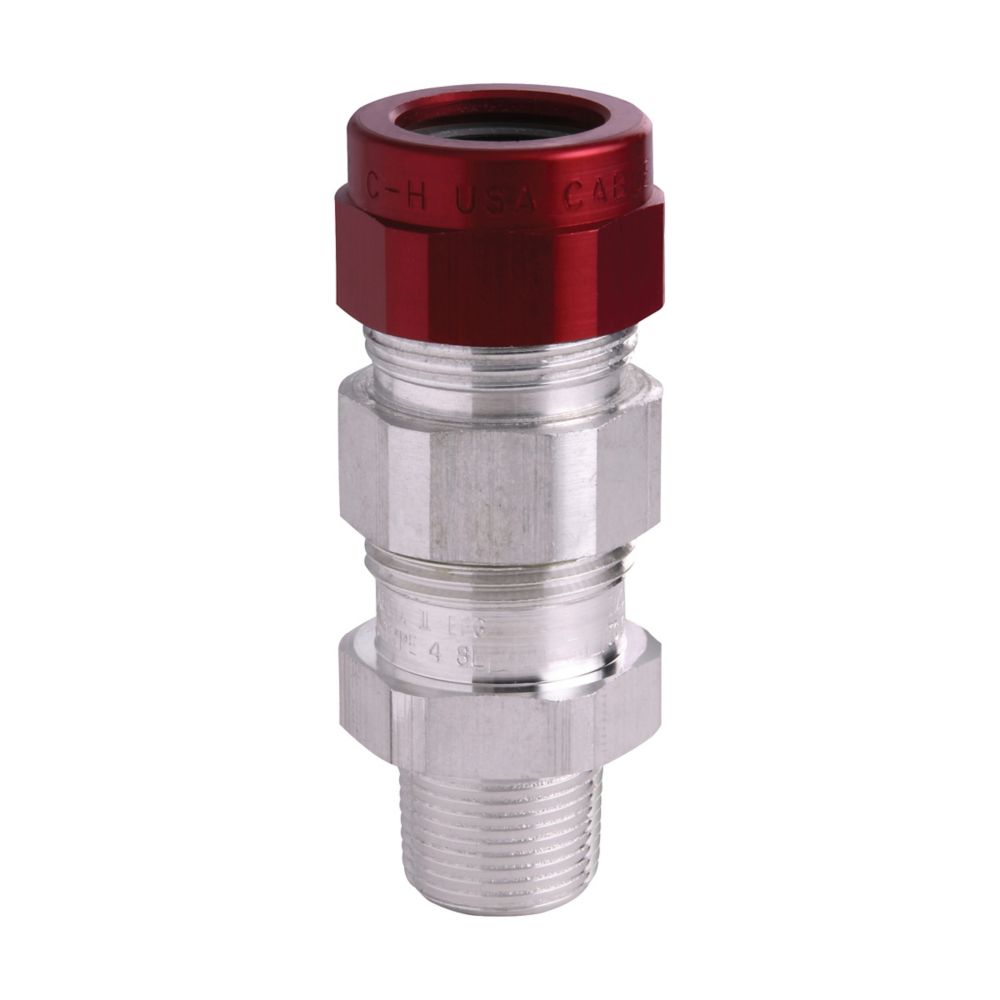

Eaton Crouse-Hinds TMCX6206 Cable Gland – 2 in NPT, Explosion-Proof, Aluminum

In stock
SKU: TMCX6206 GTIN/UPC: 782274414720
$333.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton Crouse-Hinds TMCX6206 cable gland is designed for hazardous and classified locations where explosion-proof cable termination and sealing are required. It is compatible with TECK armoured, tray, and metal-clad cables with interlocked or continuously welded corrugated armour. Constructed from durable aluminum, this cable gland provides secure grounding, strain relief, and environmental sealing for heavy-duty industrial applications.

Key Specifications

  • Manufacturer: Eaton Crouse-Hinds
  • Catalog Number: TMCX6206
  • Product Type: Cable gland
  • Protection Type: Explosion-proof
  • Gland Type: Armoured barrier and non-armoured barrier
  • Material: Aluminum
  • Thread Size: 2 in
  • Thread Type: NPT

Cable Compatibility

  • Metal-clad cable with interlocked or continuously welded corrugated armour
  • TECK armoured cable
  • Tray cable

Cable Range

  • Armor Diameter Range: 1.57 – 2.06 in
  • Outer Sheath Diameter Range: 1.63 – 2.31 in

Compliance and Certifications

  • Area Classification: Hazardous / Classified Locations
  • NEC Hazardous Ratings:
    • Class I, Division 1
    • Class II, Division 1
    • Class III
  • NEMA Rating: 4
  • Standards: NEC / CEC compliant

Physical Details

  • Product Length/Depth: 6.31 in
  • Product Height: 3.5 in
  • Product Width: 3.5 in
  • Product Weight: 3.1 lb

Product Applications

  • Explosion-proof cable terminations
  • Hazardous industrial electrical systems
  • Oil and gas facilities
  • Petrochemical and chemical processing plants
  • Heavy-duty conduit and cable installations
  • Type Contactor
  • Vendor Eaton
  • Brand Eaton Crouse-Hinds
