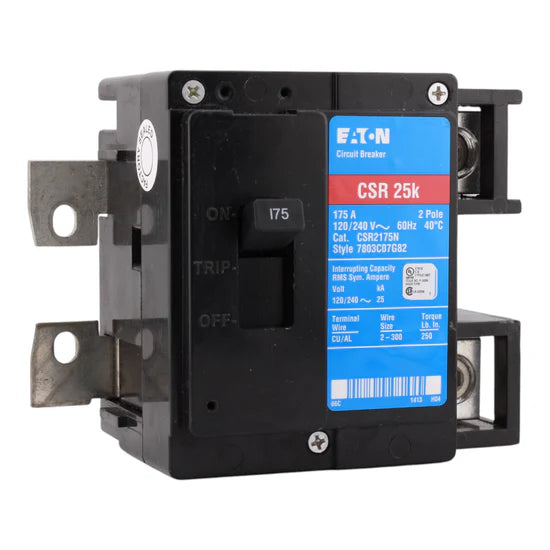

The Eaton CSR2175N 175A 2-Pole Thermal Magnetic – Plug-On – 120/240V AC provides dependable 175 Amp, 2-Pole overcurrent protection for 120/240V AC circuits. Designed for CH frame load centers with wide wire compatibility (#2 AWG–300 kcmil), it delivers reliable main circuit protection for residential, commercial, and light industrial applications with a 25 kAIC interrupt rating.
Voltage and rating
- Current Rating: 175 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 25 kAIC
- Frequency: 50/60 Hz
Key Specifications
- Breaker Type: Standard Thermal Magnetic Circuit Breaker
- Number of Poles: 2-Pole
- Mounting Type: Plug-On
- Frame Type: CSR
- Product Range: CH Frame Main Circuit Breaker
- Application: Main circuit protection for residential, commercial, and industrial systems
Technical Specifications
- Wire Size Range: #2 AWG – 300 kcmil
- Operating Mechanism: Thermal-magnetic
- Certifications: UL 489
- Compatible Enclosures: Type ECC Unit Enclosures
Product Data
- Manufacturer: Eaton Corporation
- Brand: Eaton
- Model Number: CSR2175N
- UPC: 782113098456
-
Dimensions:
- Height: 3.1 in
- Width: 2 in
- Depth: 3.1 in
- Weight: 3 lbs
- Type Circuit Breakers
- Vendor Eaton
- Brand Eaton
