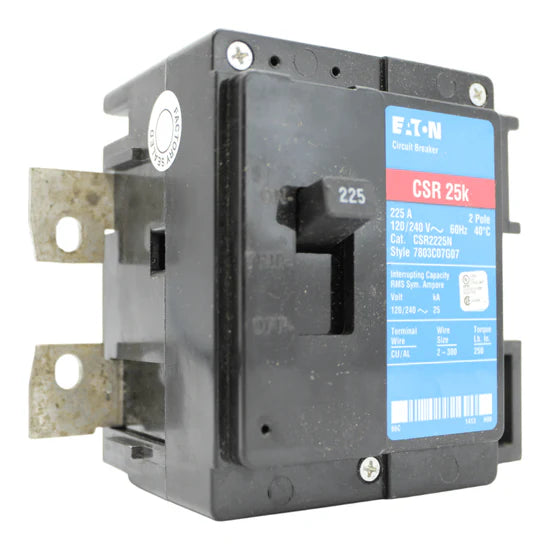

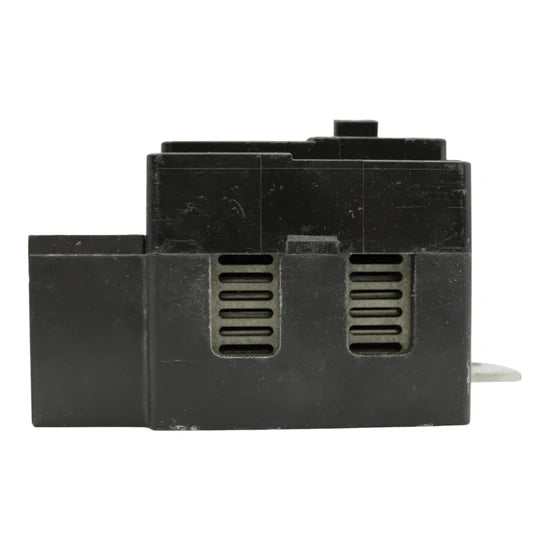

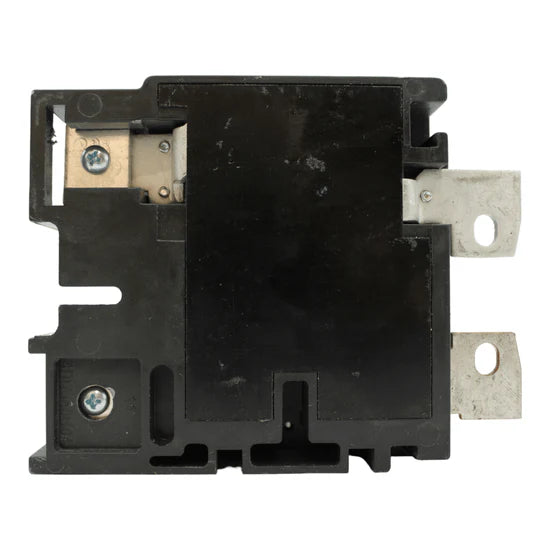

Eaton CSR2225N 225A 2-Pole Thermal-Magnetic Circuit Breaker – Bolt-On – 120/240V AC

The Eaton CSR2225N is a 2-pole thermal-magnetic circuit breaker designed for use in Eaton CH series load centers. It provides dependable protection against overloads and short circuits, helping maintain safe operation of branch circuits and distribution equipment.

Built with lug terminals and a bolt-on mounting design, this breaker ensures a secure electrical connection and stable installation. Its 25 kA interrupt rating supports reliable fault protection in demanding electrical systems operating on 120/240V AC.

Voltage and Ratings

• Voltage Rating: 120/240 Volts AC
• Current Rating: 225 Amps
• Interrupting Capacity: 25 kAIC

Key Specifications

• Breaker Type: Thermal-Magnetic
• Poles: 2-Pole
• Series: CH
• Mounting Type: Bolt-On

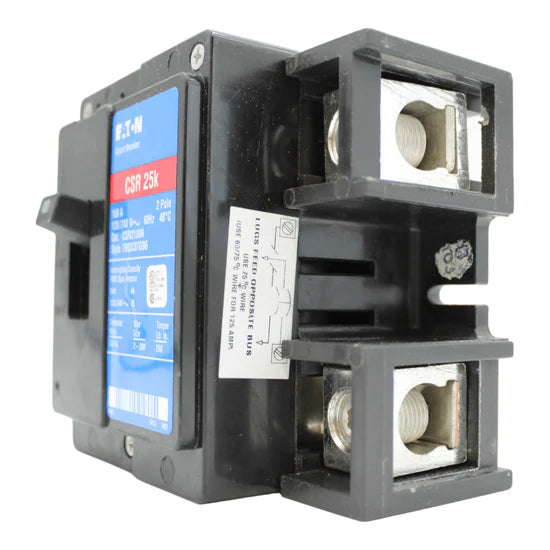

• Terminal Type: Lug terminals
• Compatible Panels: Eaton CH load centers and related equipment

Technical Specifications

• Wire Size: #2 AWG – 300 kcmil
• Tightening Torque: 275 lb-in

• Dimensions:

  • Height: 3.1 in
  • Width: 2.0 in
  • Depth: 3.1 in

• Weight: 3.0 lbs

• Certifications: UL Listed

• Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: CSR2225N
• UPC: 782114106242
• Product Range: CH
