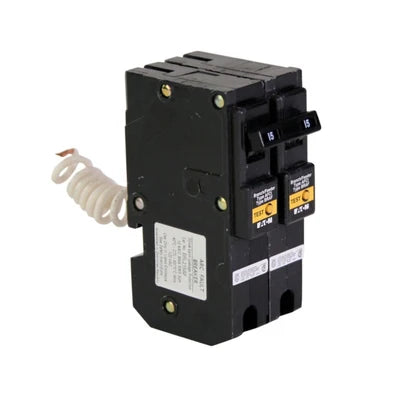

Eaton Cutlear-Hammer BRL215AF Arc Fault Circuit Breaker – 15A – 2 Pole – 120/240V AC – 10kA – Plug-In – BR Series

The Cutler Hammer BRL215AF is a 15A, 2-pole arc fault circuit breaker designed for 120/240V AC applications in compatible Type BR electrical systems. It features a plug-in mounting design and provides arc fault protection for residential and commercial electrical installations.

The BRL215AF incorporates thermal-magnetic protection with long-time and instantaneous trip functions and has a 10kA interrupting rating. Its 2-pole configuration provides common-trip operation for 240V loads supplied by a 120/240V system.

Specifications

• Part Number / MPN: BRL215AF
• Manufacturer: Cutler Hammer
• Brand: Cutler Hammer
• Product Type: Molded Case Circuit Breaker
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family / Series: BR Series
• Type: BRL
• Frame Type: BR
• Rated Current: 15A
• Voltage Rating: 120/240V AC
• Phase: 1 Phase
• Poles: 2 Pole
• Interrupting Rating (AIC): 10kA @ 120V
• Connection / Mounting: Plug-In
• Trip Function: Long-Time and Instantaneous Trip
• Trip Configuration: Common Trip
• Protection: Thermal Magnetic
• Breaker Type: Arc Fault Circuit Interrupter (AFCI)
• Temperature Rating: -13°F to 158°F (-25°C to 70°C)
• Wire Size: 14 to 4 AWG, Copper/Aluminum
• Dimensions: 6 in × 3 in × 4.5 in
• UPC: 78668523232
• GTIN: 00786685232324
• Weight: 1.45 lb

Part Numbers & Identification

• MPN / Part Number: BRL215AF
• Type: BRL
• Series: BR Series
• Frame: BR
• UPC: 78668523232
• GTIN: 00786685232324
• Product Identification: Cutler Hammer BRL215AF, 15A, 2-Pole, 120/240V AC, 10kA, Plug-In Arc Fault Circuit Breaker

Compatibility

The Cutler Hammer BRL215AF is designed for compatible Type BR load centers and panelboards requiring a 15A, 2-pole, 120/240V AC plug-in circuit breaker with arc fault protection.

The 2-pole common-trip configuration is suitable for 240V load applications supplied by a 120/240V system. It supports 14 to 4 AWG copper or aluminum conductors. Verify the specific load center model and breaker compatibility before installation.

Certifications

The provided product information identifies the following certification:

• UL Listed
