Eaton Cutlear Hammer NGH312032E 1200A 3P Electronic Molded Case Circuit Breaker – Bolt-On – 480VAC

The Eaton NGH312032E is a Series G NG-frame electronic molded case circuit breaker engineered for industrial and generator protection. It features a Digitrip 310 RMS electronic LSI trip unit, providing adjustable long-time, short-time, and instantaneous protection. Rated for 1200A at 40°C and 480VAC, this breaker ensures reliable performance with high interrupting capacities. It is 80% rated and suitable for demanding applications requiring precision and safety.

Product Specifications

• Manufacturer: Eaton / Cutler Hammer
• Series: Series G
• Frame Type: NG
• Breaker Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip 310 RMS Electronic LSI
• Amperage: 1200A at 40°C
• Poles: 3
• Mounting Type: Bolt-On
• Standard Lug Type: Without Terminals Standard

Technical Specifications

• L – Adjustable Long Delay Pickup (via Rating Plug)
• S – Adjustable Short Delay Pickup with Fixed or Adjustable Short Delay Time (l2t or Flat Response)
• I – Adjustable Instantaneous Pickup by setting Short Delay Time to Instantaneous
• Suitable for industrial and generator applications
• Supports accessory installation at no additional cost
• One-year manufacturer warranty

Voltage and Ratings

• Voltage: 480VAC
• Frequency: 50/60 Hz
• Interrupting Ratings: 100 kAIC @ 240VAC, 65 kAIC @ 480VAC
• Rated Current: 1200A at 40°C

Product Data

• Series: NG Frame
• Poles: 3
• Mounting: Bolt-On
• Typical Applications: Generator protection, industrial switchgear, power distribution systems

Important Note

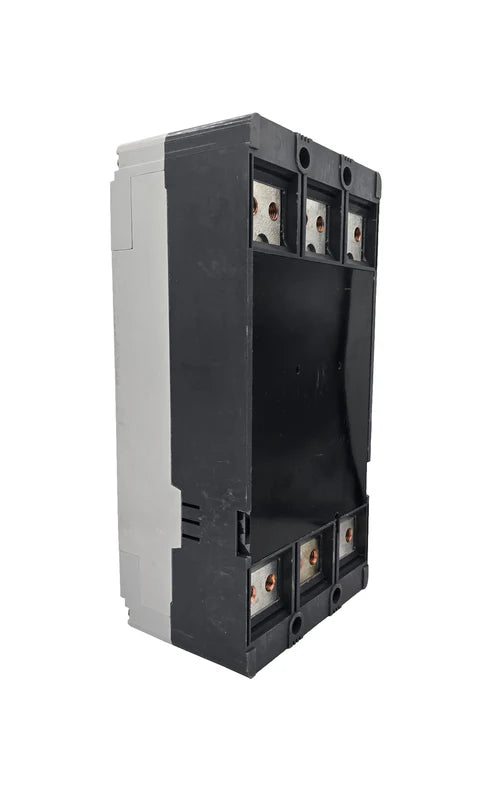

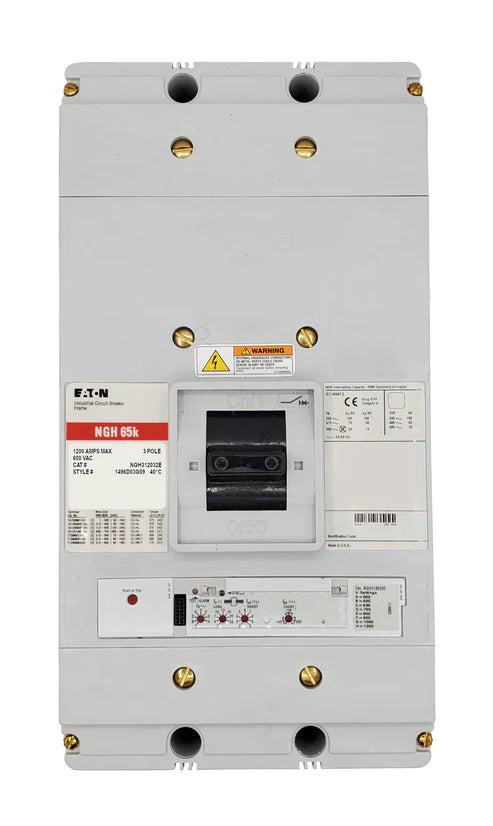

This product image represents a base model for identification purposes only. Eaton NGH312032E breakers can be configured with accessories upon request. Please provide specific installation requirements in the order comment box during checkout to ensure proper setup and compatibility.
