Eaton Cutlear Hammer NGH312038E 1200A 3P Electronic Molded Case Circuit Breaker – Bolt-On – 600VAC

The Eaton NGH312038E is a Series G NG-frame electronic molded case circuit breaker designed for industrial and generator protection. It features a Digitrip 310 RMS ALSI trip unit with Maintenance Mode, providing long-time, short-time, and instantaneous protection with enhanced maintenance capabilities. Rated at 1200A at 40°C and 80% rated, it supports voltages up to 600VAC with high interrupting capacities. This model comes without terminals, allowing flexible installation for customized applications.

Product Specifications

• Manufacturer: Eaton / Cutler Hammer
• Series: Series G
• Frame Type: NG
• Breaker Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip 310 RMS ALSI with Maintenance Mode
• Amperage: 1200A at 40°C
• Poles: 3
• Mounting Type: Bolt-On
• Standard Lug Type: Without Terminals Standard
• Rated: 80%

Technical Specifications

• ALSI electronic trip unit with Maintenance Mode for safe service
• Adjustable long-time, short-time, and instantaneous protection
• Suitable for industrial and generator applications
• Supports accessory installation at no additional cost
• One-year manufacturer warranty

Voltage and Ratings

• Voltage: 480–600VAC
• Frequency: 50/60 Hz
• Interrupting Ratings: 100 kAIC @ 240VAC, 65 kAIC @ 480VAC, 35 kAIC @ 600VAC
• Rated Current: 1200A at 40°C

Product Data

• Series: NG Frame
• Poles: 3
• Mounting: Bolt-On
• Typical Applications: Generator protection, industrial switchgear, power distribution systems

Important Note

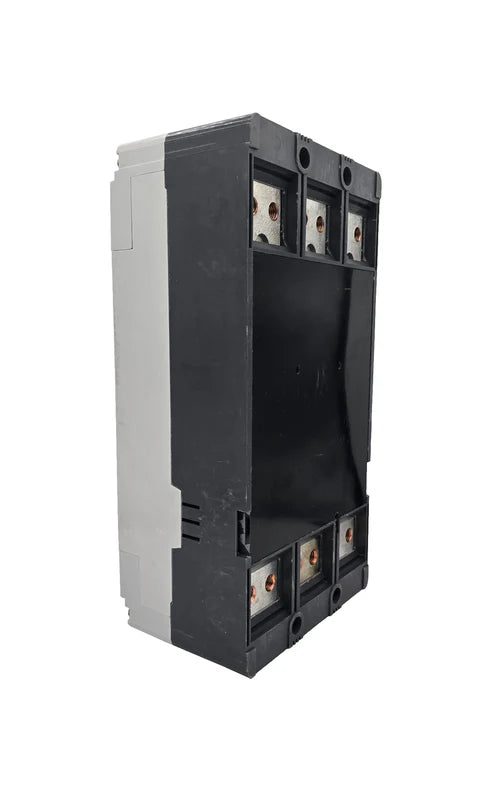

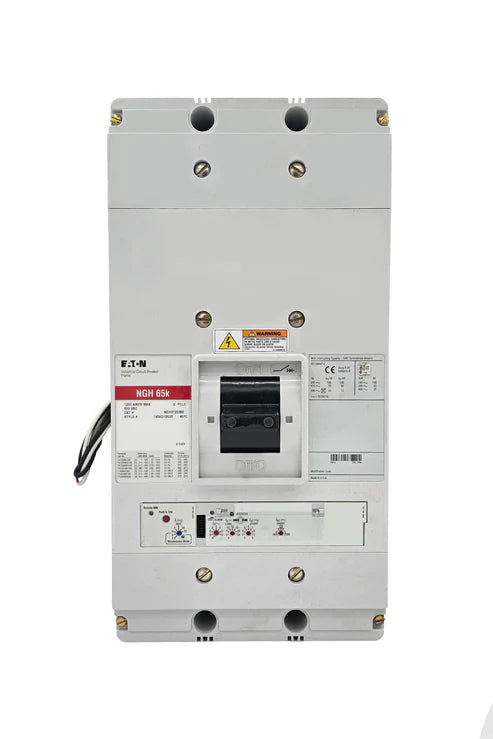

This product image represents a base model for identification purposes only. Eaton NGH312038E breakers can be configured with accessories upon request. Please provide all necessary instructions in the order comment box during checkout to ensure proper installation and compatibility.
