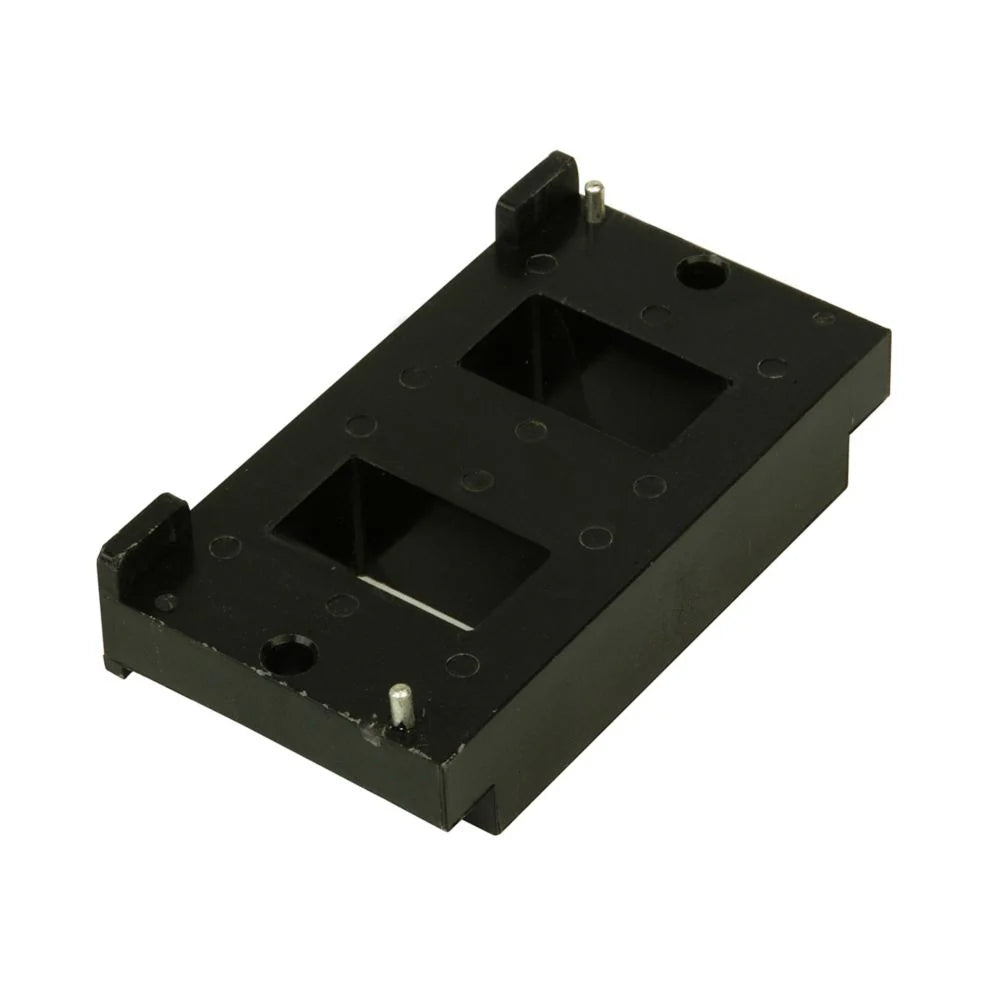

The Eaton Cutler-Hammer 505C633G34 is an A200 Series replacement AC magnetic coil designed for dependable operation in industrial contactor and lighting contactor applications. Rated for 24V at 60 Hz, this coil is compatible with Model J contactors in Sizes 3–4 and supports both 2-pole and 3-pole configurations. It is also suitable for A202 electrically held lighting contactors rated at 100A and 200A, providing reliable electromagnetic performance and efficient contactor operation.
Voltage and Rating
- Coil Voltage: 24V AC
- Frequency Rating: 60 Hz
- Contactor Sizes: Sizes 3–4
- Pole Configuration: 2-Pole / 3-Pole
Key Specifications
- Manufacturer: Eaton Cutler-Hammer
- Part Number: 505C633G34
- Product Type: Magnetic Coil
- Family: A200 Series
- Type: 505
- Compatible Models: Model J Contactors
- Application Compatibility: A202 Electrically Held Lighting Contactors
- Supported Ratings: 100A and 200A
- Standards: CSA Approved
Physical Details
- Dimensions (HxWxD): 1.22 in x 2.552 in x 4.264 in
- Weight: 0.95 lb
Product Data
- Category: Coils
- Application: Replacement AC coil for industrial contactors and lighting contactors
- Function: Electromagnetic actuation for contactor operation
