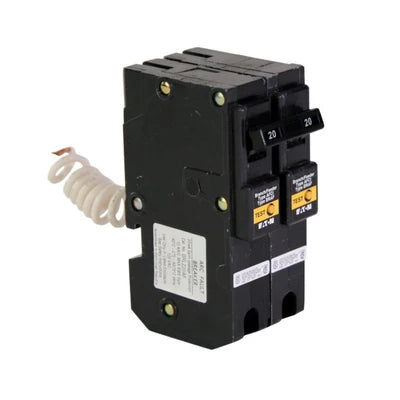

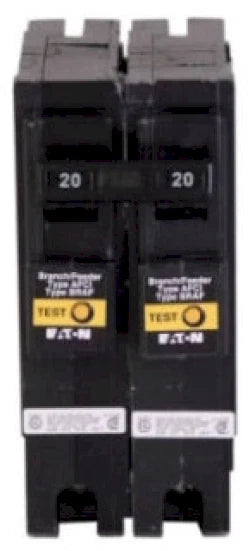

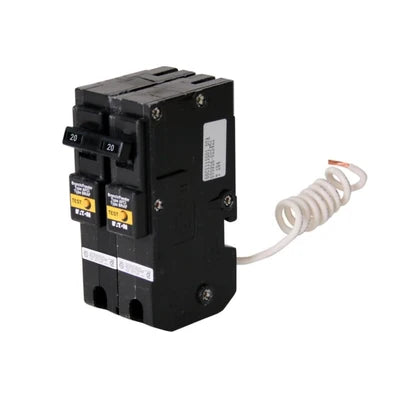

Eaton Cutler Hammer BRL220AF Arc Fault Circuit Breaker – 20A – 2 Pole – 120/240V AC – 10kA – Plug-In – BR Series

The Cutler Hammer BRL220AF is a 20A, 2-pole, 120/240V AC arc fault circuit interrupter (AFCI) from the Cutler Hammer BR Series. It is designed for plug-in mounting in compatible Type BR loadcenters and provides arc fault protection for residential electrical applications.

The BRL220AF features a thermal-magnetic trip unit with long-time and instantaneous trip functions, a common-trip mechanism, and a 10kA interrupting rating. It supports copper or aluminum conductors from 14 to 4 AWG and is designed to provide reliable circuit interruption and enhanced electrical safety.

Specifications

• Part Number / MPN: BRL220AF
• Manufacturer: Cutler Hammer
• Brand: Cutler Hammer
• Product Type: Molded Case Circuit Breaker
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family / Series: BR Series
• Type: BRL
• Rated Current: 20A
• Voltage Rating: 120/240V AC
• Phase: 1 Phase
• Poles: 2 Pole
• Interrupting Rating (AIC): 10kA @ 120V
• Connection / Mounting: Plug-In
• Trip Type: Common Trip
• Trip Functions: Long-Time and Instantaneous Trip
• Protection: Thermal Magnetic
• Breaker Type: Arc Fault Circuit Interrupter (AFCI)
• Temperature Rating: -13°F to 158°F (-25°C to 70°C)
• Wire Size: 14 to 4 AWG, Copper/Aluminum
• Dimensions: 6 in × 3 in × 4.5 in
• UPC: 786685233376
• GTIN: 00786685233376
• Weight: 1.45 lb
• Warranty: 10 Years

Part Numbers & Identification

• MPN / Part Number: BRL220AF
• Type: BRL
• Series / Frame: BR Series
• UPC: 786685233376
• GTIN: 00786685233376
• Product Identification: Cutler Hammer BRL220AF, 20A, 2-Pole, 120/240V AC, 10kA, Plug-In AFCI Circuit Breaker

Compatibility

The Cutler Hammer BRL220AF is designed for use with compatible Type BR loadcenters requiring a 20A, 2-pole, 120/240V AC plug-in circuit breaker with AFCI protection.

The common-trip 2-pole configuration is suitable for compatible 120/240V applications. The breaker supports 14 to 4 AWG copper or aluminum conductors. Verify the specific loadcenter model, breaker compatibility, conductor requirements, and electrical ratings before installation.

Certifications

The provided product information identifies the following standards and certifications:

• UL Certified

• UL 1699

• Federal Specification W-C375
